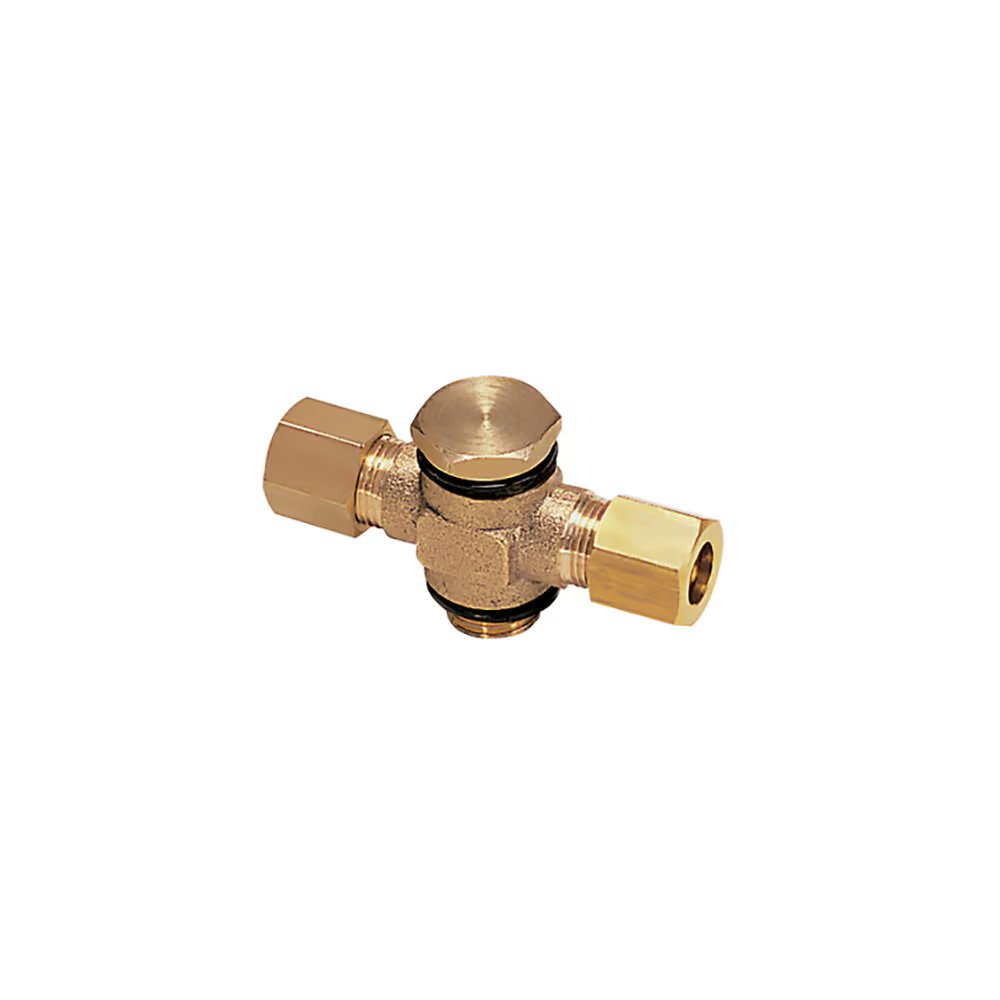

0119 08 13 by Parker | Legris Stud Fitting w/ Captive Sealing Washer | 8 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex (F) | 14 mm Hex (F1) | 56 mm Length | Double Banjo | Brass | Pack of 10

0119 08 13 by Parker | Legris Stud Fitting w/ Captive Sealing Washer | 8 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex (F) | 14 mm Hex (F1) | 56 mm Length | Double Banjo | Brass | Pack of 10

Sale price$362.23

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0119 Double Banjo with Captive Sealing Washer, Male BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $340.50
15–29 $307.90
30+ $271.67
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0119 Series
Shape:

Banjo

Ends Configuration:
  • 8mm Tube Compression
  • 1/4in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C F F1 H H1 L/2 L1 N Kg
0119 08 13 8 mm 1/4" 17 mm 14 mm 25 mm 10 mm 28 mm 15.5 mm 21 mm .075 Kg

Thread with pre-assembled washer
Sealing washers 0602 can be found in the sub-chapter “Adaptors and Manifolds”.
