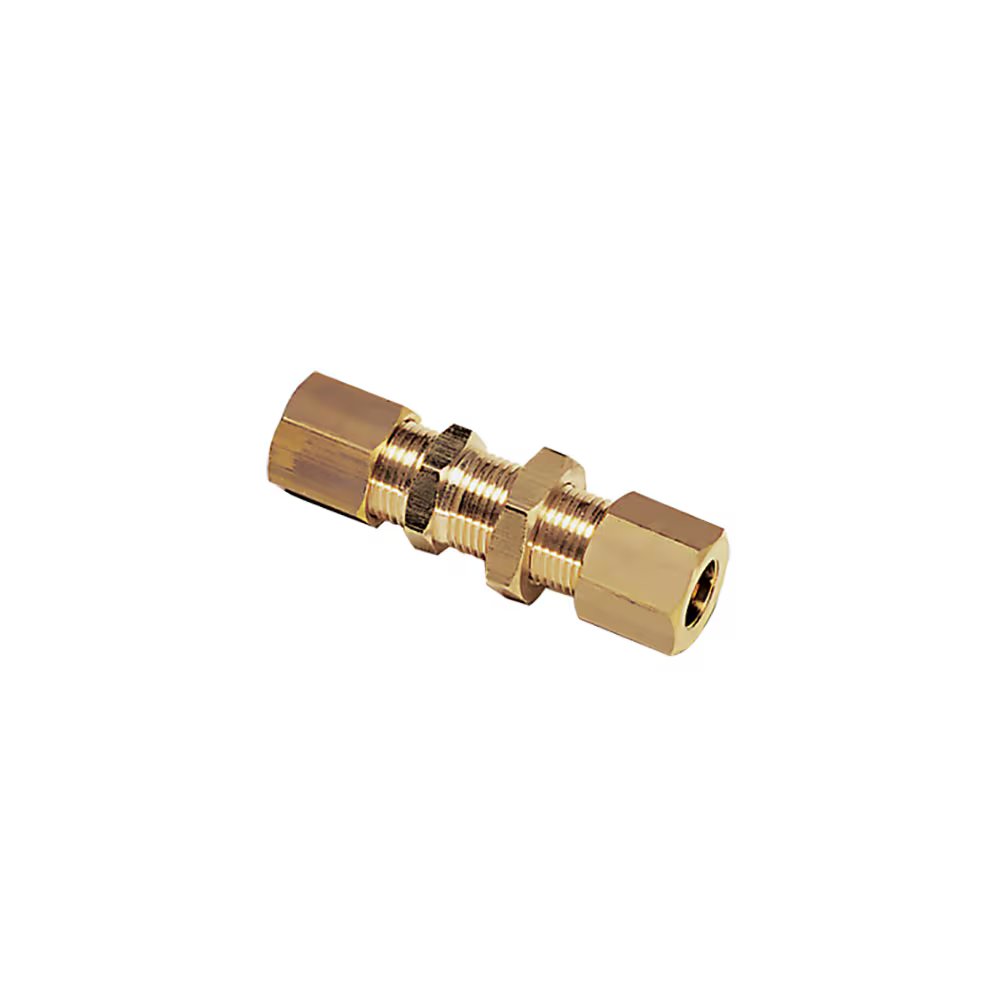

0116 18 00 by Parker | Legris Bulkhead Connector | 18mm Tube Size | 27mm Hex (F) | 30mm Hex (F1) | 30mm Hex (F2) | 70mm Length | Straight | Brass | Pack of 5

0116 18 00 by Parker | Legris Bulkhead Connector | 18mm Tube Size | 27mm Hex (F) | 30mm Hex (F1) | 30mm Hex (F2) | 70mm Length | Straight | Brass | Pack of 5

Sale price$227.28

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0116 Equal Bulkhead Connector

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $213.64
20–59 $193.19
60+ $170.46
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0116 Series
Shape:

Straight

Ends Configuration:
  • 18mm Tube Compression
  • 18mm Tube Compression
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD F F1 F2 L (max) L1 (max) L2 L3 ØT (min) Kg
0116 04 00 4 mm 10 mm 10 mm 13 mm 27 mm 17 mm 7 mm 17 mm 8.3 mm .024 Kg
0116 05 00 5 mm 13 mm 12 mm 14 mm 28 mm 28 mm 7.5 mm 17.5 mm 10.3 mm .035 Kg
0116 06 00 6 mm 13 mm 13 mm 14 mm 28 mm 19 mm 7.5 mm 17.5 mm 10.3 mm .037 Kg
0116 08 00 8 mm 14 mm 14 mm 17 mm 29 mm 20 mm 7 mm 17 mm 12.3 mm .045 Kg
0116 10 00 10 mm 19 mm 19 mm 22 mm 33 mm 25 mm 9 mm 19 mm 16.5 mm .100 Kg
0116 12 00 12 mm 22 mm 22 mm 22 mm 33 mm 25 mm 9 mm 19 mm 18.5 mm .121 Kg
0116 14 00 14 mm 24 mm 24 mm 24 mm 35 mm 25 mm 8 mm 18 mm 20.5 mm .143 Kg
0116 15 00 15 mm 24 mm 24 mm 24 mm 35 mm 25 mm 8 mm 18 mm 20.5 mm .134 Kg
0116 16 00 16 mm 27 mm 27 mm 27 mm 36 mm 28 mm 9.5 mm 19.5 mm 22.5 mm .192 Kg
0116 18 00 18 mm 27 mm 30 mm 30 mm 40 mm 30 mm 10.5 mm 20.5 mm 24.5 mm .238 Kg
0116 22 00 22 mm 36 mm 36 mm 36 mm 42 mm 32 mm 11 mm 21 mm 30.5 mm .379 Kg
