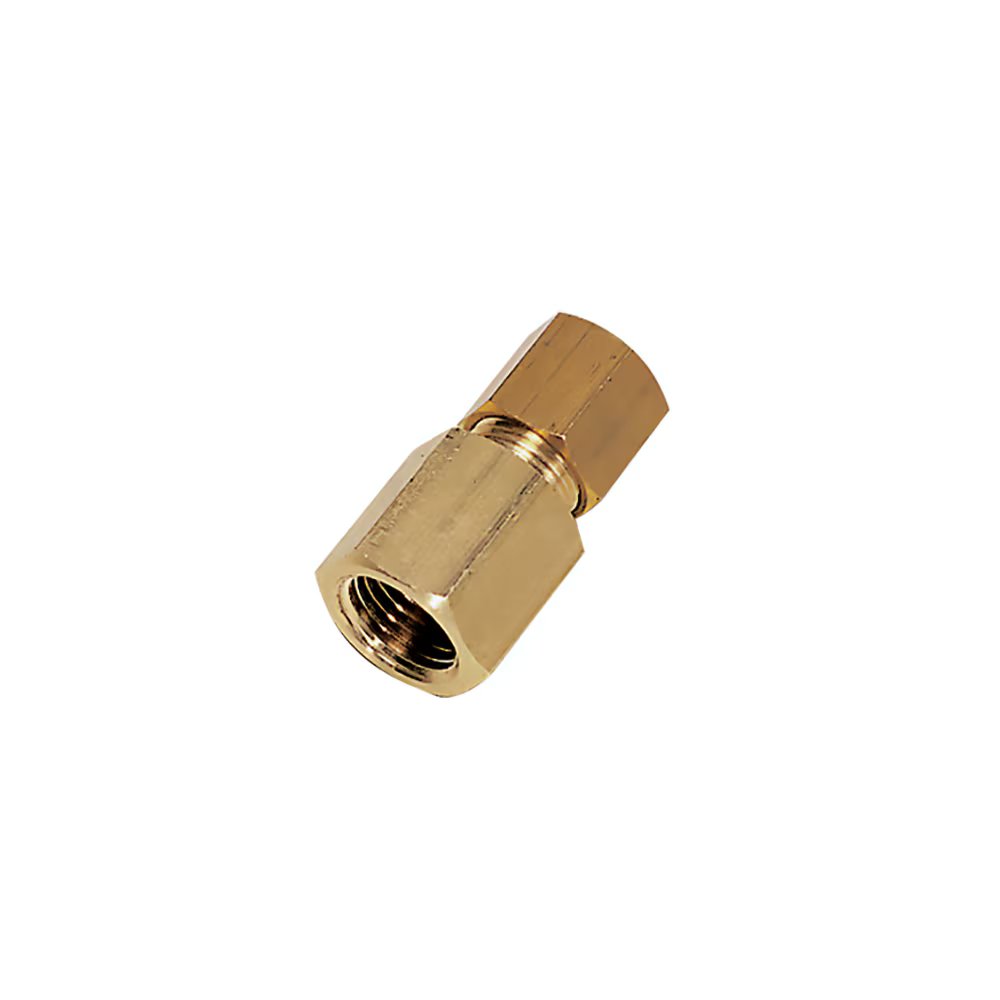

0114 20 21 by Parker | Legris Stud Fitting | 20 mm Tube Size x 1/2" Female BSPP Thread | 30 mm Hex (F) | 32 mm Hex (F1) | 44.5 mm Length | Straight | Brass | Pack of 5

0114 20 21 by Parker | Legris Stud Fitting | 20 mm Tube Size x 1/2" Female BSPP Thread | 30 mm Hex (F) | 32 mm Hex (F1) | 44.5 mm Length | Straight | Brass | Pack of 5

Sale price$170.57

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0114 Stud Fitting, Female BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $160.34
20–59 $144.98
60+ $127.93
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0114 Series
Shape:

Straight

Ends Configuration:
  • 20mm Tube Compression
  • 1/2in Female BSPP
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C E F F1 H (max) H1 Kg
0114 04 10 4 mm 1/8" 9.5 mm 14 mm 10 mm 26 mm 16.5 mm .020 Kg
0114 04 13 4 mm 1/4" 13.5 mm 17 mm 10 mm 30 mm 20.5 mm .030 Kg
0114 05 10 5 mm 1/8" 9.5 mm 14 mm 12 mm 28 mm 17 mm .024 Kg
0114 06 10 6 mm 1/8" 9.5 mm 14 mm 13 mm 28 mm 27 mm .025 Kg
0114 06 13 6 mm 1/4" 13.5 mm 17 mm 13 mm 32 mm 21 mm .034 Kg
0114 06 17 6 mm 3/8" 14 mm 22 mm 13 mm 32 mm 21.5 mm .051 Kg
0114 08 10 8 mm 1/8" 9.5 mm 14 mm 14 mm 29 mm 16.5 mm .026 Kg
0114 08 13 8 mm 1/4" 13.5 mm 17 mm 14 mm 33 mm 20.5 mm .035 Kg
0114 08 17 8 mm 3/8" 14 mm 22 mm 14 mm 34 mm 21 mm .052 Kg
0114 10 13 10 mm 1/4" 13.5 mm 17 mm 19 mm 37 mm 21.5 mm .052 Kg
0114 10 17 10 mm 3/8" 14 mm 22 mm 19 mm 37 mm 22 mm .069 Kg
0114 10 21 10 mm 1/2" 18.5 mm 27 mm 19 mm 42 mm 26.5 mm .099 Kg
0114 12 13 12 mm 1/4" 13.5 mm 19 mm 22 mm 36 mm 20.5 mm .068 Kg
0114 12 17 12 mm 3/8" 14 mm 22 mm 22 mm 37 mm 22 mm .078 Kg
0114 12 21 12 mm 1/2" 18.5 mm 27 mm 22 mm 42 mm 26.5 mm .109 Kg
0114 14 13 14 mm 1/4" 13.5 mm 22 mm 24 mm 36 mm 18.5 mm .084 Kg
0114 14 17 14 mm 3/8" 14 mm 22 mm 24 mm 38 mm 21 mm .081 Kg
0114 14 21 14 mm 1/2" 18.5 mm 27 mm 24 mm 43 mm 25.5 mm .111 Kg
0114 16 17 16 mm 3/8" 14 mm 24 mm 27 mm 38 mm 20.5 mm .108 Kg
0114 16 21 16 mm 1/2" 18.5 mm 27 mm 27 mm 44 mm 26 mm .129 Kg
0114 18 21 18 mm 1/2" 18.5 mm 27 mm 30 mm 45 mm 26 mm .146 Kg
0114 18 27 18 mm 3/4" 19.5 mm 32 mm 30 mm 46 mm 27 mm .165 Kg
0114 20 21 20 mm 1/2" 18.5 mm 30 mm 32 mm 44.5 mm 24 mm .173 Kg
0114 20 27 20 mm 3/4" 19.5 mm 32 mm 32 mm 47 mm 26.5 mm .174 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
