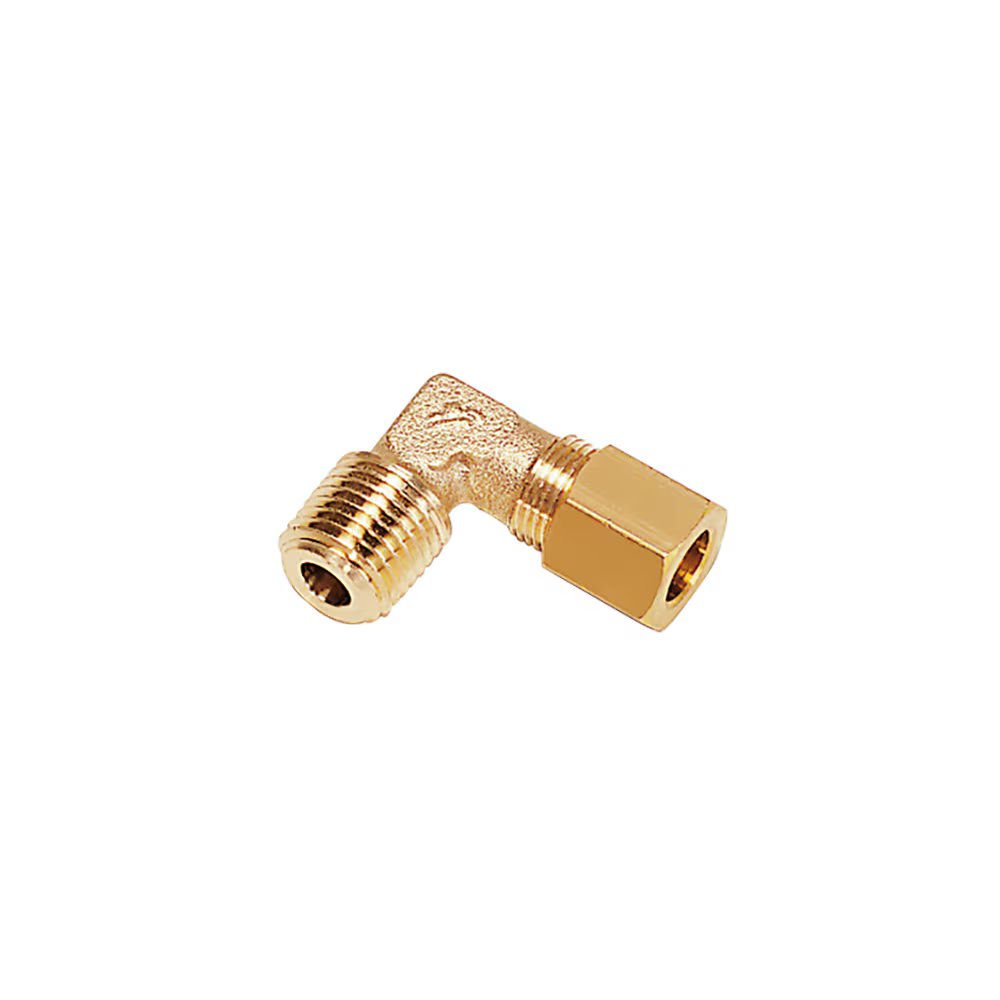

0109 12 21 by Parker | Legris Stud Fitting | 12 mm Tube Size x 1/2" Male BSPT Thread | 22 mm Hex | 90° Elbow | Brass | Pack of 10

0109 12 21 by Parker | Legris Stud Fitting | 12 mm Tube Size x 1/2" Male BSPT Thread | 22 mm Hex | 90° Elbow | Brass | Pack of 10

Sale price$242.28

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0109 Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $227.74
20–59 $205.94
60+ $181.71
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0109 Series
Shape:

90° Elbow

Ends Configuration:
  • 12mm Tube Compression
  • 1/2in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
J
Part Number ØD C F HL (max) L1 Kg
0109 04 10 4 mm 1/8" 10 mm 17 mm 8 mm 19 mm 9.5 mm .016 Kg
0109 04 13 4 mm 1/4" 10 mm 20 mm 10 mm 19 mm 11 mm .025 Kg
0109 05 10 5 mm 1/8" 12 mm 17.5 mm 8 mm 21 mm 11 mm .019 Kg
0109 05 13 5 mm 1/4" 12 mm 21.5 mm 10 mm 22 mm 12 mm .029 Kg
0109 06 10 6 mm 1/8" 13 mm 18 mm 8 mm 22 mm 11 mm .021 Kg
0109 06 13 6 mm 1/4" 13 mm 21.5 mm 10 mm 22 mm 12 mm .030 Kg
0109 08 10 8 mm 1/8" 14 mm 18.5 mm 10 mm 28 mm 15 mm .028 Kg
0109 08 13 8 mm 1/4" 14 mm 22 mm 10 mm 28 mm 15 mm .033 Kg
0109 08 17 8 mm 3/8" 14 mm 24 mm 12 mm 28 mm 15 mm .044 Kg
0109 10 13 10 mm 1/4" 19 mm 25 mm 12 mm 30 mm 14.5 mm .053 Kg
0109 10 17 10 mm 3/8" 19 mm 25.5 mm 12 mm 30 mm 14.5 mm .059 Kg
0109 10 21 10 mm 1/2" 19 mm 32 mm 19 mm 36 mm 21 mm .108 Kg
0109 12 13 12 mm 1/4" 22 mm 26 mm 15 mm 30 mm 15 mm .073 Kg
0109 12 17 12 mm 3/8" 22 mm 27 mm 15 mm 30 mm 15 mm .077 Kg
0109 12 21 12 mm 1/2" 22 mm 32 mm 19 mm 36 mm 21 mm .114 Kg
0109 14 17 14 mm 3/8" 24 mm 30 mm 19 mm 35 mm 18 mm .104 Kg
0109 14 21 14 mm 1/2" 24 mm 32 mm 19 mm 35 mm 18 mm .112 Kg
0109 15 17 15 mm 3/8" 24 mm 30 mm 19 mm 35 mm 18 mm .101 Kg
0109 15 21 15 mm 1/2" 24 mm 32 mm 19 mm 35 mm 18 mm .107 Kg
0109 16 17 16 mm 3/8" 27 mm 30 mm 19 mm 39 mm 21 mm .122 Kg
0109 16 21 16 mm 1/2" 27 mm 33.5 mm 19 mm 39 mm 21 mm .132 Kg
0109 16 27 16 mm 3/4" 27 mm 36.5 mm 23 mm 41 mm 23 mm .189 Kg
0109 18 21 18 mm 1/2" 30 mm 35.5 mm 23 mm 41 mm 21.5 mm .181 Kg
0109 18 27 18 mm 3/4" 30 mm 36.5 mm 23 mm 41 mm 21.5 mm .197 Kg
0109 20 21 20 mm 1/2" 32 mm 36.5 mm 23 mm 42 mm 21.5 mm .186 Kg
0109 22 27 22 mm 3/4" 36 mm 40 mm 27 mm 50 mm 30 mm .293 Kg
0109 25 34 25 mm 1" 41 mm 44 mm 27 mm 54 mm 30 mm .370 Kg
0109 28 34 28 mm 1" 42 mm 48 mm 32 mm 54 mm 30 mm .378 Kg

Metric taper threads or Briggs (NPT threads) are available by special order, subject to minimum quantities.
