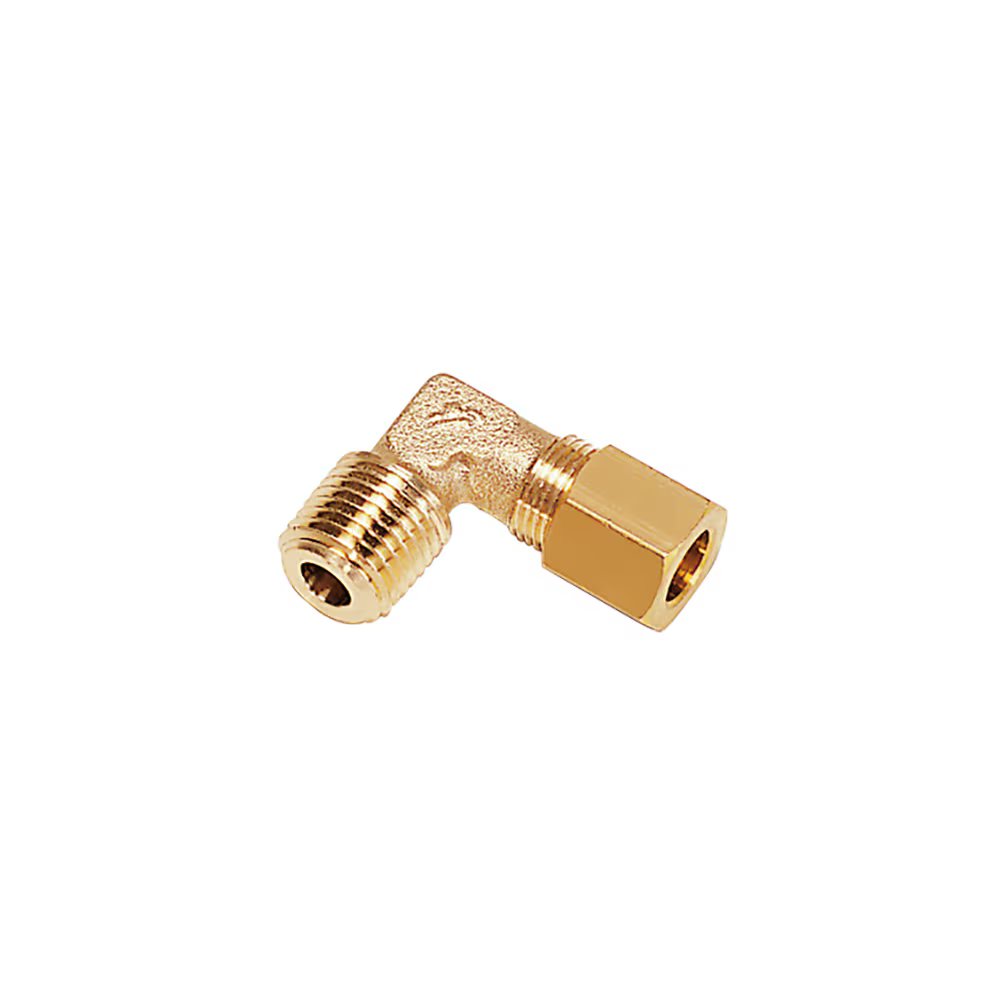

0109 06 11 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/8" Male NPT Thread | 13 mm Hex | 90° Elbow | Brass | Pack of 10

0109 06 11 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/8" Male NPT Thread | 13 mm Hex | 90° Elbow | Brass | Pack of 10

Sale price$122.66

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0109 Stud Elbow, Male NPT Thread

Package Quantity: 10 Units

Quantity Price Each
15–29 $116.53
30–59 $110.39
60+ $98.13
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0109 Series
Shape:

90° Elbow

Ends Configuration:
  • 6mm Tube Compression
  • 1/8in Male NPT
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
J
Part Number ØD C F HL (max) L1 Kg
0109 06 11 6 mm 1/8" 13 mm 18 mm 8 mm 22 mm 11 mm .021 Kg
0109 06 14 6 mm 1/4" 13 mm 21.5 mm 10 mm 22 mm 12 mm .030 Kg
0109 08 11 8 mm 1/8" 14 mm 18.5 mm 10 mm 28 mm 15 mm .027 Kg
0109 08 14 8 mm 1/4" 14 mm 22 mm 10 mm 28 mm 15 mm .032 Kg
0109 10 14 10 mm 1/4" 19 mm 25 mm 12 mm 30 mm 14.5 mm .054 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
