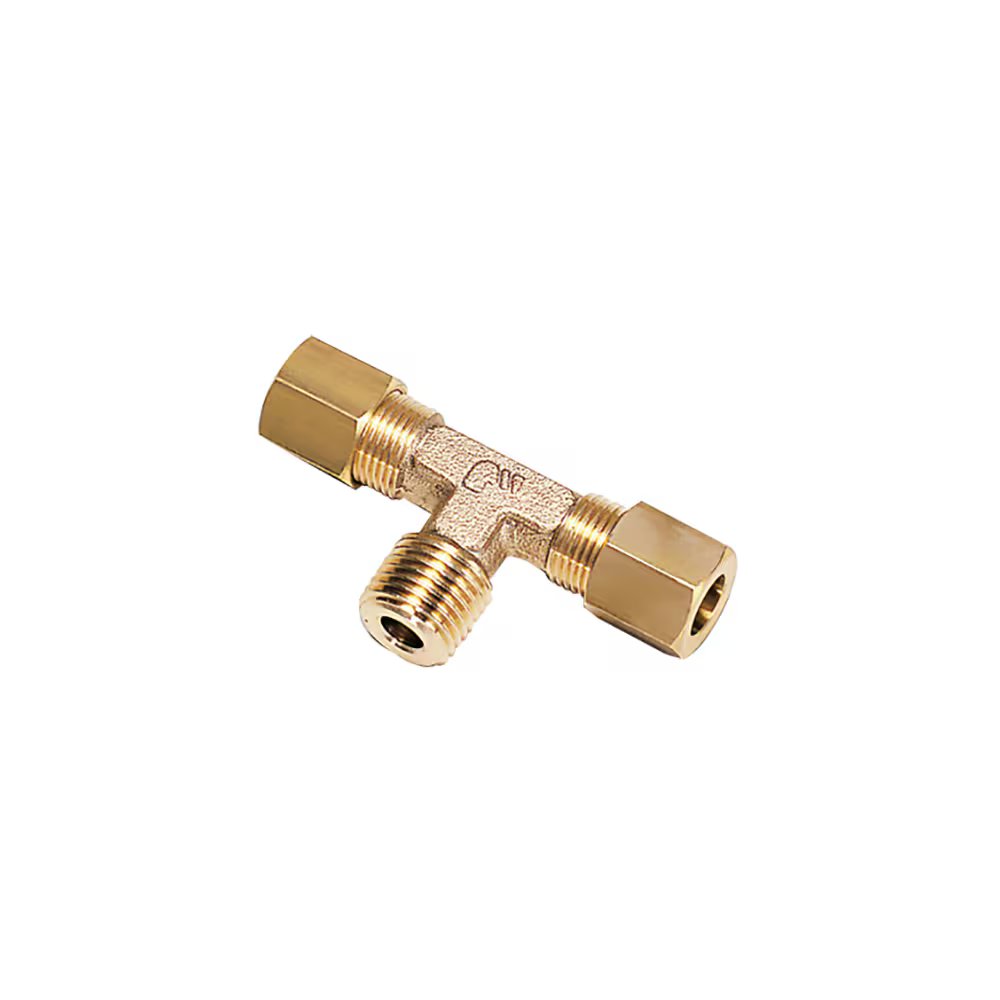

0108 14 21 by Parker | Legris Stud Fitting | 14 mm Tube Size x 1/2" Male BSPT Thread | 24 mm Hex | 70 mm Length | Tee | Brass | Pack of 5

0108 14 21 by Parker | Legris Stud Fitting | 14 mm Tube Size x 1/2" Male BSPT Thread | 24 mm Hex | 70 mm Length | Tee | Brass | Pack of 5

Sale price$168.85

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0108 Stud Branch Tee, Male BSPT Thread

Package Quantity: 5 Units

Quantity Price Each
15–29 $160.41
30–59 $151.97
60+ $135.08
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0108 Series
Shape:

Tee

Ends Configuration:
  • 14mm Tube Compression
  • 14mm Tube Compression
  • 1/2in Male BSPT
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C F H J L/2 L1 Kg
0108 04 10 4 mm 1/8" 10 mm 17 mm 8 mm 19 mm 9.5 mm .025 Kg
0108 06 10 6 mm 1/8" 13 mm 18 mm 8 mm 22 mm 11 mm .033 Kg
0108 06 13 6 mm 1/4" 13 mm 21.5 mm 10 mm 27 mm 16 mm .047 Kg
0108 08 10 8 mm 1/8" 14 mm 18.5 mm 10 mm 28 mm 15 mm .045 Kg
0108 08 13 8 mm 3/8" 14 mm 24 mm 12 mm 28 mm 15 mm .062 Kg
0108 08 17 4 mm 1/8" 10 mm 17 mm 8 mm 19 mm 9 mm .025 Kg
0108 10 13 10 mm 3/8" 19 mm 25 mm 12 mm 30 mm 14.5 mm .085 Kg
0108 10 17 10 mm 3/8" 19 mm 25.5 mm 12 mm 30 mm 14.5 mm .092 Kg
0108 12 13 12 mm 1/4" 22 mm 26 mm 15 mm 30 mm 15 mm .114 Kg
0108 12 17 12 mm 3/8" 22 mm 27 mm 15 mm 30 mm 15 mm .118 Kg
0108 14 21 14 mm 1/2" 24 mm 32 mm 19 mm 35 mm 18 mm .169 Kg
0108 16 17 16 mm 3/8" 27 mm 30 mm 19 mm 39 mm 21 mm .192 Kg
0108 16 21 16 mm 1/2" 27 mm 33.5 mm 19 mm 39 mm 21 mm .206 Kg
0108 20 27 20 mm 3/4" 32 mm 38 mm 23 mm 42 mm 21.5 mm .301 Kg

Metric taper threads or Briggs (NPT threads) are available by special order, subject to minimum quantities.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
