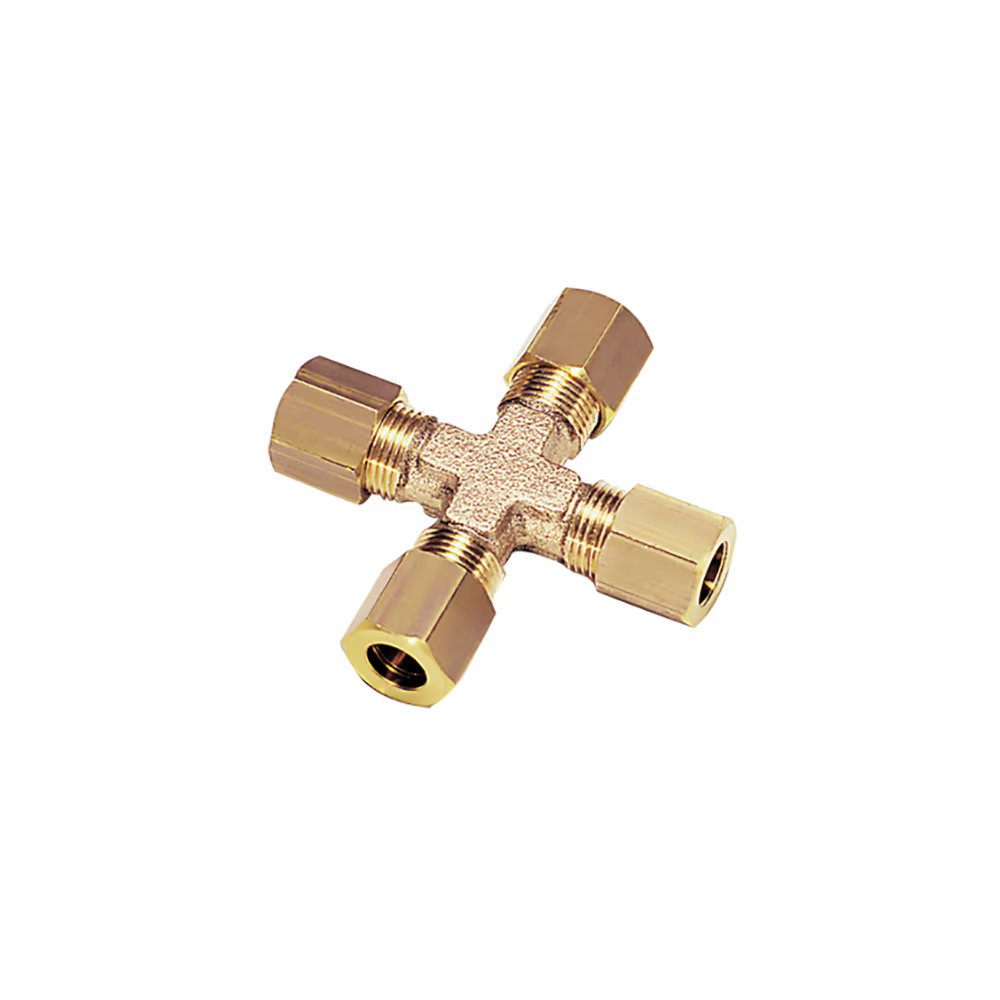

0107 12 00 by Parker | Legris Tube-to-Tube | 12 mm Tube Size | 22 mm Hex | 70 mm Length | Cross | Brass | Pack of 5

0107 12 00 by Parker | Legris Tube-to-Tube | 12 mm Tube Size | 22 mm Hex | 70 mm Length | Cross | Brass | Pack of 5

Sale price$247.93

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0107 Equal Cross

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $233.05
20–59 $210.74
60+ $185.95
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0107 Series
Shape:

Cross

Ends Configuration:
  • 12mm Tube Compression
  • 12mm Tube Compression
  • 12mm Tube Compression
  • 12mm Tube Compression
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD F H J L/2 Kg
0107 08 00 8 mm 14 mm 15 mm 11 mm 28 mm .073 Kg
0107 10 00 10 mm 19 mm 14.5 mm 14 mm 30 mm .141 Kg
0107 12 00 12 mm 22 mm 15 mm 15 mm 35 mm ..231 Kg
