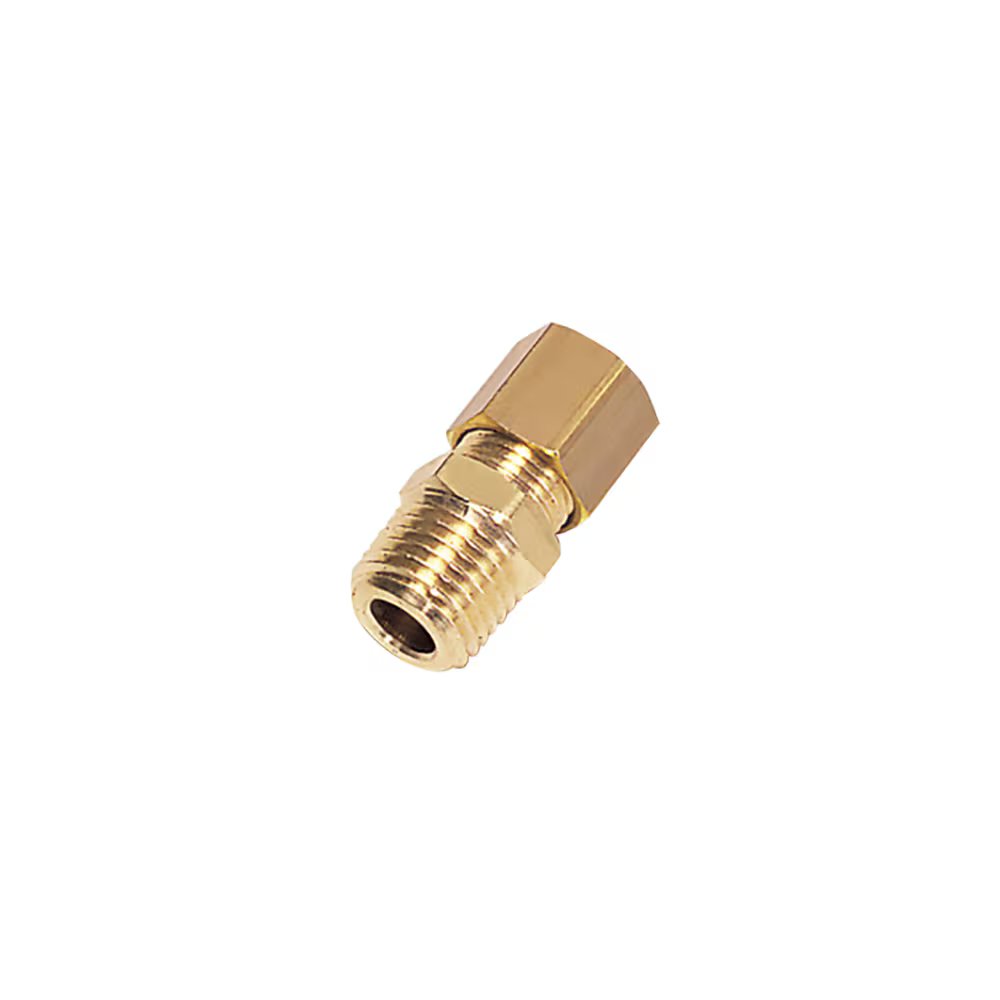

0105 22 34 by Parker | Legris Stud Fitting | 22 mm Tube Size x 1" Male BSPT Thread | 36 mm Hex (F) | 36 mm Hex (F1) | Straight | Brass | Pack of 5

0105 22 34 by Parker | Legris Stud Fitting | 22 mm Tube Size x 1" Male BSPT Thread | 36 mm Hex (F) | 36 mm Hex (F1) | Straight | Brass | Pack of 5

Sale price$195.24

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0105 Stud Fitting, Male BSPT Thread

Package Quantity: 5 Units

Quantity Price Each
15–29 $185.48
30–59 $175.72
60+ $156.19
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0105 Series
Shape:

Straight

Ends Configuration:
  • 22mm Tube Compression
  • 1in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C F F1 H (max) H1 Kg
0105 04 10 4 mm 1/8" 10 mm 10 mm 17 mm 7 mm .012 Kg
0105 05 10 5 mm 1/8" 11 mm 12 mm 17.5 mm 7.5 mm .016 Kg
0105 05 13 5 mm 1/4" 14 mm 12 mm 17.5 mm 7.5 mm .023 Kg
0105 06 10 6 mm 1/8" 11 mm 13 mm 18 mm 7.5 mm .017 Kg
0105 06 13 6 mm 1/4" 14 mm 13 mm 18 mm 7.5 mm .024 Kg
0105 06 17 6 mm 3/8" 17 mm 13 mm 18 mm 8.5 mm .030 Kg
0105 08 10 8 mm 1/8" 13 mm 14 mm 19.5 mm 7 mm .021 Kg
0105 08 13 8 mm 1/4" 14 mm 14 mm 19.5 mm 7 mm .026 Kg
0105 08 17 8 mm 3/8" 17 mm 14 mm 20.5 mm 8 mm .032 Kg
0105 10 10 10 mm 1/8" 17 mm 19 mm 24 mm 9 mm .043 Kg
0105 10 13 10 mm 1/4" 17 mm 19 mm 24 mm 9 mm .047 Kg
0105 10 17 10 mm 3/8" 17 mm 19 mm 24 mm 9 mm .048 Kg
0105 10 21 10 mm 1/2" 22 mm 19 mm 25 mm 10 mm .066 Kg
0105 12 13 12 mm 1/4" 19 mm 22 mm 24 mm 9 mm .059 Kg
0105 12 17 12 mm 3/8" 19 mm 22 mm 24 mm 9 mm .060 Kg
0105 12 21 12 mm 1/2" 22 mm 22 mm 25 mm 10 mm .076 Kg
0105 14 13 14 mm 1/4" 22 mm 24 mm 25 mm 8 mm .067 Kg
0105 14 17 14 mm 3/8" 22 mm 24 mm 25 mm 8 mm .068 Kg
0105 14 21 14 mm 1/2" 22 mm 24 mm 26 mm 9 mm .079 Kg
0105 14 27 14 mm 3/4" 27 mm 24 mm 27 mm 10 mm .106 Kg
0105 15 17 15 mm 3/8" 22 mm 24 mm 25 mm 8 mm .066 Kg
0105 15 21 15 mm 1/2" 22 mm 24 mm 26 mm 9 mm .076 Kg
0105 16 13 16 mm 1/4" 24 mm 27 mm 27 mm 9.5 mm .092 Kg
0105 16 17 16 mm 3/8" 24 mm 27 mm 27 mm 9.5 mm .093 Kg
0105 16 21 16 mm 1/2" 24 mm 27 mm 27 mm 9.5 mm .101 Kg
0105 16 27 18 mm 1/2" 27 mm 30 mm 30 mm 10.5 mm .128 Kg
0105 18 21 4 mm 1/8" 10 mm 10 mm 17 mm 7 mm .012 Kg
0105 18 27 18 mm 3/4" 27 mm 30 mm 30 mm 10.5 mm .140 Kg
0105 20 27 20 mm 3/4" 30 mm 32 mm 32 mm 11 mm .160 Kg
0105 22 21 22 mm 1/2" 32 mm 36 mm 33 mm 11 mm .188 Kg
0105 22 27 22 mm 3/4" 32 mm 36 mm 33 mm 11 mm .198 Kg
0105 22 34 22 mm 1" 36 mm 36 mm 33 mm 11 mm .229 Kg
0105 25 27 25 mm 3/4" 36 mm 41 mm 36 mm 11 mm .265 Kg
0105 25 34 25 mm 1" 36 mm 41 mm 36 mm 11 mm .281 Kg
0105 28 27 28 mm 3/4" 41 mm 42 mm 36 mm 11 mm .273 Kg
0105 28 34 28 mm 1" 41 mm 42 mm 36 mm 11 mm .282 Kg

Metric taper threads or Briggs (NPT threads) are available by special order, subject to minimum quantities.
