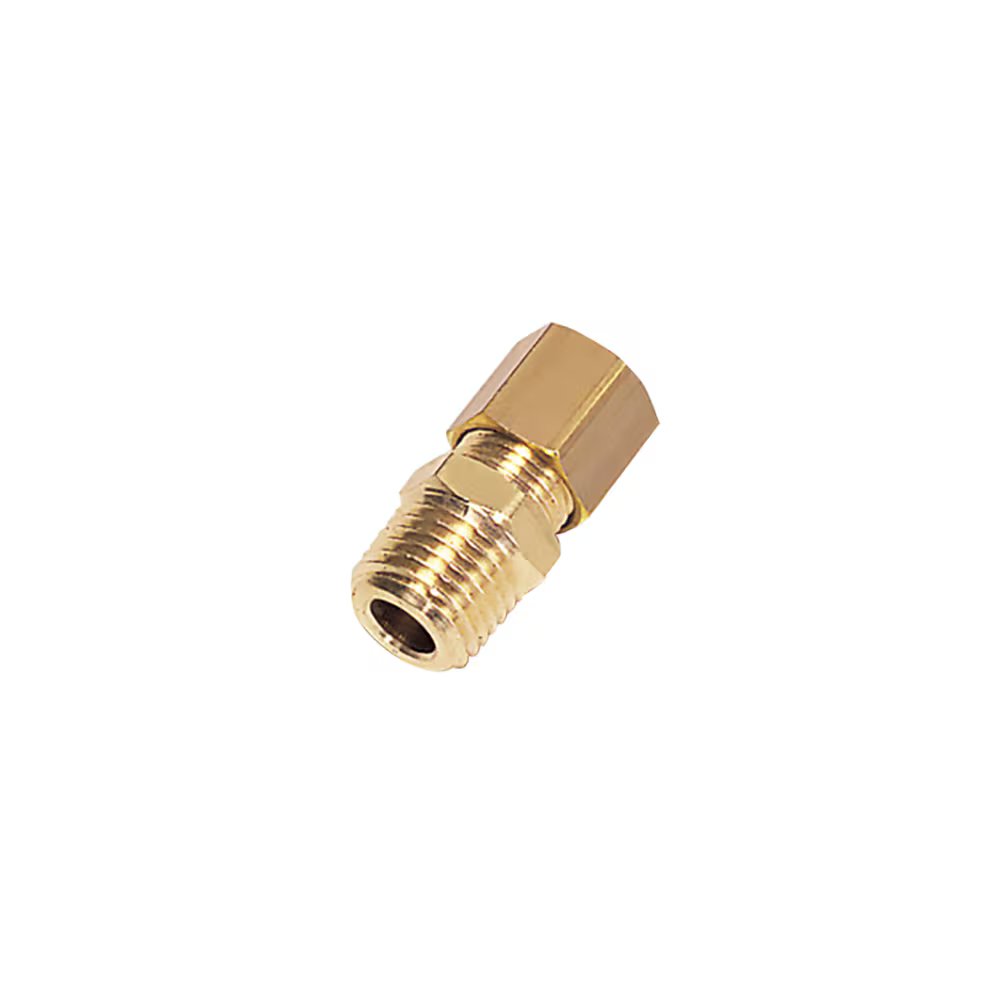

0105 08 14 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/4" Male NPT Thread | 14 mm Hex (F) | 14 mm Hex (F1) | Straight | Brass | Pack of 10

0105 08 14 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/4" Male NPT Thread | 14 mm Hex (F) | 14 mm Hex (F1) | Straight | Brass | Pack of 10

Sale price$71.06

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0105 Stud Fitting, Male NPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $66.80
40–79 $60.40
80+ $53.30
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0105 Series
Shape:

Straight

Ends Configuration:
  • 8mm Tube Compression
  • 1/4in Male NPT
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C F F1 H (max) H1 Kg
0105 06 11 6 mm 1/8" 11 mm 13 mm 18 mm 7.5 mm .018 Kg
0105 06 14 6 mm 1/4" 14 mm 13 mm 18 mm 7.5 mm .027 Kg
0105 08 11 8 mm 1/8" 13 mm 14 mm 21 mm 7 mm .021 Kg
0105 08 14 8 mm 1/4" 14 mm 14 mm 18.5 mm 7 mm .026 Kg
0105 10 14 10 mm 1/4" 17 mm 19 mm 24 mm 9 mm .047 Kg
0105 10 18 10 mm 3/8" 17 mm 19 mm 24 mm 9 mm .047 Kg
0105 10 22 10 mm 1/5" 22 mm 19 mm 25 mm 10 mm .066 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
