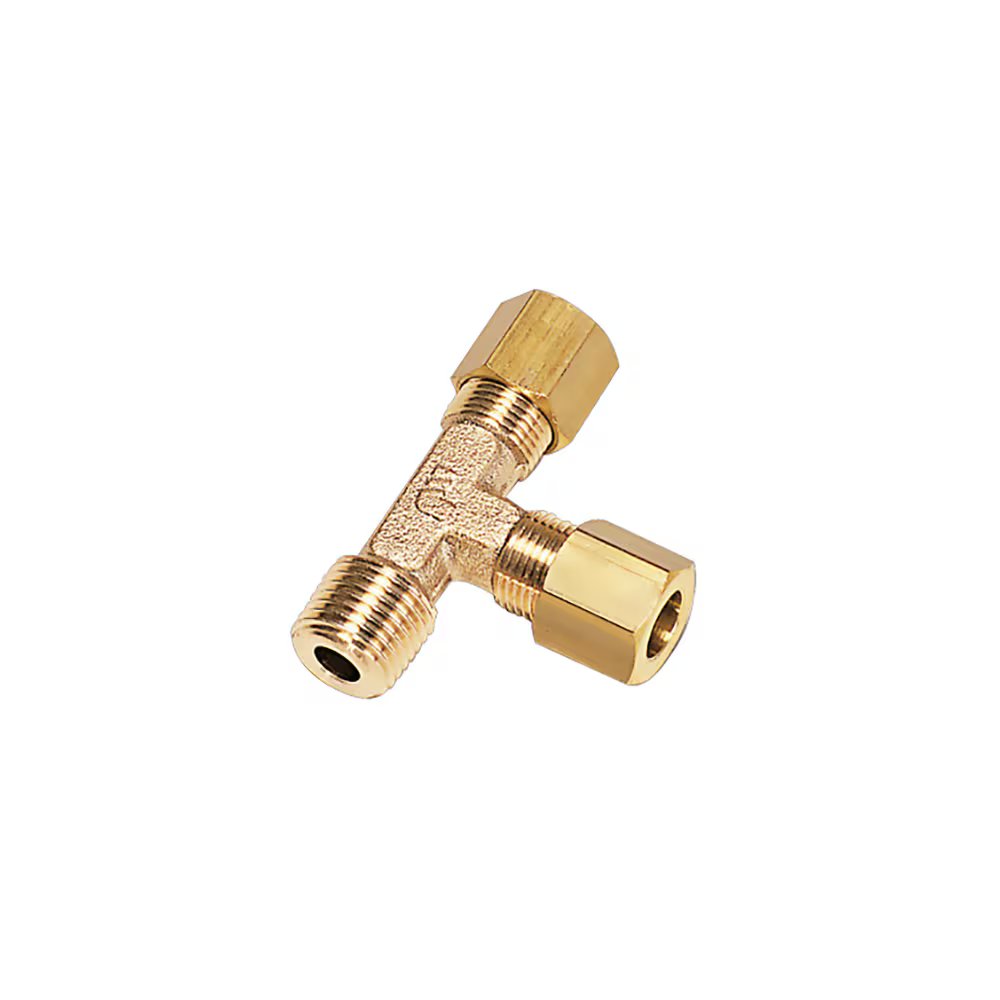

0103 06 13 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/4" Male BSPT Thread | 13 mm Hex | 48.5 mm Length | Tee | Brass | Pack of 10
Parker Fluid Connections Division

0103 06 13 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/4" Male BSPT Thread | 13 mm Hex | 48.5 mm Length | Tee | Brass | Pack of 10

Sale price$168.02

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0103 Stud Run Tee, Male BSPT Thread

Product Data:

Series:
  • 0103 Series
Shape:

Tee

Ends Configuration:
  • 6mm Tube Compression
  • 6mm Tube Compression
  • 1/4in Male BSPT
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C F H (max) H1 H2 J Kg
0103 04 10 4 mm 1/8" 10 mm 19 mm 17 mm 9.5 mm 8 mm .025 mm
0103 06 10 6 mm 1/8" 13 mm 22 mm 18 mm 11 mm 8 mm .033 mm
0103 06 13 6 mm 1/4" 13 mm 27 mm 21.5 mm 16 mm 10 mm .048 mm
0103 08 13 8 mm 1/4" 14 mm 28 mm 22 mm 15 mm 10 mm .050 mm
0103 10 13 10 mm 1/4" 19 mm 30 mm 25 mm 14.5 mm 12 mm .085 mm
0103 12 13 12 mm 1/4" 22 mm 30 mm 26 mm 15 mm 15 mm .114 mm

Metric taper threads or Briggs (NPT threads) are available by special order, subject to minimum quantities.
