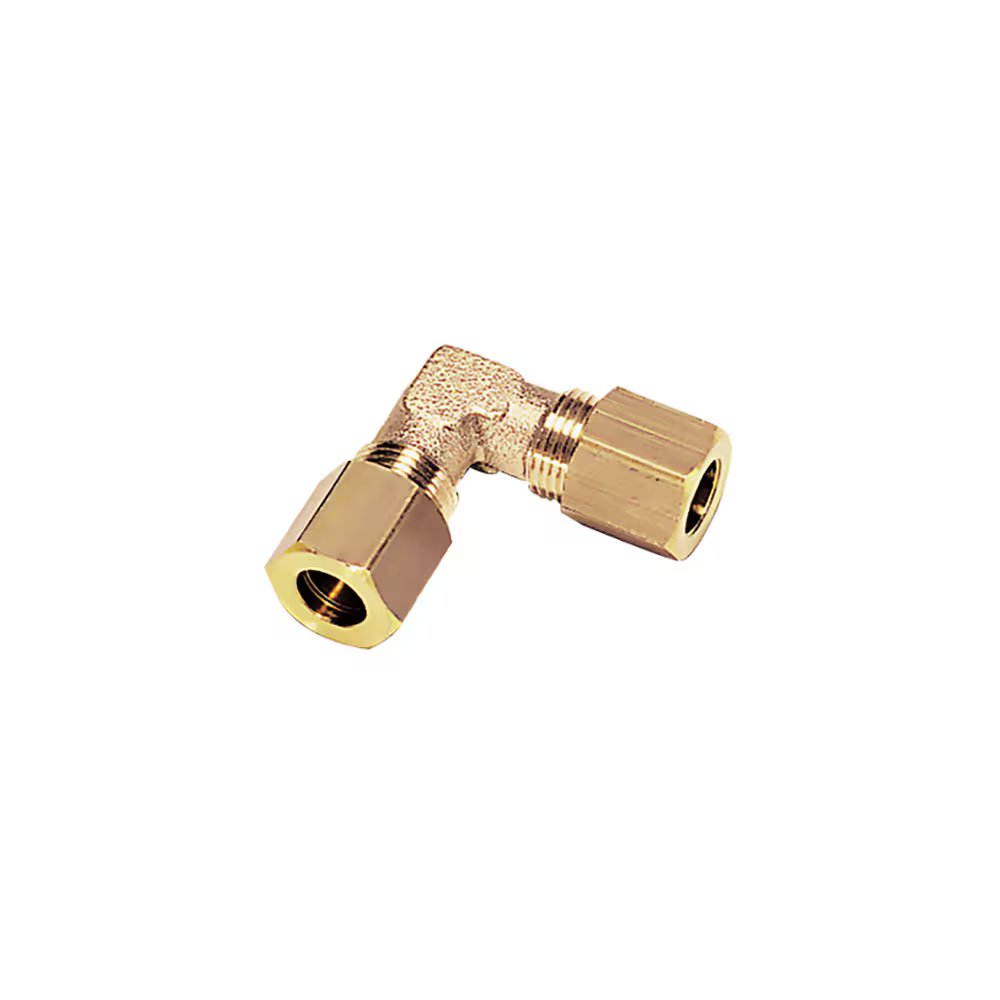

0102 04 00 by Parker | Legris Tube-to-Tube | 4 mm Tube Size | 10 mm Hex | 90° Elbow | Brass | Pack of 10
by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0102 Equal Elbow
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $81.15 |
| 20–59 | $73.38 |
| 60+ | $64.75 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
 |
 |
|||||
|---|---|---|---|---|---|
| Part Number | ØD | F | J | L (max) | Kg |
| 0102 04 00 | 4 mm | 10 mm | 5 mm | 19 mm | .017 Kg |
| 0102 05 00 | 5 mm | 12 mm | 8 mm | 21 mm | .025 Kg |
| 0102 06 00 | 6 mm | 13 mm | 8 mm | 22 mm | .027 Kg |
| 0102 08 00 | 8 mm | 14 mm | 10 mm | 28 mm | .038 Kg |
| 0102 10 00 | 10 mm | 19 mm | 12 mm | 30 mm | .072 Kg |
| 0102 12 00 | 12 mm | 22 mm | 15 mm | 30 mm | .097 Kg |
| 0102 14 00 | 14 mm | 24 mm | 19 mm | 35 mm | .133 Kg |
| 0102 15 00 | 15 mm | 24 mm | 19 mm | 35 mm | .122 Kg |
| 0102 16 00 | 16 mm | 27 mm | 19 mm | 39 mm | .168 Kg |
| 0102 18 00 | 18 mm | 30 mm | 23 mm | 41 mm | .236 Kg |
| 0102 20 00 | 20 mm | 32 mm | 23 mm | 42 mm | .238 Kg |
| 0102 22 00 | 22 mm | 36 mm | 27 mm | 50 mm | .375 Kg |
| 0102 28 00 | 28 mm | 42 mm | 32 mm | 54.5 mm | .473 Kg |
