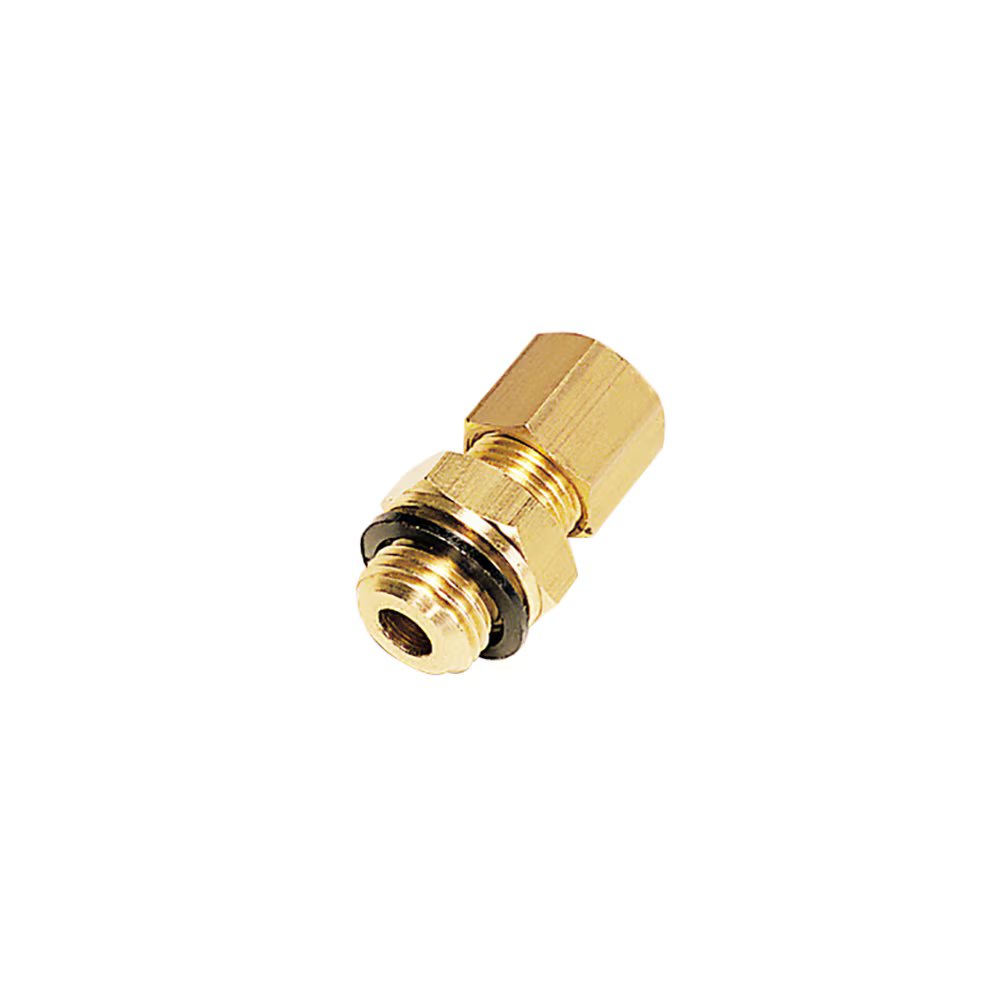

0101 14 21 by Parker | Legris Stud Fitting w/ Captive Sealing Washer | 14 mm Tube Size x 1/2" Male BSPP Thread | 27 mm Hex (F) | 24 mm Hex (F1) | Straight | Brass | Pack of 10

0101 14 21 by Parker | Legris Stud Fitting w/ Captive Sealing Washer | 14 mm Tube Size x 1/2" Male BSPP Thread | 27 mm Hex (F) | 24 mm Hex (F1) | Straight | Brass | Pack of 10

Sale price$188.97

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0101 Stud Fitting with Captive Sealing Washer, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity Price Each
15–29 $179.52
30–59 $170.07
60+ $151.18
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0101 Series
Shape:

Straight

Ends Configuration:
  • 14mm Tube Compression
  • 1/2in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C E F F1 H (max) H1 Kg
0101 04 19 4 mm M5x0.8 5 mm 10 mm 10 mm 16.5 mm 8 mm .011 Kg
0101 04 10 4 mm 1/8" 6.5 mm 13 mm 10 mm 16.5 mm 8 mm .011 Kg
0101 05 10 5 mm 1/8" 6.5 mm 13 mm 12 mm 17.5 mm 8.5 mm .019 Kg
0101 06 10 6 mm 1/8" 6.5 mm 13 mm 13 mm 18 mm 8.5 mm .020 Kg
0101 06 13 6 mm 1/4" 8 mm 17 mm 13 mm 18 mm 9.5 mm .030 Kg
0101 08 10 8 mm 1/8" 6.5 mm 13 mm 14 mm 19 mm 8.5 mm .021 Kg
0101 08 13 8 mm 1/4" 8 mm 17 mm 14 mm 19.5 mm 9 mm .031 Kg
0101 08 17 8 mm 3/8" 11 mm 22 mm 14 mm 20 mm 10.5 mm .043 Kg
0101 10 13 10 mm 1/4" 8 mm 17 mm 19 mm 24 mm 11 mm .048 Kg
0101 10 17 10 mm 3/8" 11 mm 22 mm 19 mm 24 mm 11.5 mm .061 Kg
0101 12 13 12 mm 1/4" 8 mm 19 mm 22 mm 24 mm 11 mm .061 Kg
0101 12 17 12 mm 3/8" 11 mm 22 mm 22 mm 24 mm 11.5 mm .069 Kg
0101 12 21 12 mm 1/2" 12 mm 27 mm 22 mm 24 mm 12 mm .089 Kg
0101 14 17 14 mm 3/8" 11 mm 22 mm 24 mm 25 mm 10.5 mm .075 Kg
0101 14 21 14 mm 1/2" 12 mm 27 mm 24 mm 25 mm 11 mm .093 Kg
0101 16 17 16 mm 3/8" 11 mm 22 mm 27 mm 27 mm 12 mm .092 Kg
0101 16 21 16 mm 1/2" 12 mm 27 mm 27 mm 27 mm 12.5 mm .110 Kg
0101 18 21 18 mm 1/2" 12 mm 27 mm 30 mm 29.5 mm 12.5 mm .131 Kg
0101 18 27 18 mm 3/4" 13 mm 32 mm 30 mm 29.5 mm 13 mm .154 Kg
0101 22 27 22 mm 3/4" 13 mm 32 mm 36 mm 32 mm 13 mm .197 Kg
0101 22 34 22 mm 1" 15 mm 41 mm 36 mm 31 mm 13.5 mm .259 Kg

With pre-assembled polyamide washer
Sealing washers 0602 can be found in the sub-chapter “Adaptors and Manifolds”.
