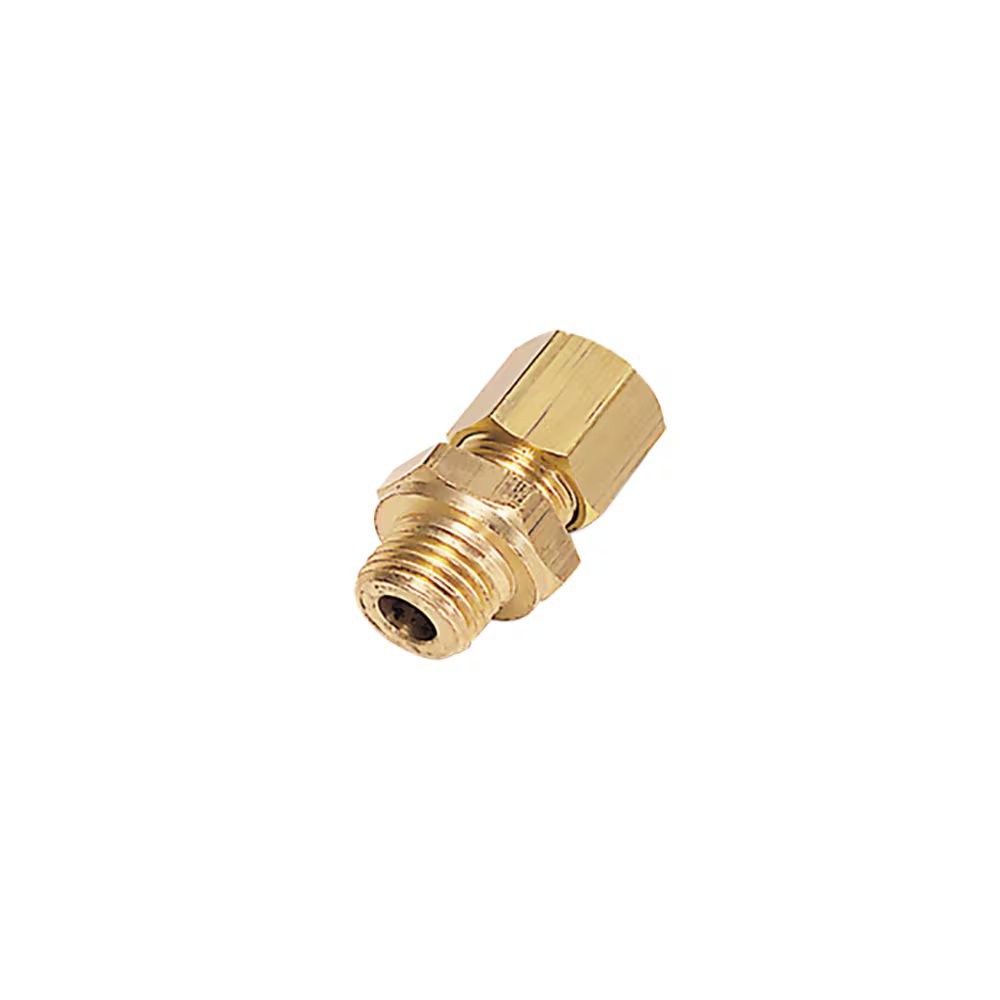

0101 12 78 by Parker | Legris Stud Fitting | 12 mm Tube Size x M18x1.5 Male M18 Metric Thread | 22 mm Hex (F) | 22 mm Hex (F1) | 33 mm Length | Straight | Brass | Pack of 10

0101 12 78 by Parker | Legris Stud Fitting | 12 mm Tube Size x M18x1.5 Male M18 Metric Thread | 22 mm Hex (F) | 22 mm Hex (F1) | 33 mm Length | Straight | Brass | Pack of 10

Sale price$137.26

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0101 Stud Fitting, Male Metric Thread

Package Quantity: 10 Units

Quantity Price Each
15–29 $130.40
30–59 $123.53
60+ $109.81
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0101 Series
Shape:

Straight

Material(s):
  • Brass
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C E F F1 H (max) H1 Kg
0101 04 55 4 mm M7x1 6.5 mm 10 mm 10 mm 16.5 mm 7.5 mm .012 Kg
0101 04 56 4 mm M8x1 6.5 mm 11 mm 10 mm 16.5 mm 7.5 mm .013 Kg
0101 05 56 4 mm M8x1 6.5 mm 11 mm 12 mm 17.5 mm 8 mm .016 Kg
0101 05 60 4 mm M10x1 6.5 mm 14 mm 12 mm 17.5 mm 8.5 mm .020 Kg
0101 06 60 6 mm M10x1 6.5 mm 14 mm 13 mm 18 mm 8.5 mm .021 Kg
0101 06 62 6 mm M10x1.5 6.5 mm 14 mm 13 mm 18 mm 8.5 mm .021 Kg
0101 08 65 8 mm M12x1 8 mm 17 mm 14 mm 19.5 mm 9 mm .029 Kg
0101 08 66 8 mm M12x1.25 8 mm 17 mm 14 mm 19.5 mm 9 mm .029 Kg
0101 08 68 8 mm M13x1.25 8 mm 17 mm 14 mm 19.5 mm 9 mm .030 Kg
0101 10 70 10 mm M14x1.25 8 mm 17 mm 19 mm 24 mm 11 mm .047 Kg
0101 10 71 10 mm M14x1.5 8 mm 17 mm 19 mm 24 mm 11 mm .047 Kg
0101 10 74 10 mm M16x1.25 9 mm 19 mm 19 mm 24 mm 11 mm .052 Kg
0101 10 75 10 mm M16x1.5 9 mm 19 mm 19 mm 24 mm 11 mm .051 Kg
0101 10 78 10 mm M18x1.5 9 mm 22 mm 19 mm 24 mm 11.5 mm .059 Kg
0101 12 75 12 mm M16x1.5 9 mm 19 mm 22 mm 24 mm 11 mm .061 Kg
0101 12 78 12 mm M18x1.5 9 mm 22 mm 22 mm 24 mm 11.5 mm .070 Kg
0101 14 78 14 mm M18x1.5 9 mm 22 mm 24 mm 25 mm 10.5 mm .073 Kg
0101 14 80 14 mm M20x1.5 10 mm 24 mm 24 mm 25 mm 11 mm .084 Kg
0101 16 82 16 mm M22x1.5 10 mm 27 mm 27 mm 27 mm 12.5 mm .112 Kg
0101 18 82 18 mm M22x1.5 10 mm 27 mm 30 mm 29.5 mm 12.5 mm .131 Kg
