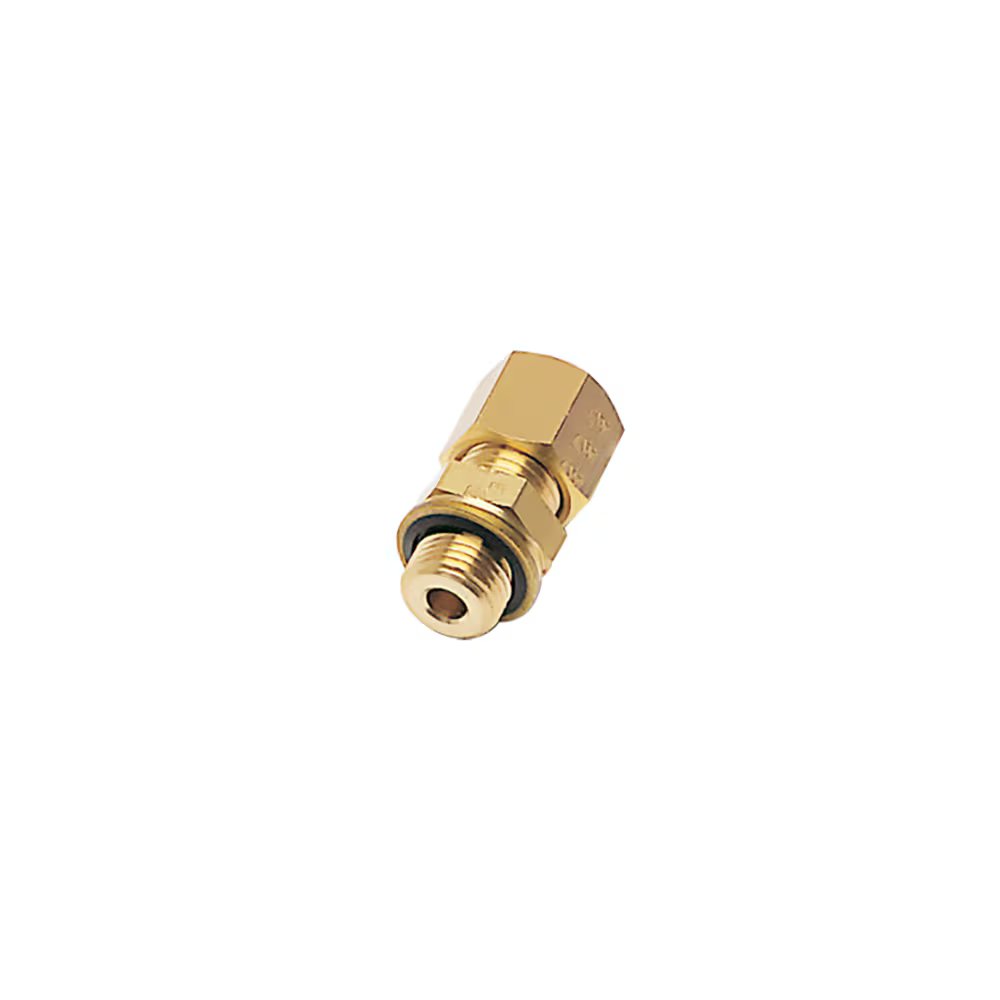

0101 06 13 39 by Parker | Legris Stud Fitting w/ Bi-Material Seal | 6 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex (F) | 13 mm Hex (F1) | Straight | Brass | Pack of 10

0101 06 13 39 by Parker | Legris Stud Fitting w/ Bi-Material Seal | 6 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex (F) | 13 mm Hex (F1) | Straight | Brass | Pack of 10

Sale price$75.93

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0101..39 Stud Fitting, with Bi-Material Seal, Male BSPP Thread

Package Quantity: 10 Units

Quantity Price Each
15–29 $72.13
30–59 $68.34
60+ $60.74
Discounts applied in cart/checkout.

Product Data:

Series:
  • 0101 39 Series
Shape:

Straight

Ends Configuration:
  • 6mm Tube Compression
  • 1/4in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C E F F1 H (max) H1 Kg
0101 04 10 39 4 mm 1/8" 5.5 mm 13 mm 10 mm 17.5 mm 9 mm .016 Kg
0101 06 10 39 6 mm 1/8" 5.5 mm 13 mm 13 mm 19 mm 9.5 mm .020 Kg
0101 06 13 39 6 mm 1/4" 7 mm 17 mm 13 mm 19 mm 10.5 mm .030 Kg
0101 08 10 39 8 mm 1/8" 5.5 mm 13 mm 14 mm 20 mm 9.5 mm .022 Kg
0101 08 13 39 8 mm 1/4" 7 mm 17 mm 14 mm 20.5 mm 10 mm .031 Kg
0101 10 13 39 10 mm 1/4" 7 mm 17 mm 19 mm 25 mm 12 mm .048 Kg
0101 10 17 39 10 mm 3/8" 9.5 mm 22 mm 19 mm 25.5 mm 13 mm .062 Kg
0101 12 13 39 12 mm 1/4" 7 mm 19 mm 22 mm 25 mm 12 mm .062 Kg
0101 12 17 39 12 mm 3/8" 9.5 mm 22 mm 22 mm 25 mm 13 mm .071 Kg
0101 12 21 39 12 mm 1/2" 10.5 mm 27 mm 22 mm 25 mm 13.5 mm .091 Kg
0101 14 17 39 14 mm 3/8" 9.5 mm 22 mm 24 mm 26.5 mm 12 mm .074 Kg
0101 14 21 39 14 mm 1/2" 10.5 mm 27 mm 24 mm 26.5 mm 12.5 mm .094 Kg
0101 16 21 39 16 mm 1/2" 10.5 mm 27 mm 27 mm 28.5 mm 14 mm .111 Kg

Thread with bi-material seal
Bi-material sealing washers, part number 0139, can be found in the sub-chapter “Adaptors and Manifolds”.
