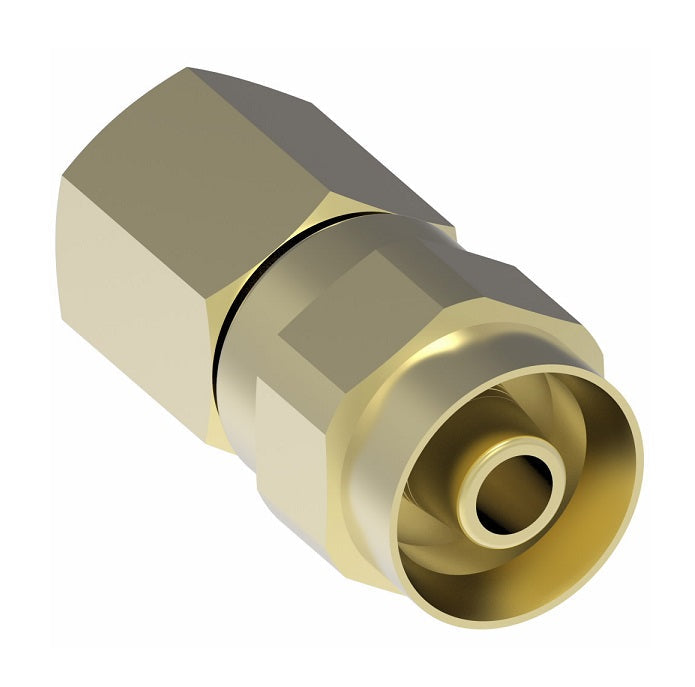

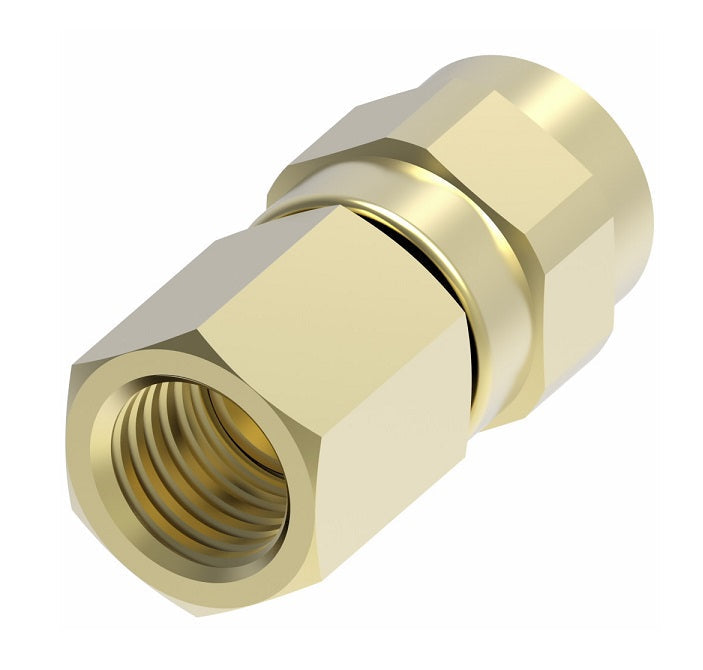

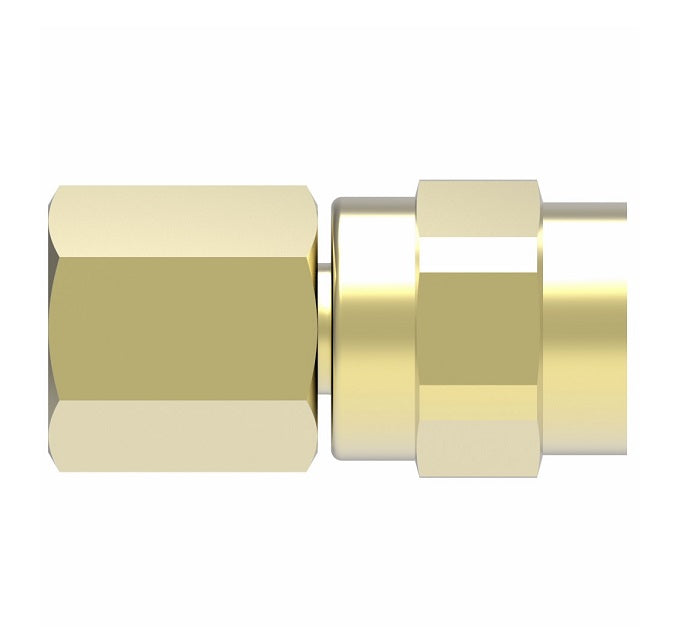

00904B-604 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | 009 "B" Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Brass
00904B-604 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | 009 "B" Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Brass
00904B-604 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | 009 "B" Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Brass

00904B-604 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | 009 "B" Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Brass

Sale price$16.04

Weatherhead by Danfoss
Field Attachable Fitting - 009 "B" Series - Female 37° JIC Swivel
Buy More, Save More!
Quantity Price Each
10–39 $15.08
40–79 $13.63
80+ $12.03
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female JIC
  • 1/4in Reusable Hose End
Material(s):
  • Brass
Applications:
  • Low pressure air, lube and oil lines
Features:
  • Reusable and easy to assemble.
  • An excellent Fitting where low pressure applications exist and a clamp may get in the way.
Brass
Part Number 		Hose
ID		 Pipe
Size		 Thread A Hose
Cut-Off Factor		 Hole
Diameter		 Hex
E		 Hex
F
00904B-604 1/4" 1/4" 7/16-20 1.31" 0.81" 0.172" 5/8" 9/16"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
