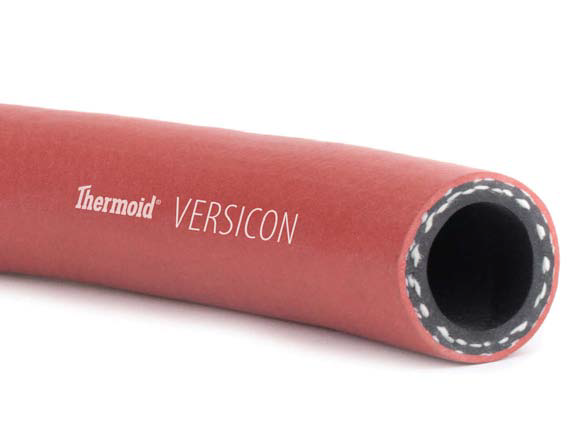

00447516400 by Thermoid | Versicon Premium Non-Conductive Hose | 1" ID | 300 PSI | 700ft Reel
Versicon is a premium, non-conductive hose designed to stand up to the tough working conditions found in shipyards, steel processing automotive plants and construction industries. The NBR tube can convey oil, diesel, kerosene, fuel oil and other petroleum based products. Its 4-spiral polyester reinforcing cords provide strength and flexibility even in extreme temperatures. The synthetic cover resists oil and solvents and also cracking, abrasion and ozone. Versicon meets the standard for conductivity which makes it ideal for the aluminum reduction industry as well as other applications where a high degree of electrical non-conductivity is required. Versicon provides smooth, easy handling and offers a constant pressure of either 250 or 300 psi 1/4" through the 1-1/2" sizes. Versicon is kink resistant, crush proof and is the ideal choice for harsh, demanding applications. Note: Not recommended for a variety of unleaded gasoline.
Package Quantity: 700 FT
Product Data:
300
SPECIFICATIONS
| Application: | Versicon is designed to stand up to the tough working conditions found in shipyards, steel processing automotive plants and construction industries. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | NBR, RMA Class A |
| Reinforcement: | Spiral polyester yarn | Cover: | Nitrile/PVC Class A |
| Temperature Range: | -20 Deg. F to +180 Deg. F (-29 Deg. C to +82 Deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| High Oil Resistance. | |||
| Part Number | Nominal Inner Diameter | Nominal Outside Diameter | Reinforcement Spirals | Working Pressure (PSI) | Min. Bend Radius | Weight (Lbs/Ft) |
|---|---|---|---|---|---|---|
| 00447504400 | .25" | .62" | 4 | 300 | 1.50" | 0.16 |
| 00447506400 | .375" | .71" | 4 | 300 | 2.25" | 0.18 |
| 00447508400 | .50" | .84" | 2 | 300 | 3.00" | 0.25 |
| 00447512400 | .75" | 1.15" | 4 | 300 | 4.50" | 0.42 |
| 00447516400 | 1" | 1.43" | 4 | 300 | 7.00" | 0.63 |
| 00447520300 | 1.25" | 1.78" | 4 | 250 | 8.75" | 0.81 |
| 00447524300 | 1.50" | 2.03" | 4 | 250 | 10.50" | 0.95 |
Bulk / By the Foot : We sell hose in Bulk Lengths unless you agree to purchase at a by the foot price as listed above in an options selector. This means we make every effort to provide exact single lengths, however with manufacturer guidelines on bulk hose, your order may come in multiple lengths and may be plus or minus 10% of your bulk order. If you require ONE length in a specific length you must specify by the drop down selector that you will be paying a premium for a single length. There are no exceptions to the bulk guidelines and all prices listed on our website are in bulk price. By ordering through our website you agree that you have read, fully understand and agree to these terms and conditions.
