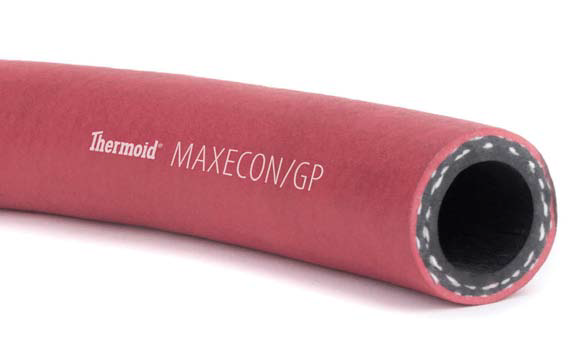

00336504400 by Thermoid | Maxecon/GP General Purpose Air and Water Hose | 1/4" ID | 300 PSI
Maxecon is an excellent general purpose air and water service hose that can be used by all industries. It is non-conductive and offers a medium-high oil resistance. Maxecon offers dependable and solid performance with two working pressures: 250 or 300 psi in varying sizes up to 1-1/2" I.D. Its durable cover resists abrasion, weathering and ozone. Maxecon’s multi-spiral polyester yarn reinforcement makes this hose durable, flexible and helps eliminate kinks. Maxecon is the ideal hose for use in mining, steel or petroleum applications. Note: Not recommended for fuel applications.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $59.17 |
| 20–59 | $53.51 |
| 60+ | $47.21 |
Product Data:
300
| Application: | Maxecon is an excellent general purpose air and water service hose that can be used by all industries. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Nitrile blend, RMA Class A |
| Reinforcement: | Spiral polyester yarn | Cover: | Nitrile blend, RMA Class B |
| Temperature Range: | -20 Deg. F to +160 Deg. F or 180 Deg. F (Intermittent) (-29 Deg. C to +71 Deg. C or 82 Deg. C (Intermittent)) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| Medium Oil Resistant Cover. High Oil Resistant Tube. | |||
| Part Number | Nominal Inner Diameter | Nominal Outside Diameter | Reinforcement Spirals | Working Pressure (PSI) | Min. Bend Radius | Weight (Lbs/Ft) |
|---|---|---|---|---|---|---|
| 00336504300 | .25" | .50" | 2 | 250 | 1.50" | 0.08 |
| 00336504400 | .25" | .62" | 4 | 300 | 1.50" | 0.13 |
| 00336505300 | .3125" | .63" | 2 | 250 | 2.00" | 0.14 |
| 00336506300 | .375" | .69" | 4 | 250 | 2.25" | 0.17 |
| 00336506400 | .375" | .71" | 4 | 300 | 2.25" | 0.17 |
| 00336508300 | .50" | .84" | 4 | 250 | 3.00" | 0.24 |
| 00336508400 | .50" | .84" | 4 | 300 | 3.00" | 0.24 |
| 00336510400 | .625" | 1.00" | 4 | 300 | 3.75" | 0.28 |
| 00336512300 | .75" | 1.15" | 4 | 250 | 4.50" | 0.36 |
| 00336512400 | .75" | 1.15" | 4 | 300 | 4.50" | 0.40 |
| 00336512454 | .75" | 1.15" | 4 | 300 | 4.50" | 0.40 |
| 00336516300 | 1" | 1.43" | 4 | 250 | 7.00" | 0.49 |
| 00336516400 | 1" | 1.43" | 4 | 300 | 7.00" | 0.58 |
| 00336520300 | 1.25" | 1.78" | 4 | 250 | 8.75" | 0.78 |
| 00336524300 | 1.50" | 2.03" | 4 | 250 | 10.50" | 0.90 |
Bulk / By the Foot : We sell hose in Bulk Lengths unless you agree to purchase at a by the foot price as listed above in an options selector. This means we make every effort to provide exact single lengths, however with manufacturer guidelines on bulk hose, your order may come in multiple lengths and may be plus or minus 10% of your bulk order. If you require ONE length in a specific length you must specify by the drop down selector that you will be paying a premium for a single length. There are no exceptions to the bulk guidelines and all prices listed on our website are in bulk price. By ordering through our website you agree that you have read, fully understand and agree to these terms and conditions.
