00114524200 by Thermoid | Valuflex/GS Multipurpose Air and Water Hose | 1-1/2" ID | Red | 200 PSI
Thermoid

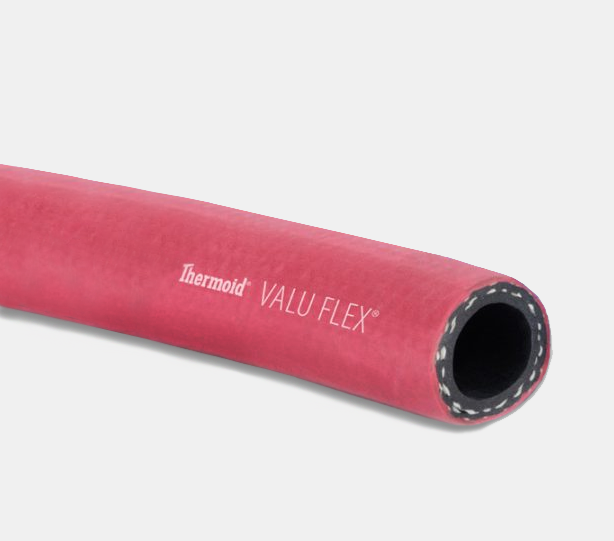

Valu Flex® | Valuflex/GS Multipurpose Air and Water Hose
Valu Flex® is one of the most versatile general service air and water hoses available today. Hoses are lightweight, flexible, and resists abrasion, heat and ozone, making them useful in various applications.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $98.07 |
| 20–59 | $88.68 |
| 60+ | $78.25 |
Product Data:
200
SPECIFICATIONS
| Application: | General service air and water hose. Do not use this product as a steam hose or fuel (for example petroleum-based fuels and oils) hose. CAUTION: This product is not recommended for environments where oil is present. |
||
|---|---|---|---|
| Tube: | EPDM, ARPM - Class C - Heat Resistant | Reinforcement: | Spiral Polyester Yarn |
| Cover: | EPDM - Abrasion, Ozone, and Weather Resistant | Temperature Range: | -40°F to +212°F (-40°C to +100°C) |
| Branding: | Thermoid Valu Flex Size PSI WP Made In USA Month/Day/Year Time Stamp | ||
| Other Features: | |||
|
|||
| Valuflex/GS Series | Black | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Inside Diameter | Outside Diameter | Reinforcement Spirals | Operating Pressure (PSI) | Min. Bend Radius | Weight (Lbs/Ft) | |||
| 00114604200 | .25" | .49" | 2 | 200 | 1.5" | .08 | |||
| 00114604400 | .25" | .62" | 4 | 300 | 1.5" | .15 | |||
| 00114605400 | .3125" | .62" | 4 | 300 | 2.0" | .13 | |||
| 00114606200 | .375" | .68" | 2 | 200 | 2.25" | .15 | |||
| 00114606400 | .375" | .71" | 4 | 300 | 2.25" | .17 | |||
| 00114608200 | .50" | .81" | 2 | 200 | 3.00" | .24 | |||
| 00114608400 | .50" | .84" | 4 | 300 | 3.0" | .24 | |||
| 00114610200 | .625" | .93" | 4 | 200 | 3.75" | .29 | |||
| 00114610400 | .625" | 1.00" | 4 | 300 | 3.75" | .29 | |||
| 00114612200 | .75" | 1.15" | 4 | 200 | 4.50" | .36 | |||
| 00114612400 | .75" | 1.15" | 4 | 300 | 4.50" | .40 | |||
| 00114616200 | 1" | 1.37" | 4 | 200 | 7.00" | .49 | |||
| 00114616400 | 1" | 1.43" | 4 | 300 | 7.00" | .49 | |||
| 00114620200 | 1.25" | 1.75" | 4 | 200 | 8.75" | .79 | |||
| 00114624200 | 1.5" | 2.00" | 4 | 200 | 10.50" | .90 | |||
| 00114632200 | 2" | 2.55" | 4 | 200 | 14.00" | 1.08 | |||
| Valuflex/GS Series | Red | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Inside Diameter | Outside Diameter | Reinforcement Spirals | Operating Pressure (PSI) | Min. Bend Radius | Weight (Lbs/Ft) | |||
| 00114504200 | .25" | .49" | 2 | 200 | 1.5" | .09 | |||
| 00114504400 | .25" | .62" | 4 | 300 | 1.5" | .16 | |||
| 00114505200 | .3125" | .58" | 2 | 200 | 2.0" | .12 | |||
| 00114505400 | .3125" | .62" | 4 | 300 | 2.0" | .14 | |||
| 00114506200 | .375" | .68" | 2 | 200 | 2.25" | .16 | |||
| 00114506400 | .375" | .71" | 4 | 300 | 2.25" | .18 | |||
| 00114508200 | .5" | .81" | 2 | 200 | 3.0" | .25 | |||
| 00114508400 | .5" | .84" | 4 | 300 | 3.0" | .25 | |||
| 00114510200 | .625" | .93" | 4 | 200 | 3.75" | .30 | |||
| 00114510400 | .625" | 1.00" | 4 | 300 | 3.75" | .30 | |||
| 00114512200 | .75" | 1.15" | 4 | 200 | 4.50" | .38 | |||
| 00114512400 | .75" | 1.15" | 4 | 300 | 4.50" | .41 | |||
| 00114516300 | 1" | 1.37" | 4 | 200 | 7.0" | .51 | |||
| 00114516400 | 1" | 1.37" | 4 | 300 | 7.0" | .51 | |||
| 00114520200 | 1.25" | 1.75" | 4 | 200 | 8.750" | .81 | |||
| 00114524200 | 1.50" | 2.0" | 4 | 200 | 10.50" | .95 | |||
| 00114532200 | 2.0" | 2.55" | 4 | 200 | 14.0" | 1.13 | |||
Bulk / By the Foot : We sell hose in Bulk Lengths unless you agree to purchase at a by the foot price as listed above in an options selector. This means we make every effort to provide exact single lengths, however with manufacturer guidelines on bulk hose, your order may come in multiple lengths and may be plus or minus 10% of your bulk order. If you require ONE length in a specific length you must specify by the drop down selector that you will be paying a premium for a single length. There are no exceptions to the bulk guidelines and all prices listed on our website are in bulk price. By ordering through our website you agree that you have read, fully understand and agree to these terms and conditions.
