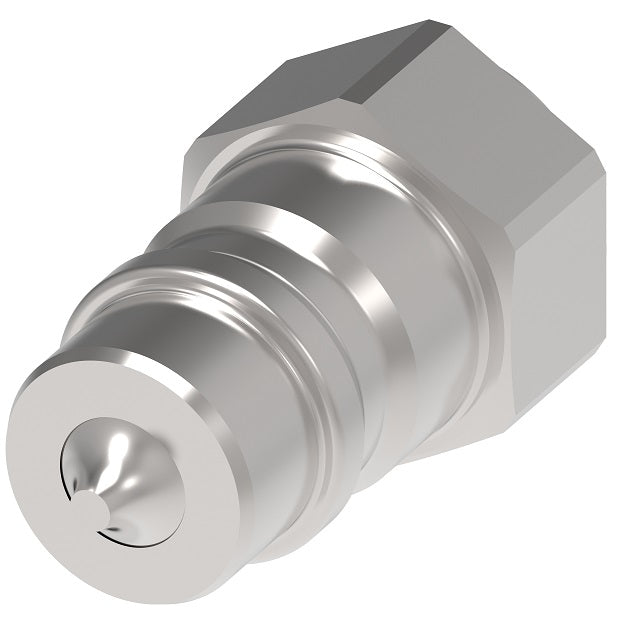

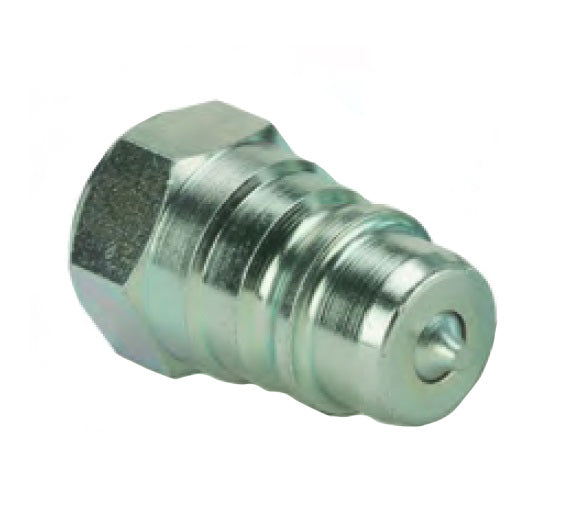

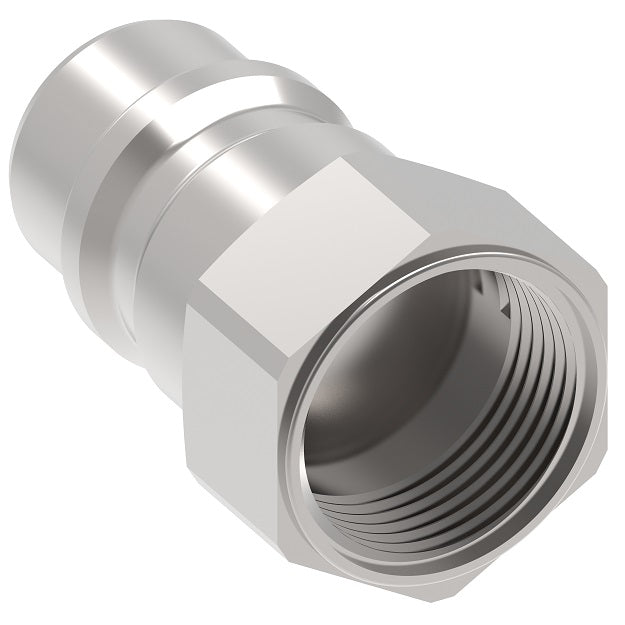

HA0502200 Hansen® by Danfoss | Quick Disconnect Coupling | H5000 Series | 3/8" Female BSPP x 3/8" Body Size | Plug | NBR Seal | Steel
HA0502200 Hansen® by Danfoss | Quick Disconnect Coupling | H5000 Series | 3/8" Female BSPP x 3/8" Body Size | Plug | NBR Seal | Steel
HA0502200 Hansen® by Danfoss | Quick Disconnect Coupling | H5000 Series | 3/8" Female BSPP x 3/8" Body Size | Plug | NBR Seal | Steel
HA0502200 Hansen® by Danfoss | Quick Disconnect Coupling | H5000 Series | 3/8" Female BSPP x 3/8" Body Size | Plug | NBR Seal | Steel

HA0502200 Hansen® by Danfoss | Quick Disconnect Coupling | H5000 Series | 3/8" Female BSPP x 3/8" Body Size | Plug | NBR Seal | Steel

Sale price$18.96

Hansen® by Danfoss
H5000 Series

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss' H5000 Series steel quick disconnect coupling is a pull to connect double shut-off coupling. Featuring the original profile, it remains as the series users prefer when it comes to severe hydraulic applications such as high pressure, pressure impulses, heavy mechanical loads and frequent connection and disconnection cycles.

The unique sleeve lock option offers a reliable solution and benefit to the end user when safety is a concern.
Buy More, Save More!
Quantity Price Each
10–39 $17.82
40–79 $16.12
80+ $14.22
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • H5000 Series
Shape:

Straight
Product Features:
  • Proprietary profile.
  • Pull-to-connect with double shut-off valving.
  • Ball-locking.
  • Optional safety sleeve lock prevents accidental disconnections.
  • Pressure performance.
  • The heat treatment of the plug and use of high strength steel for the socket sleeve provide superior mechanical and hydraulic performance.
  • The design of the valve gives the coupling increased robustness when disconnected.
Applications & Markets:
  • Automobile
  • Agriculture
  • Construction
  • Oil and Gas
  • Railway
  • Aeronautics
  • Food Processing
  • Iron and Steel Industry
  • Electronics
  • Laboratories
  • General Hydraulic
European Pressure Equipment Directive:
  • Couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive 2014/68/EU. Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module A of the European Pressure Equipment Directive 2014/68/EU. They should not be used to convey unstable gases.
  • Group 1 = Hazardous media / Group 2 = Other media
Materials:
  • Standard body material: Zinc trivalent steel
  • Standard seal material: NBR, FKM, EPDM
Seal Elastomer Data*
Seal Elastomer Max. Operation Temperature Range
NBR (Nitrile) -20°C +100°C/-4°F +212°F
FKM -20°C +200°C/-4°F +392°F
EPDM (Ethylene-Propylene)** -40°C +150°C/-40°F +302°F

* For reference only, based on Danfoss recommended temperatures.

** In accordance with NF L 17-241 or NAS 1613 rev. 5

Body
Size		 Nominal Flow
Diameter		 Max. Operating Pressure*
Non Hazardous Liquids & Gases
in Group 2		 Hazardous Liquids & Gases
in Group 1		 Rated
Flow**		 Fluid
Loss
in mm bar psi bar psi lpm gpm ml-cc.
1/8" 3.8mm 1,000 bar 14,500 psi 1,000 bar 14,500 psi 6.1 lpm 1.61 gpm 0.4 ml-cc.
1/4" 5.7mm 700 bar 10,150 psi 700 bar 10,150 psi 11.6 lpm 3.06 gpm 1 ml-cc.
3/8" 7.6mm 600 bar 8,700 psi 600 bar 8,700 psi 16.7 lpm 4.41 gpm 2 ml-cc.
1/2" 10.3mm 500 bar 7,250 psi 500 bar 7,250 psi 25.5 lpm 6.74 gpm 2.5 ml-cc.
3/4" 14.2mm 400 bar 5,800 psi 400 bar 5,800 psi 55 lpm 14.53 gpm 5.5 ml-cc.
1" 16.5mm 300 bar 4,350 psi 300 bar 4,350 psi 87 lpm 22.98 gpm 9 ml-cc.
1-1/4" 20.5mm 200 bar 2,900 psi 200 bar 2,900 psi 140 lpm 36.98 gpm 23 ml-cc.
1-1/2" 25.8mm 150 bar 2,175 psi 38 bar 550 psi 208 lpm 54.95 gpm 36 ml-cc.
2" 34.7mm 100 bar 1,450 psi 28 bar 405 psi 357 lpm 94.3 gpm 70 ml-cc.

* For pulsating pressures when disconnected apply a multiplier of 0.5.

** Indicated values refer to a 1 bar/14.5 psi pressure drop.
Socket/Female (Figure 1)
Socket with Sleeve Lock/Female (Figure 2)
Plug/Male (Figure 3)
NBR*
Part
Number		 FKM
Part
Number		 EPDM
Part
Number		 Type Body
Size		 Nominal Flow
Diameter		 Thread
Size
(Female)		 Figure Dimensions
A, D, G B, E, I C, F, H J Across Flats
Hex
in
(mm)		 in
(mm)		 in
(mm)		 in
(mm)		 in
(mm)
HA0500100 HA05001V0 HA05001E0 Socket/Female 1/8" 3.8mm 1/8-28 Fem. BSPP 1 1.65"
(42mm)		 0.94"
(24mm)		 0.83"
(21mm)		 - 0.63"
(16mm)
HA0500300 HA05003V0 HA05003E0 Socket with
Sleeve Lock/Female		 1/8" 3.8mm 1/8-28 Fem. BSPP 2 1.65"
(42mm)		 0.94"
(24mm)		 0.83"
(21mm)		 - 0.63"
(16mm)
HA0500200 HA05002V0 HA05002E0 Plug/Male 1/8" 3.8mm 1/8-28 Fem. BSPP 3 1.10"
(28mm)		 0.43"
(11mm)		 0.72"
(18.4mm)		 0.39"
(10mm)		 0.63"
(16mm)
HA0520100 HA05201V0 HA05201E0 Socket/Female 1/8" 3.8mm 1/8-27 Fem. NPT 1 1.65"
(42mm)		 0.94"
(24mm)		 0.83"
(21mm)		 - 0.63"
(16mm)
HA0520300 HA05203V0 HA05203E0 Socket with
Sleeve Lock/Female		 1/8" 3.8mm 1/8-27 Fem. NPT 2 1.65"
(42mm)		 0.94"
(24mm)		 0.83"
(21mm)		 - 0.63"
(16mm)
HA0520200 HA05202V0 HA05202E0 Plug/Male 1/8" 3.8mm 1/8-27 Fem. NPT 3 1.10"
(28mm)		 0.43"
(11mm)		 0.72"
(18.4mm)		 0.39"
(10mm)		 0.63"
(16mm)
HA0530100 HA05301V0 HA05301E0 Socket/Female 1/8" 3.8mm M10x100 Fem. Metric 1 1.65"
(42mm)		 0.94"
(24mm)		 0.83"
(21mm)		 - 0.63"
(16mm)
HA0530300 HA05303V0 HA05303E0 Socket with
Sleeve Lock/Female		 1/8" 3.8mm M10x100 Fem. Metric 2 1.65"
(42mm)		 0.94"
(24mm)		 0.83"
(21mm)		 - 0.63"
(16mm)
HA0530200 HA05302V0 HA05302E0 Plug/Male 1/8" 3.8mm M10x100 Fem. Metric 3 1.10"
(28mm)		 0.43"
(11mm)		 0.72"
(18.4mm)		 0.39"
(10mm)		 0.63"
(16mm)
HA0501100 HA05011V0 HA05011E0 Socket/Female 1/4" 5.7mm 1/4-19 Fem. BSPP 1 1.97"
(50mm)		 1.10"
(28mm)		 0.94"
(24mm)		 - 0.75"
(19mm)
HA0501300 HA05013V0 HA05013E0 Socket with
Sleeve Lock/Female		 1/4" 5.7mm 1/4-19 Fem. BSPP 2 1.97"
(50mm)		 1.10"
(28mm)		 0.94"
(24mm)		 - 0.75"
(19mm)
HA0501200 HA05012V0 HA05012E0 Plug/Male 1/4" 5.7mm 1/4-19 Fem. BSPP 3 1.38"
(35mm)		 0.56"
(14.2mm)		 0.86"
(21.8mm)		 0.55"
(14mm)		 0.75"
(19mm)
HA0521100 HA05211V0 HA05211E0 Socket/Female 1/4" 5.7mm 1/4-18 Fem. NPT 1 1.97"
(50mm)		 1.10"
(28mm)		 0.94"
(24mm)		 - 0.75"
(19mm)
HA0521300 HA05213V0 HA05213E0 Socket with
Sleeve Lock/Female		 1/4" 5.7mm 1/4-18 Fem. NPT 2 1.97"
(50mm)		 1.10"
(28mm)		 0.94"
(24mm)		 - 0.75"
(19mm)
HA0521200 HA05212V0 HA05212E0 Plug/Male 1/4" 5.7mm 1/4-18 Fem. NPT 3 1.38"
(35mm)		 0.56"
(14.2mm)		 0.86"
(21.8mm)		 0.55"
(14mm)		 0.75"
(19mm)
HA0531100 HA05311V0 HA05311E0 Socket/Female 1/4" 5.7mm M14x150 Fem. Metric 1 1.97"
(50mm)		 1.10"
(28mm)		 0.94"
(24mm)		 - 0.75"
(19mm)
HA0531300 HA05313V0 HA05313E0 Socket with
Sleeve Lock/Female		 1/4" 5.7mm M14x150 Fem. Metric 2 1.97"
(50mm)		 1.10"
(28mm)		 0.94"
(24mm)		 - 0.75"
(19mm)
HA0531200 HA05312V0 HA05312E0 Plug/Male 1/4" 5.7mm M14x150 Fem. Metric 3 1.38"
(35mm)		 0.56"
(14.2mm)		 0.86"
(21.8mm)		 0.55"
(14mm)		 0.75"
(19mm)
HA0502100 HA05021V0 HA05021E0 Socket/Female 3/8" 7.6mm 3/8-19 Fem. BSPP 1 2.32"
(59mm)		 1.34"
(34mm)		 1.10"
(28mm)		 - 0.90"
(23mm)
HA0502300 HA05023V0 HA05023E0 Socket with
Sleeve Lock/Female		 3/8" 7.6mm 3/8-19 Fem. BSPP 2 2.32"
(59mm)		 1.34"
(34mm)		 1.10"
(28mm)		 - 0.90"
(23mm)
HA0502200 HA05022V0 HA05022E0 Plug/Male 3/8" 7.6mm 3/8-19 Fem. BSPP 3 1.65"
(42mm)		 0.75"
(19mm)		 1.04"
(26.4mm)		 0.70"
(18mm)		 0.90"
(23mm)
HA0522100 HA05221V0 HA05221E0 Socket/Female 3/8" 7.6mm 3/8-18 Fem. NPT 1 2.32"
(59mm)		 1.34"
(34mm)		 1.10"
(28mm)		 - 0.90"
(23mm)
HA0522300 HA05223V0 HA05223E0 Socket with
Sleeve Lock/Female		 3/8" 7.6mm 3/8-18 Fem. NPT 2 2.32"
(59mm)		 1.34"
(34mm)		 1.10"
(28mm)		 - 0.90"
(23mm)
HA0522200 HA05222V0 HA05222E0 Plug/Male 3/8" 7.6mm 3/8-18 Fem. NPT 3 1.65"
(42mm)		 0.75"
(19mm)		 1.04"
(26.4mm)		 0.70"
(18mm)		 0.90"
(23mm)
HA0532100 HA05321V0 HA05321E0 Socket/Female 3/8" 7.6mm M18x150 Fem. Metric 1 2.32"
(59mm)		 1.34"
(34mm)		 1.10"
(28mm)		 - 0.90"
(23mm)
HA0532300 HA05323V0 HA05323E0 Socket with
Sleeve Lock/Female		 3/8" 7.6mm M18x150 Fem. Metric 2 2.32"
(59mm)		 1.34"
(34mm)		 1.10"
(28mm)		 - 0.90"
(23mm)
HA0532200 HA05322V0 HA05322E0 Plug/Male 3/8" 7.6mm M18x150 Fem. Metric 3 1.65"
(42mm)		 0.75"
(19mm)		 1.04"
(26.4mm)		 0.70"
(18mm)		 0.90"
(23mm)
HA0503100 HA05031V0 HA05031E0 Socket/Female 1/2" 10.3mm 1/2-14 Fem. BSPP 1 2.71"
(69mm)		 1.50"
(38mm)		 1.22"
(31mm)		 - 1.06"
(27mm)
HA0503300 HA05033V0 HA05033E0 Socket with
Sleeve Lock/Female		 1/2" 10.3mm 1/2-14 Fem. BSPP 2 2.71"
(69mm)		 1.50"
(38mm)		 1.22"
(31mm)		 - 1.06"
(27mm)
HA0503200 HA05032V0 HA05032E0 Plug/Male 1/2" 10.3mm 1/2-14 Fem. BSPP 3 1.97"
(50mm)		 0.81"
(20.6mm)		 1.22"
(31mm)		 0.94"
(24mm)		 1.06"
(27mm)
HA0523100 HA05231V0 HA05231E0 Socket/Female 1/2" 10.3mm 1/2-4 Fem. NPT 1 2.71"
(69mm)		 1.50"
(38mm)		 1.22"
(31mm)		 - 1.06"
(27mm)
HA0523300 HA05233V0 HA05233E0 Socket with
Sleeve Lock/Female		 1/2" 10.3mm 1/2-4 Fem. NPT 2 2.71"
(69mm)		 1.50"
(38mm)		 1.22"
(31mm)		 - 1.06"
(27mm)
HA0523200 HA05232V0 HA05232E0 Plug/Male 1/2" 10.3mm 1/2-4 Fem. NPT 3 1.97" 50mm 0.81"
(20.6mm)		 1.22"
(31mm)		 0.94"
(24mm)		 1.06"
(27mm)
HA0533100 HA05331V0 HA05331E0 Socket/Female 1/2" 10.3mm M22x150 Fem. Metric 1 2.71"
(69mm)		 1.50"
(38mm)		 1.22"
(31mm)		 - 1.06"
(27mm)
HA0533300 HA05333V0 HA05333E0 Socket with
Sleeve Lock/Female		 1/2" 10.3mm M22x150 Fem. Metric 2 2.71"
(69mm)		 1.50"
(38mm)		 1.22"
(31mm)		 - 1.06"
(27mm)
HA0533200 HA05332V0 HA05332E0 Plug/Male 1/2" 10.3mm M22x150 Fem. Metric 3 1.97"
(50mm)		 0.81"
(20.6mm)		 1.22"
(31mm)		 0.94"
(24mm)		 1.06"
(27mm)
HA0504100 HA05041V0 HA05041E0 Socket/Female 3/4" 14.2mm 3/4-14 Fem. BSPP 1 3.50"
(89mm)		 1.89"
(48mm)		 1.57"
(40mm)		 - 1.38"
(35mm)
HA0504300 HA05043V0 HA05043E0 Socket with
Sleeve Lock/Female		 3/4" 14.2mm 3/4-14 Fem. BSPP 2 3.50"
(89mm)		 1.89"
(48mm)		 1.57"
(40mm)		 - 1.38"
(35mm)
HA0504200 HA05042V0 HA05042E0 Plug/Male 3/4" 14.2mm 3/4-14 Fem. BSPP 3 2.48"
(63mm)		 1.10"
(27.9mm)		 1.58"
(40.2mm)		 1.10"
(28mm)		 1.38"
(35mm)
HA0524100 HA05241V0 HA05241E0 Socket/Female 3/4" 14.2mm 3/4-14 Fem. NPT 1 3.50"
(89mm)		 1.89"
(48mm)		 1.57"
(40mm)		 - 1.38"
(35mm)
HA0524300 HA05243V0 HA05243E0 Socket with
Sleeve Lock/Female		 3/4" 14.2mm 3/4-14 Fem. NPT 2 3.50"
(89mm)		 1.89"
(48mm)		 1.57"
(40mm)		 - 1.38"
(35mm)
HA0524200 HA05242V0 HA05242E0 Plug/Male 3/4" 14.2mm 3/4-14 Fem. NPT 3 2.48"
(63mm)		 1.10"
(27.9mm)		 1.58"
(40.2mm)		 1.10"
(28mm)		 1.38"
(35mm)
HA0534100 HA05341V0 HA05341E0 Socket/Female 3/4" 14.2mm M27x150 Fem. Metric 1 3.50"
(89mm)		 1.89"
(48mm)		 1.57"
(40mm)		 - 1.38"
(35mm)
HA0534300 HA05343V0 HA05343E0 Socket with
Sleeve Lock/Female		 3/4" 14.2mm M27x150 Fem. Metric 2 3.50"
(89mm)		 1.89"
(48mm)		 1.57"
(40mm)		 - 1.38"
(35mm)
HA0534200 HA05342V0 HA05342E0 Plug/Male 3/4" 14.2mm M27x150 Fem. Metric 3 2.48"
(63mm)		 1.10"
(27.9mm)		 1.58"
(40.2mm)		 1.10"
(28mm)		 1.38"
(35mm)
HA0505100 HA05051V0 HA05051E0 Socket/Female 1" 16.5mm 1-11 Fem. BSPP 1 3.89"
(99mm)		 2.05"
(52mm)		 1.77"
(45mm)		 - 1.61"
(41mm)
HA0505300 HA05053V0 HA05053E0 Socket with
Sleeve Lock/Female		 1" 16.5mm 1-11 Fem. BSPP 2 3.89"
(99mm)		 2.05"
(52mm)		 1.77"
(45mm)		 - 1.61"
(41mm)
HA0505200 HA05052V0 HA05052E0 Plug/Male 1" 16.5mm 1-11 Fem. BSPP 3 2.79"
(71mm)		 1.27"
(32.4mm)		 1.87"
(47.5mm)		 1.22"
(31mm)		 1.61"
(41mm)
HA0525100 HA05251V0 HA05251E0 Socket/Female 1" 16.5mm 1-11-1/2 Fem. NPT 1 3.89"
(99mm)		 2.05"
(52mm)		 1.77"
(45mm)		 - 1.61"
(41mm)
HA0525300 HA05253V0 HA05253E0 Socket with
Sleeve Lock/Female		 1" 16.5mm 1-11-1/2 Fem. NPT 2 3.89"
(99mm)		 2.05"
(52mm)		 1.77"
(45mm)		 - 1.61"
(41mm)
HA0525200 HA05252V0 HA05252E0 Plug/Male 1" 16.5mm 1-11-1/2 Fem. NPT 3 2.79"
(71mm)		 1.27"
(32.4mm)		 1.87"
(47.5mm)		 1.22"
(31mm)		 1.61"
(41mm)
- HA05061V0 HA05061E0 Socket/Female 1-1/4" 20.5mm 1-1/4-11 Fem. BSPP 1 5.20"
(132mm)		 2.95"
(75mm)		 2.44"
(62mm)		 - 2.16"
(55mm)
- HA05063V0 HA05063E0 Socket with
Sleeve Lock/Female		 1-1/4" 20.5mm 1-1/4-11 Fem. BSPP 2 5.20"
(132mm)		 2.95"
(75mm)		 2.44"
(62mm)		 - 2.16"
(55mm)
- HA05062V0 HA05062E0 Plug/Male 1-1/4" 20.5mm 1-1/4-11 Fem. BSPP 3 3.82"
(97mm)		 1.85"
(46.9mm)		 2.49"
(63.2mm)		 1.89"
(48mm)		 2.16"
(55mm)
- HA05071V0 HA05071E0 Socket/Female 1-1/2" 25.8mm 1-1/2-11 Fem. BSPP 1 5.90"
(150mm)		 3.35"
(85mm)		 2.95"
(75mm)		 - 2.56"
(65mm)
- HA05073V0 HA05073E0 Socket with
Sleeve Lock/Female		 1-1/2" 25.8mm 1-1/2-11 Fem. BSPP 2 5.90"
(150mm)		 3.35"
(85mm)		 2.95"
(75mm)		 - 2.56"
(65mm)
- HA05072V0 HA05072E0 Plug/Male 1-1/2" 25.8mm 1-1/2-11 Fem. BSPP 3 4.29"
(109mm)		 2.20"
(56mm)		 2.94"
(74.7mm)		 2.04"
(52mm)		 2.56"
(65mm)
- HA05091V0 HA05091E0 Socket/Female 2" 34.7mm 2-11 Fem. BSPP 1 6.69"
(170mm)		 3.82"
(97mm)		 3.35"
(85mm)		 - 2.95"
(75mm)
- HA05093V0 HA05093E0 Socket with
Sleeve Lock/Female		 2" 34.7mm 2-11 Fem. BSPP 2 6.69"
(170mm)		 3.82"
(97mm)		 3.35"
(85mm)		 - 2.95"
(75mm)
- HA05092V0 HA05092E0 Plug/Male 2" 34.7mm 2-11 Fem. BSPP 3 4.76"
(121mm)		 2.56"
(65mm)		 3.30"
(84mm)		 1.97"
(50mm)		 2.95"
(75mm)

* Body sizes 1-1/4, 1-1/2 and 2 are supplied with FKM seals as a standard.

To obtain connected length of coupling add dimensions A (Fig. 1) and J (Fig. 3) together.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)

You may also like
