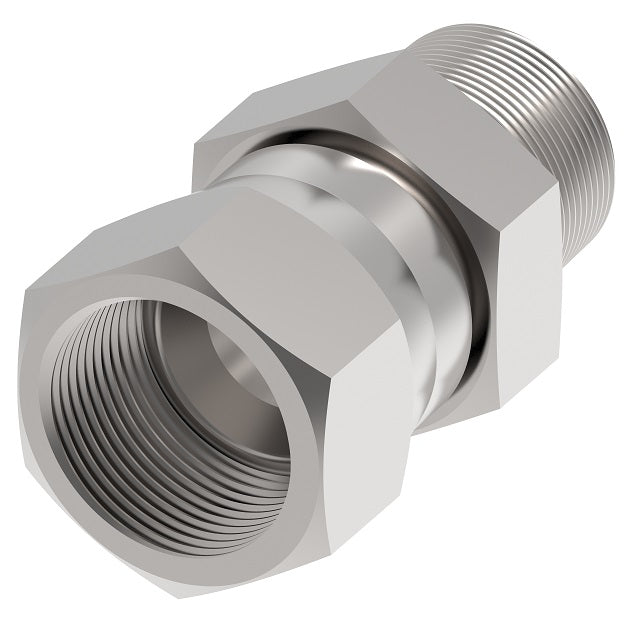

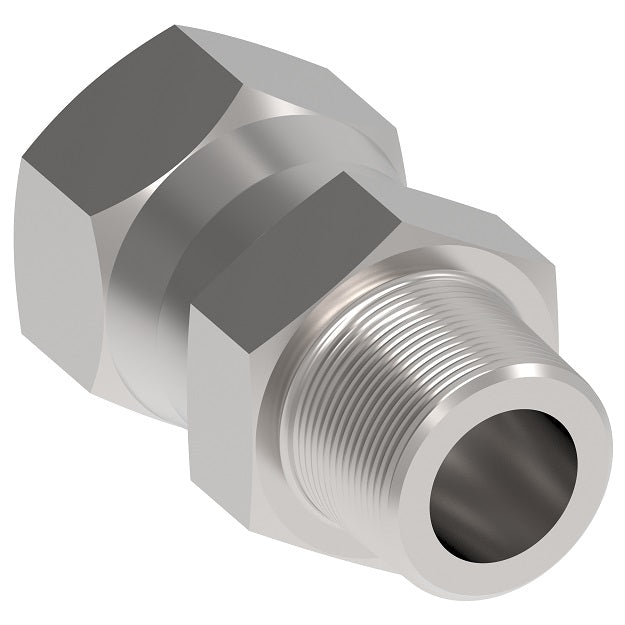

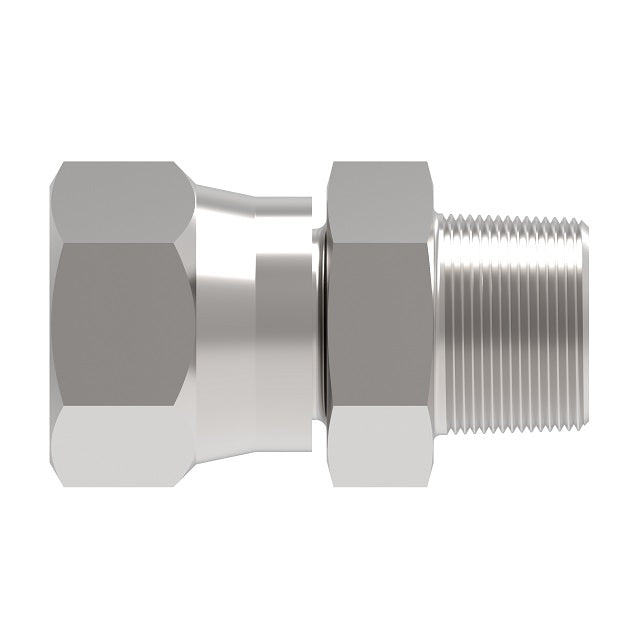

FF4181-1612S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -16 Female 37° JIC Swivel x -12 Male BSPT | Carbon Steel
FF4181-1612S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -16 Female 37° JIC Swivel x -12 Male BSPT | Carbon Steel
FF4181-1612S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -16 Female 37° JIC Swivel x -12 Male BSPT | Carbon Steel

FF4181-1612S Aeroquip by Danfoss | 37° JIC/BSPT Swivel Adapter | -16 Female 37° JIC Swivel x -12 Male BSPT | Carbon Steel

Sale price$23.41

Aeroquip® by Danfoss
37° JIC/BSPT Swivel Adapter
Female 37° JIC Swivel x Male BSPT
Straight

Formerly Weatherhead series M9800x.

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $22.01
40–79 $19.90
80+ $17.56
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Ends Configuration:
  • 1in Female JIC
  • 3/4in Male BSPT
Material(s):
  • Carbon Steel
Steel
Part Number 		Tube OD BSPT Pipe Hex Hex C1 D D1 L
FF4181-0404S 1/4" G 1/4-19 9/16" 9/16" .172" .281"* 1.56"
FF4181-0504S 5/16" G 1/4-19 11/16" 5/8" .234" .281"* 1.63"
FF4181-0604S 3/8" G 1/4-19 11/16" 11/16" .297" .281" 1.69"
FF4181-0804S 1/2" G 1/4-19 7/8" 7/8" .391" .281" 1.87"
FF4181-0806S 1/2" G 3/8-19 7/8" 7/8" .391" .406"* 1.87"
FF4181-0808S 1/2" G 1/2-14 7/8" 7/8" .391" .531"* 2.06"
FF4181-1008S 5/8" G 1/2-14 1" 1" .484" .531"* 2.11"
FF4181-1208S 3/4" G 1/2-14 1-1/8" 1-1/4" .609" .531" 2.21"
FF4181-1212S 3/4" G 3/4-14 1-1/8" 1-1/4" .609" .719"* 2.24"
FF4181-1612S 1" G 3/4-14 1-3/8" 1-1/2" .845" .719" 2.39"
FF4181-1616S 1" G 1-11 1-3/8" 1-1/2" .845" .938"* 2.55"
FF4181-2020S 1-1/4" G 1 1/4-11 1-7/8" 2" 1.079" 1.125"* 2.73"

*Optional counterbore.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
