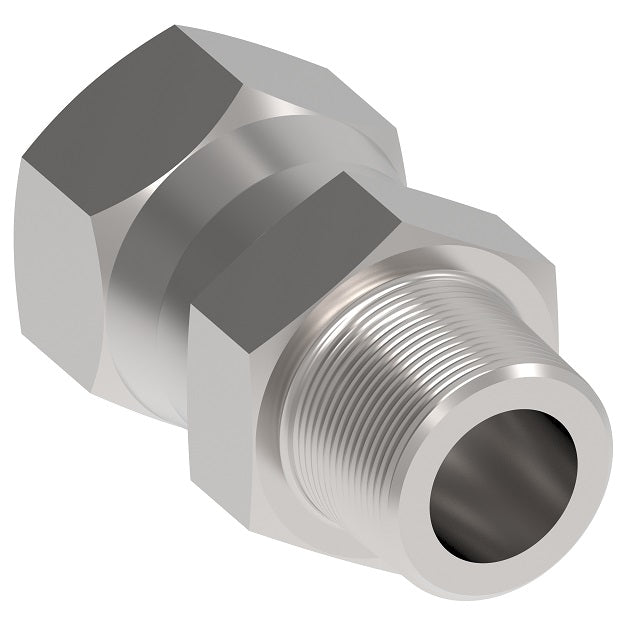

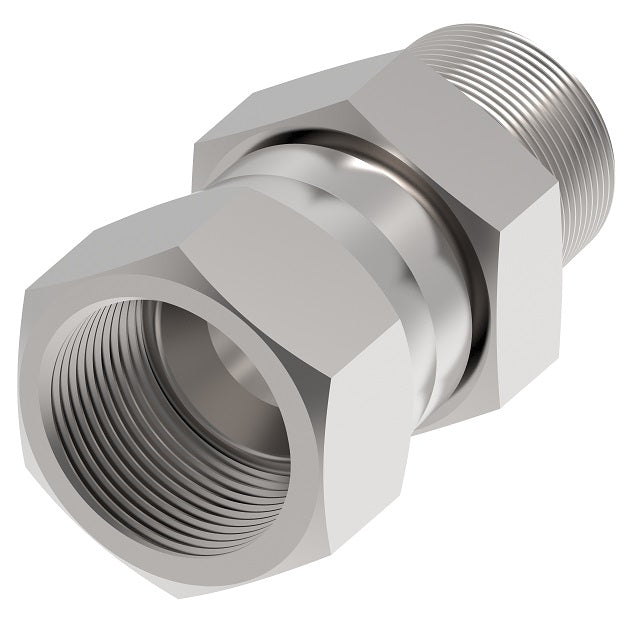

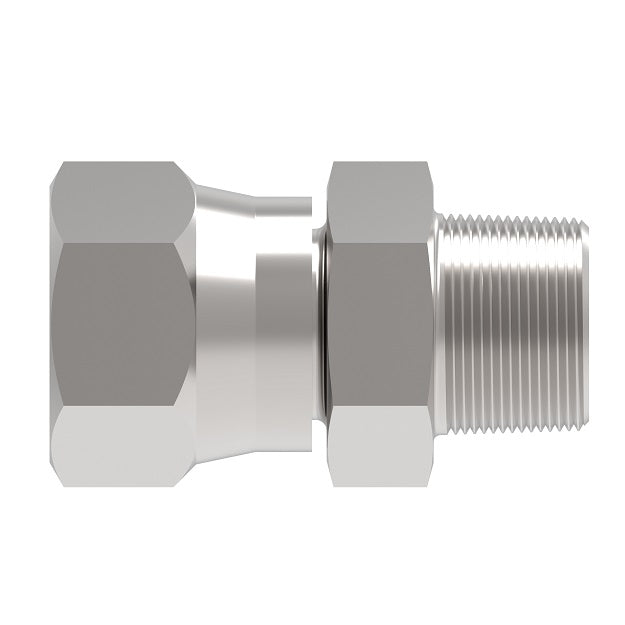

FF4180-0406S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -04 Female 37° JIC Swivel x M10 Male Metric Taper Pipe | Carbon Steel
FF4180-0406S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -04 Female 37° JIC Swivel x M10 Male Metric Taper Pipe | Carbon Steel
FF4180-0406S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -04 Female 37° JIC Swivel x M10 Male Metric Taper Pipe | Carbon Steel

FF4180-0406S Aeroquip by Danfoss | 37° JIC/Metric Adapter | -04 Female 37° JIC Swivel x M10 Male Metric Taper Pipe | Carbon Steel

Sale price$10.27

Aeroquip® by Danfoss
37° JIC/Metric Taper Adapter
Female 37° JIC Swivel x Male Metric Taper Pipe
Straight

Formerly Weatherhead series M9700x

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $9.65
40–79 $8.73
80+ $7.70
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Material(s):
  • Carbon Steel
Specifications and Approvals:
  • Swivel
Specifications:
  • Pipe thread per DIN 3852
Steel
Part Number 		Tube OD Taper Pipe Thread Metric Hex C Hex C1 D L
FF4180-0406S 1/4" M10x1.0 9/16" 9/16" .172" 1.25"
FF4180-0508S 5/16" M12x1.5 11/16" 5/8" .234" 1.54"
FF4180-0610S 3/8" M14x1.5 11/16" 11/16" .297" 1.60"
FF4180-0812S 1/2" M16x1.5 7/8" 7/8" .391" 1.78"
FF4180-1014S 5/8" M20x1.5 1" 1" .484" 1.91"
FF4180-1220S 3/4" M24x1.5 1-1/8" 1-1/8" .609" 2.04"
FF4180-1625S 1" M27x2.0 1-3/8" 1-1/2" .845" 2.30"
FF4180-2032S 1-1/4" M36x2.0 1-7/8" 2" 1.079" 2.43"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
