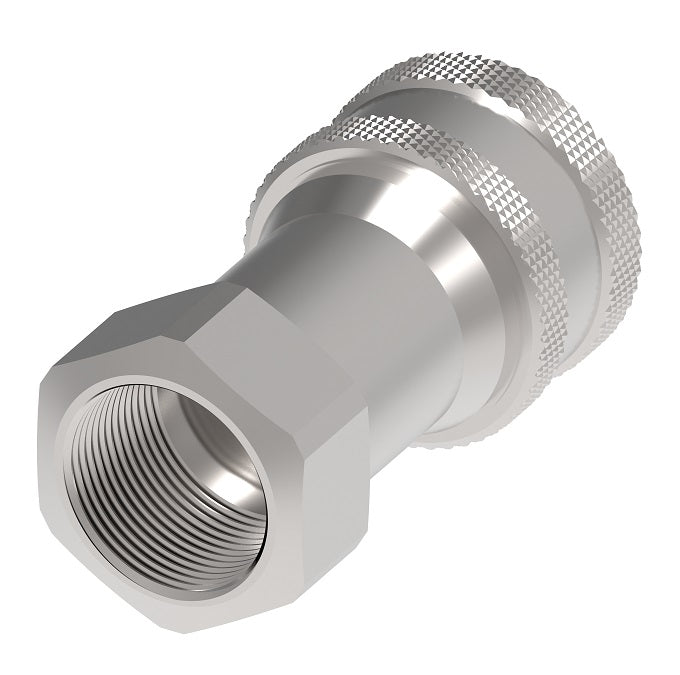

FD56-1207-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/8" Female NPT x 3/8" ISO 7241 Type A | Socket | Non-Valved | FKM | Carbon Steel
FD56-1207-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/8" Female NPT x 3/8" ISO 7241 Type A | Socket | Non-Valved | FKM | Carbon Steel
FD56-1207-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/8" Female NPT x 3/8" ISO 7241 Type A | Socket | Non-Valved | FKM | Carbon Steel
FD56-1207-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/8" Female NPT x 3/8" ISO 7241 Type A | Socket | Non-Valved | FKM | Carbon Steel

FD56-1207-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/8" Female NPT x 3/8" ISO 7241 Type A | Socket | Non-Valved | FKM | Carbon Steel

Sale price$45.58

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female NPT (Non-Valved)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves.

Note: Will not operate with valved coupling halves; no valve actuator.
Buy More, Save More!
Quantity Price Each
10–39 $42.85
40–79 $38.74
80+ $34.19
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 5600 Series
Shape:

Straight
Product Features:
  • Self-sealing poppet valve provides excellent high and low pressure sealing.
  • Streamlined valving provides minimum pressure drop.
Applications & Markets:
  • Hydraulic fluid transfer
  • Agricultural equipment
  • Construction equipment
  • Dump, snow plow and maintenance vehicles
  • In-plant manufacturing
ISO Standard:
  • Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size)
  • Standard seal materials: Buna-N, EPDM and FKM
Body Size Max. Operating Pressure Minimum Burst Pressure Connected Vacuum Connected Only Rated Flow Air Inclusion Fluid Loss
in bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/4 350 5000 1050 15000 28 4 1 0.50 0.50
3/8 280 4000 840 12000 28 23 6 1.5 1.3
5/8 280 4000 840 12000 28 45 12 2.8 2.8
3/4 280 4000 840 12000 28 106 28 10.0 8.2
1 280 4000 840 12000 28 189 50 14.2 14.2
Plug/Male (Figure 1)

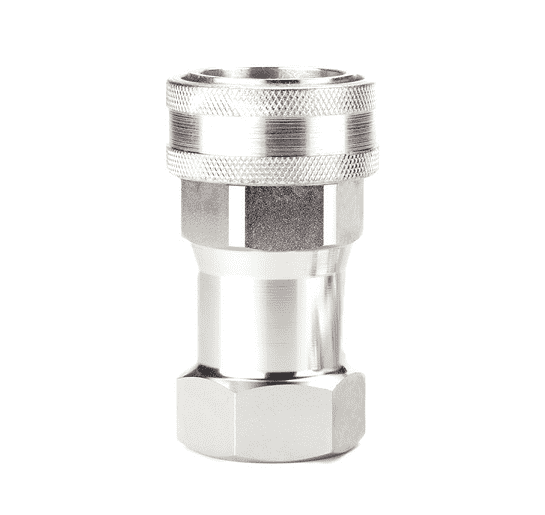

Socket/Female (Figure 2)
Complete (Figure 3)
Dimensions (Female NPT, Non-Valved)
Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Type Figure Dimensions
Buna-N FKM EPDM A B Hex 1
mm in mm in mm in
FD56-1037-04-04 (No Seal) Plug/Male* 1/4" 1/4" 1/4-18 Female NPT 1 31.5mm 1.24" - - 19.1mm 0.75"
FD56-1225-04-04 FD56-1207-04-04 FD56-1204-04-04 Socket/Female 1/4" 1/4" 1/4-18 Female NPT 2 46.0mm 1.81" 27.4mm 1.08" 22.4mm 0.88"
FD56-1226-04-04 FD56-1208-04-04 FD56-1205-04-04 Complete* 1/4" 1/4" 1/4-18 Female NPT 3 63.2mm 2.49" - - - -
FD56-1037-06-06 (No Seal) Plug/Male* 3/8" 3/8" 3/8-18 Female NPT 1 35.6mm 1.40" - - 22.4mm 0.88"
FD56-1225-06-06 FD56-1207-06-06 FD56-1204-06-06 Socket/Female 3/8" 3/8" 3/8-18 Female NPT 2 54.6mm 2.15" 31.2mm 1.23" 25.4mm 1.00"
FD56-1226-06-06 FD56-1208-06-06 FD56-1205-06-06 Complete* 3/8" 3/8" 3/8-18 Female NPT 3 71.1mm 2.80" - - - -
FD56-1037-08-10 (No Seal) Plug/Male* 5/8" 1/2" 1/2-14 Female NPT 1 48mm 1.89" - - 26.9mm 1.06"
FD56-1225-08-10 FD56-1207-08-10 FD56-1204-08-10 Socket/Female 5/8" 1/2" 1/2-14 Female NPT 2 66.3mm 2.61" 38.1mm 1.50" 30.2mm 1.19"
FD56-1226-08-10 FD56-1208-08-10 FD56-1205-08-10 Complete* 5/8" 1/2" 1/2-14 Female NPT 3 96mm 3.78" - - - -
FD56-1037-12-12 (No Seal) Plug/Male* 3/4" 3/4" 3/4-14 Female NPT 1 57.9mm 2.28" - - - -
FD56-1225-12-12 FD56-1207-12-12 FD56-1204-12-12 Socket/Female 3/4" 3/4" 3/4-14 Female NPT 2 82.6mm 3.25" 46.0mm 1.81" 38.1mm 1.50"
FD56-1226-12-12 FD56-1208-12-12 FD56-1205-12-12 Complete* 3/4" 3/4" 3/4-14 Female NPT 3 113.3mm 4.46" - - - -
FD56-1037-16-16 (No Seal) Plug/Male* 1" 1" 1-11-1/2 Female NPT 1 70.4mm 2.77" - - 41.1mm 1.62"
FD56-1225-16-16 FD56-1207-16-16 FD56-1204-16-16 Socket/Female 1" 1" 1-11-1/2 Female NPT 2 97mm 3.82" 53.3mm 2.10" 42.9mm 1.69"
FD56-1226-16-16 FD56-1208-16-16 FD56-1205-16-16 Complete* 1" 1" 1-11-1/2 Female NPT 3 140.7mm 5.54" - - - -

* Male halves contain no seals.
