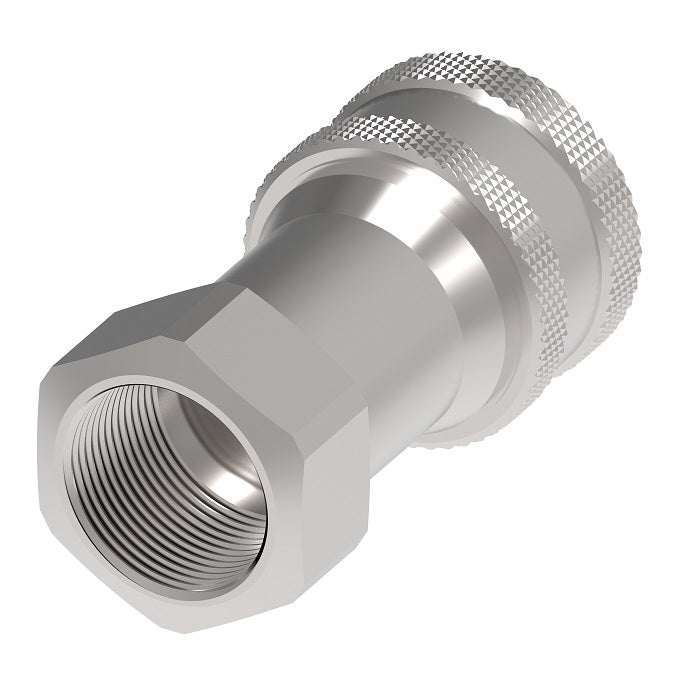

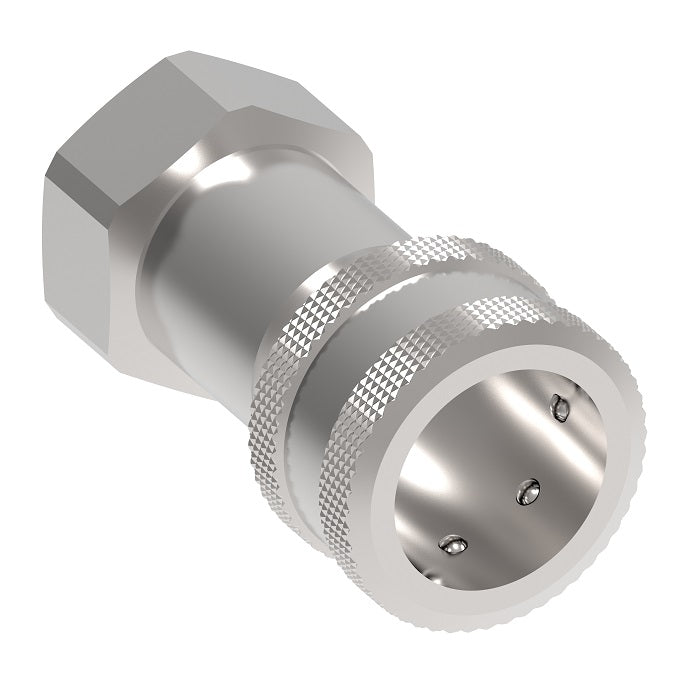

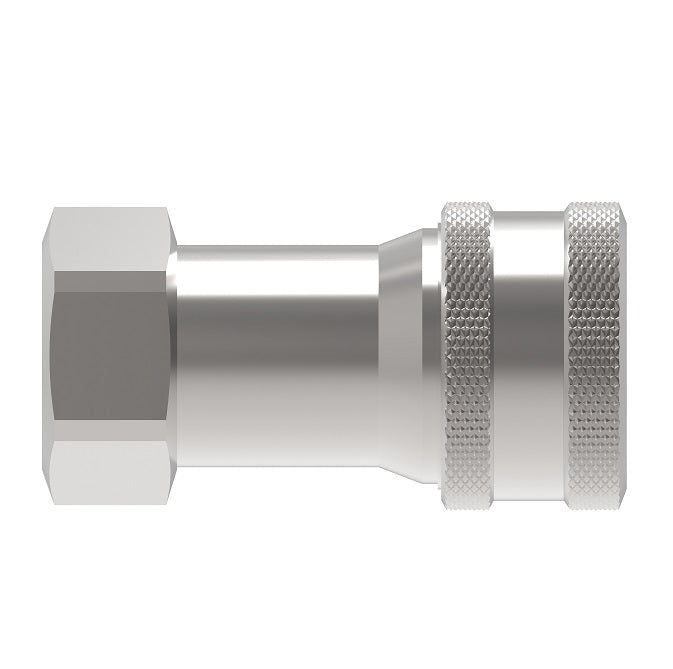

5601-12-12S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 3/4" ISO 7241 Type A | Socket | Valved | Buna-N Seal | Carbon Steel

Sale price$83.79

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female NPT (Valved)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves.


In stock

Product Data:

Brand:
  • Hansen
Series:
  • 5600 Series
Shape:

Straight
Product Features:
  • Self-sealing poppet valve provides excellent high and low pressure sealing.
  • Streamlined valving provides minimum pressure drop.
Applications & Markets:
  • Hydraulic fluid transfer
  • Agricultural equipment
  • Construction equipment
  • Dump, snow plow and maintenance vehicles
  • In-plant manufacturing
ISO Standard:
  • Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size)
  • Standard seal materials: Buna-N, EPDM and FKM
Body Size Max. Operating Pressure Minimum Burst Pressure Connected Vacuum Connected Only Rated Flow Air Inclusion Fluid Loss
in bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/4 350 5000 1050 15000 28 4 1 0.50 0.50
3/8 280 4000 840 12000 28 23 6 1.5 1.3
5/8 280 4000 840 12000 28 45 12 2.8 2.8
3/4 280 4000 840 12000 28 106 28 10.0 8.2
1 280 4000 840 12000 28 189 50 14.2 14.2
Plug/Male (Figure 1)
Socket/Female (Figure 2)
Complete (Figure 3)
Dimensions (Female NPT, Valved)
Part Number Coupling
Type		 Port
Size		 Size Thread Type Figure Dimensions
Buna-N FKM EPDM A B Hex 1
mm in mm in mm in
5602-2-4S FD56-1062-02-04 5644-2-4S Plug/Male 1/4" 1/8" 1/8-27 Female NPT 1 31.5mm 1.24" - - 14.2mm 0.56"
5601-2-4S FD56-1064-02-04 5643-2-4S Socket/Female 1/4" 1/8" 1/8-27 Female NPT 2 46mm 1.81" 27.4mm 1.08" 22.4mm 0.88"
5600-2-4S FD56-1065-02-04 5642-2-4S Complete 1/4" 1/8" 1/8-27 Female NPT 3 61.5mm 2.42" - - - -
5602-4-4S FD56-1062-04-04 5644-4-4S Plug/Male 1/4" 1/4" 1/4-18 Female NPT 1 33.3mm 1.31" - - 19.1mm 0.75"
5601-4-4S FD56-1064-04-04 5643-4-4S Socket/Female 1/4" 1/4" 1/4-18 Female NPT 2 46mm 1.81" 27.4mm 1.08" 22.4mm 0.88"
5600-4-4S FD56-1065-04-04 5642-4-4S Complete 1/4" 1/4" 1/4-18 Female NPT 3 63.2mm 2.49" - - - -
5602-6-6S FD56-1062-06-06 5644-6-6S Plug/Male 3/8" 3/8" 3/8-18 Female NPT 1 37.3mm 1.47" - - 22.4mm 0.88"
5601-6-6S FD56-1064-06-06 5643-6-6S Socket/Female 3/8" 3/8" 3/8-18 Female NPT 2 54.6mm 2.15" 31.2mm 1.23" 25.4mm 1.00"
5600-6-6S FD56-1065-06-06 5642-6-6S Complete 3/8" 3/8" 3/8-18 Female NPT 3 71.1mm 2.80" - - - -
5602-8-10S FD56-1062-08-10 5644-8-10S Plug/Male 5/8" 1/2" 1/2-14 Female NPT 1 51.3mm 2.02" - - 26.9mm 1.06"
5601-8-10S FD56-1064-08-10 5643-8-10S Socket/Female 5/8" 1/2" 1/2-14 Female NPT 2 66.3mm 2.61" 38.1mm 1.50" 30.2mm 1.19"
5600-8-10S FD56-1065-08-10 5642-8-10S Complete 5/8" 1/2" 1/2-14 Female NPT 3 96mm 3.78" - - - -
5602-12-10S FD56-1062-12-10 5644-12-10S Plug/Male 5/8" 3/4" 3/4-14 Female NPT 1 54.9mm 2.16" - - 35.1mm 1.38"
5601-12-10S FD56-1064-12-10 5643-12-10S Socket/Female 5/8" 3/4" 3/4-14 Female NPT 2 66.3mm 2.61" 38.1mm 1.50" 33.3mm 1.31"
5600-12-10S FD56-1065-12-10 5642-12-10S Complete 5/8" 3/4" 3/4-14 Female NPT 3 103.1mm 4.06" - - - -
5602-12-12S FD56-1062-12-12 5644-12-12S Plug/Male 3/4" 3/4" 3/4-14 Female NPT 1 64.8mm 2.55" - - 35.1mm 1.38"
5601-12-12S FD56-1064-12-12 5643-12-12S Socket/Female 3/4" 3/4" 3/4-14 Female NPT 2 82.6mm 3.25" 46mm 1.81" 38.1mm 1.50"
5600-12-12S FD56-1065-12-12 5642-12-12S Complete 3/4" 3/4" 3/4-14 Female NPT 3 115.8mm 4.56" - - - -
5602-16-16S FD56-1062-16-16 5644-16-16S Plug/Male 1" 1" 1-11 1/2 Female NPT 1 78.7mm 3.10" - - 41.1mm 1.62"
5601-16-16S FD56-1064-16-16 5643-16-16S Socket/Female 1" 1" 1-11-1/2 Female NPT 2 97mm 3.82" 53.3mm 2.10" 42.9mm 1.69"
5600-16-16S FD56-1065-16-16 5642-16-16S Complete 1" 1" 1-11-1/2 Female NPT 3 123.4mm 4.86" - - - -
Dimensions (Female NPT, Valved with Sleeve Lock)
Part Number Coupling
Type		 Port
Size		 Size Thread Type Figure Dimensions
Buna-N FKM EPDM A B Hex 1
mm in mm in mm in
FD56-1239-08-10 - - Socket/Female 5/8" 1/2" 1/2-14 Female NPT 2 66.3mm 2.61" 38.1mm 1.50" 30.2mm 1.19"
FD56-1239-16-16 - - Socket/Female 1" 1" 1-11-1/2 Female NPT 2 97.0mm 3.82" 54.1mm 2.13" 42.9mm 1.69"
