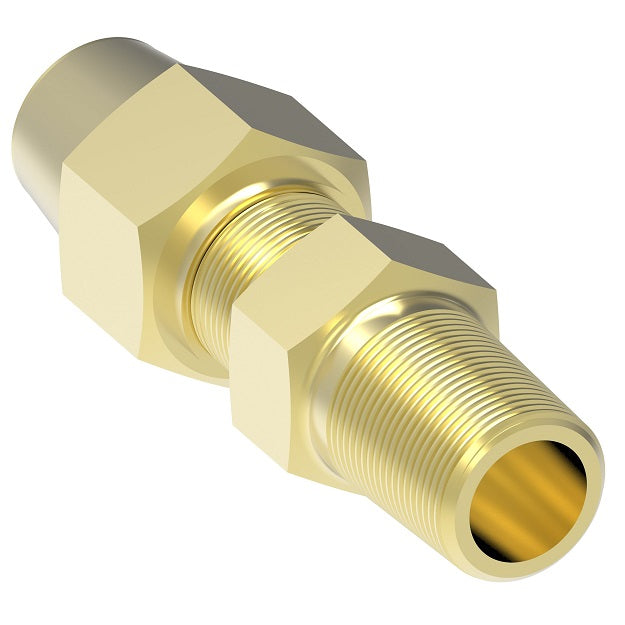

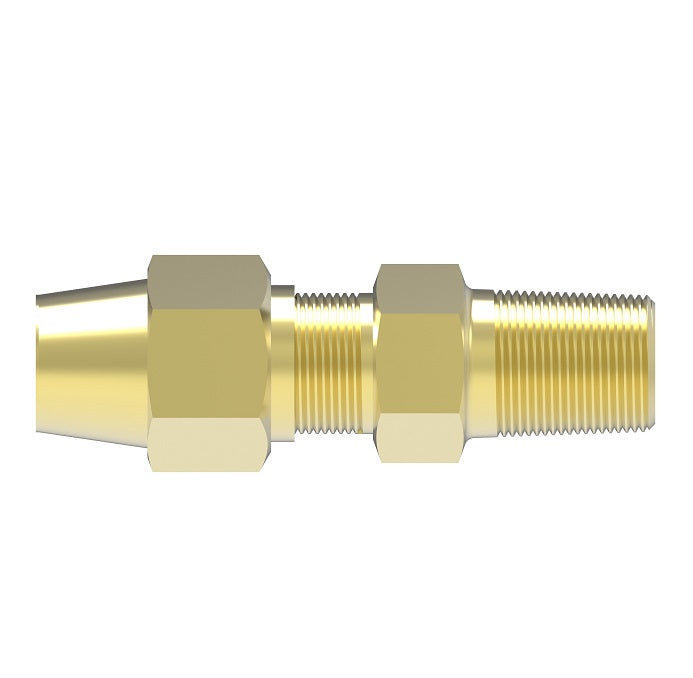

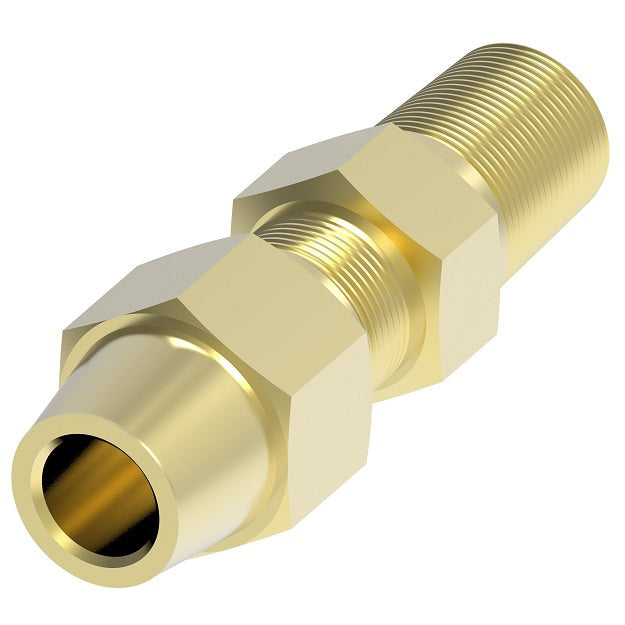

1681X4X4 by Danfoss | SelfAlign Adapter | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass
1681X4X4 by Danfoss | SelfAlign Adapter | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass
1681X4X4 by Danfoss | SelfAlign Adapter | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass

1681X4X4 by Danfoss | SelfAlign Adapter | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass

Minimum Order Quantity: 5 Units

Sale price$4.98

Aeroquip® by Danfoss
SelfAlign Adapter - Male Connector (with Long Nut)
SelfAlign End x Male NPTF
Straight
Buy More, Save More!
Quantity Price Each
20–39 $4.68
40–79 $4.23
80+ $3.74
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Male Pipe Thread
1681X4 1/4" 1/8"
1681X4X4 1/4" 1/4"
1681X6 3/8" 1/4"
