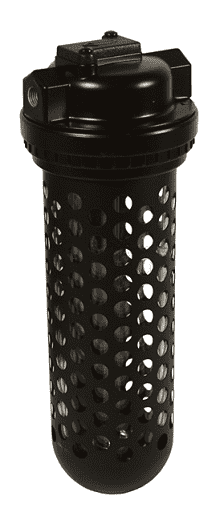

X03-02 Dixon Valve Wilkerson 1/4" Manual In-Line Desiccant Dryer with Transparent Bowl - 10 SCFM
Dixon

X03-02 Dixon Valve Wilkerson 1/4" Manual In-Line Desiccant Dryer with Transparent Bowl - 10 SCFM

Sale price$455.90

Wilkerson Manual In-Line Desiccant Dryers Manual air dryers are used to remove water vapor from compressed air systems, in applications such as paint spraying, laboratory instruments and small control air systems. Filtration for absorber type dryers is important to protect the desiccant bed from contamination. Cleaner incoming air will result in better performance, longer life and fewer service problems. To regenerate silica gel desiccant, it must be heated to at least 350 deg. F for approximately 3 hours or until color has changed from pink to blue. Allow desiccant to cool to room temperature before pouring back into unit bowl. Note: An after-filter should be placed downstream from the desiccant dryer to ensure solid contaminants such as desiccant dust do not migrate downstream. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Product Data:
Features:
  • 1.64 lb. bowl.
  • Will dry up to 4400 standard cubic feet of air.
  • Desiccant is good for approximately 440 minutes at maximum continuous air flow before regeneration is required.
  • Silica gel changes from blue to pink to indicate the need to replace or regenerate the desiccant.
  • Slotted bowl guard for visual detection of color change.
  • No electrical connection necessary.
  • Provides atmospheric dew point of -45 deg. F with dry desiccant at 100 PSI and 70 deg. F.
  • Maximum operating conditions:
    • Transparent Bowl: 150 PSIG (10 bar) and 125 deg. F (52 deg. C)
    • Metal Bowl: 150 PSIG (10 bar) and 150 deg. F (66 deg. C)
Part Number Size SCFM PSI Weight (Lbs.)
With Transparent Bowl
X03-02 1/4" 10 150 (10.20 bar) 8.0600
With Metal Bowl
X03-02MB 1/4" 10 150 (10.20 bar) 5.2375
