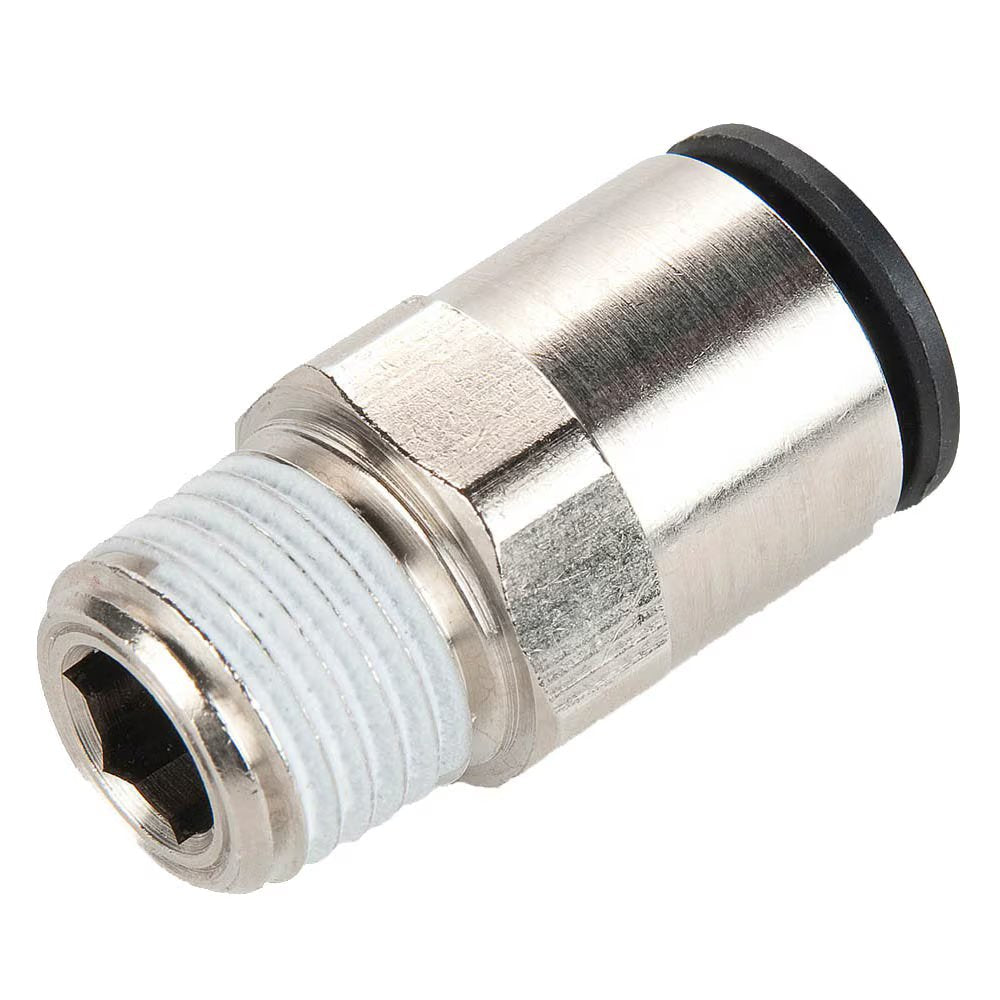

W68LF-8M-2 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Threaded Fittings | 8mm Connector x 1/8 Male NPT Thread | .55" Width | Straight | Brass | Pack of 500
by Parker Hannifin
Push-to-Connect Fittings:W68LF Male Connector Metric to NPT
Package Quantity: 500 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $3,568.59 |
| 4–9 | $3,416.73 |
| 10+ | $3,037.10 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | NPT (C) | F1 | F2 | H | K |
| W68LF-4M-2 | 4 mm | 1/8" | 11 mm | 3 mm | .33" | .47" |
| W68LF-4M-4 | 4 mm | 1/4" | 14 mm | 3 mm | .28" | .59" |
| W68LF-6M-2 | 6 mm | 1/8" | 11 mm | 4 mm | .45" | .47" |
| W68LF-6M-4 | 6 mm | 1/4" | 14 mm | 4 mm | .33" | .59" |
| W68LF-8M-2 | 8 mm | 1/8" | 13 mm | 5 mm | .79" | .55" |
| W68LF-8M-4 | 8 mm | 1/4" | 14 mm | 6 mm | .66" | .59" |
| W68LF-8M-6 | 8 mm | 3/8" | 18 mm | 6 mm | .46" | .77" |
| W68LF-10M-4 | 10 mm | 1/4" | 16 mm | 7 mm | .79" | .69" |
| W68LF-10M-6 | 10 mm | 3/8" | 18 mm | 8 mm | .65" | .77" |
| W68LF-10M-8 | 10 mm | 1/2" | 22 mm | 8 mm | .55" | .95" |
| W68LF-12M-6 | 12 mm | 3/8" | 19 mm | 9 mm | .95" | .83" |
| W68LF-12M-8 | 12 mm | 1/2" | 22 mm | 10 mm | .77" | .95" |
