FBTFEF-0312-031-50 Versilon™ by Saint Gobain | 1/4" ID x 5/16" OD x .031" Wall | PTFE-F High Temperature Flexible Tubing | 50' Package Length
Minimum Order Quantity: 60 Units
Saint Gobain

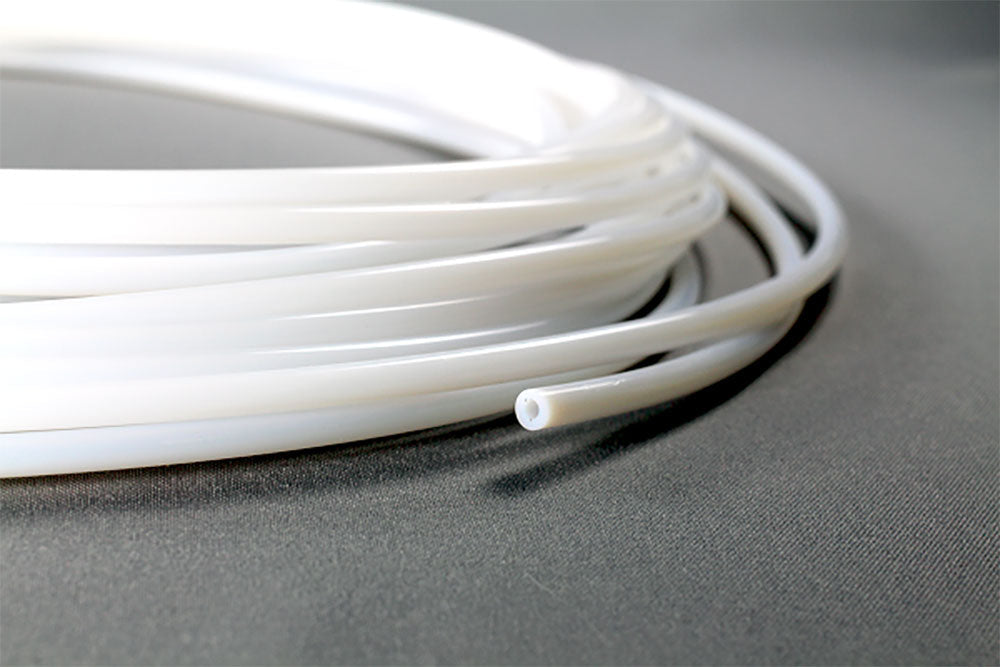

Versilon™ PTFE-F High Temperature Flexible Tubing
Saint-Gobain's stringent materials quality control, state-of-the-art process control and food and beverage regulatory compliance expertise are why food and beverage dispensing equipment manufacturers use Versilon PTFE-F tubing. Versilon PTFE-F tubing provides excellent chemical resistance and a good diffusion-resistance.
Saint-Gobain's careful selection of resin type, particle size, temperature and pressure produces smooth and dimensionally stable tubing. Made out of polytetrafluoroethylene resin, PTFE-F tubing has the highest working temperature of any fluoropolymer tubing available today. In order to consistently ensure the quality of our products, we only use raw materials from leading manufacturers. We are able to produce tubes in various dimensions with different material properties according to the customer needs and the corresponding requirements.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $167.40 |
| 30–59 | $151.37 |
| 60+ | $133.56 |
Product Data:
73
SPECIFICATIONS
| Application: | Food and Beverage Dispensing | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PTFE-F |
| Reinforcement: | N/A | Cover: | N/A |
| Temperature Range: | -450°F (-268°C) to 500°F (260°C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | Regulation (EU) No 10/2011, Regulation (EC) No 1935/2004, FDA |
| Literature: | Versilon™ PTFE-F High Temperature Flexible Tubing (PDF) | ||
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) |
Outside Diameter (in.) |
Wall Thickness (in.) |
Min. Bend Radius (in.) |
Max. Working Pressure at 73 deg. F (PSI) |
Length |
|---|---|---|---|---|---|---|
| FBTFEF-0125-031-50 | 1/16" | 1/8" | 0.031" (1/32") | 1/2" | 197 PSI | 50ft |
| FBTFEF-0187-031-50 | 1/8" | 3/16" | 0.031" (1/32") | - | - | 50ft |
| FBTFEF-0250-031-50 | 3/16" | 1/4" | 0.031" (1/32") | 1" | 92 PSI | 50ft |
| FBTFEF-0250-047-50 | 5/32" | 1/4" | 0.047" (3/64") | 3/4" | 146 PSI | 50ft |
| FBTFEF-0250-062-50 | 1/8" | 1/4" | 0.062" (1/16") | 1/2" | 199 PSI | 50ft |
| FBTFEF-0312-031-50 | 1/4" | 5/16" | 0.031" (1/32") | 1-3/4" | 73 PSI | 50ft |
| FBTFEF-0312-062-50 | 3/16" | 5/16" | 0.062" (1/16") | 1-1/2" | 156 PSI | 50ft |
| FBTFEF-0375-031-50 | 5/16" | 3/8" | 0.031" (1/32") | 2-1/2" | 66 PSI | 50ft |
| FBTFEF-0375-062-50 | 1/4" | 3/8" | 0.062" (1/16") | 1" | 127 PSI | 50ft |
| FBTFEF-0437-031-50 | 3/8" | 7/16" | 0.031" (1/32") | - | - | 50ft |
| FBTFEF-0500-031-50 | 7/16" | 1/2" | 0.031" (1/32") | 4" | 52 PSI | 50ft |
| FBTFEF-0500-062-50 | 3/8" | 1/2" | 0.062" (1/16") | 2" | 93 PSI | 50ft |
| FBTFEF-0625-062-50 | 1/2" | 5/8" | 0.062" (1/16") | 3" | 73 PSI | 50ft |
| FBTFEF-0750-062-50 | 5/8" | 3/4" | 0.062" (1/16") | 6" | 66 PSI | 50ft |
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
