FXFE6.CONV.08S Versilon™ by Saint Gobain | 3/8" I.D. x 1/2" O.D. x .023" Wall | ConvoFlex | Convoluted Flexible FEP Tubing | 100' Package Length

FXFE6.CONV.08S Versilon™ by Saint Gobain | 3/8" I.D. x 1/2" O.D. x .023" Wall | ConvoFlex | Convoluted Flexible FEP Tubing | 100' Package Length

Minimum Order Quantity: 2 Units

Sale price$1,416.57

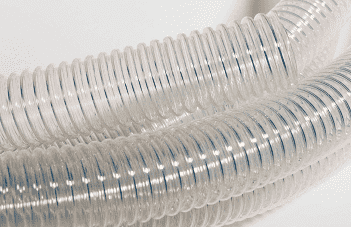

Saint Gobain - Versilon™ Convoflex Convoluted Flexible FEP Tubing

Versilon™ ConvoFlex tubing is resistant to chemicals and elevated temperatures. It offers read-through transparency and features a spiral design that aids in self-flushing and cleaning. Versilon™ ConvoFlex tubing has outstanding flexibility; high dielectric strength and superior chemical resistance – making it an excellent choice for wire conduit. This flexible tubing is used in the aerospace, semiconductor and chemical processing applications.

Versilon™ ConvoFlex tubing is specifically designed to be used with the Versilon™ line of Flare Grip molded PFA flare fittings. There is no need for expensive straight cuffs — Versilon™ ConvoFlex is easily cold flared with our FastFLARE™ cold forming tools.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 EA

Buy More, Save More!
Quantity Price Each
4–7 $1,331.58
8–14 $1,274.91
15+ $1,133.26
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Versilon
Series:
  • ConvoFlex
Color(s):
  • Clear/Semi-Clear

SPECIFICATIONS

Application: Biotech, Pharmaceutical, Aerospace, Semiconductor, Chemical Processing SAE Rating: N/A
Other Ratings: N/A Tube: FEP
Reinforcement: N/A Cover: N/A
Temperature Range: N/A Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA
Literature: Versilon™™ Convoflex Convoluted Flexible FEP Tubing (PDF)
Other Features:
  • Flexible convoluted construction
  • Easily cold flared for use with Furon® Flare Grip tube fittings
  • Read-through transparency
  • Virtually unlimited length capability
  • No need for expensive straight cuffs
  • Continuous flow path - self-flushing
  • Excellent as chemically resistant wire conduit
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Burst Pressure (PSI)* Cv**
FXFE6.CONV.06S 1/4" 3/8" .020" 1/2" 100 PSI 0.31
FXFE6.CONV.08S 3/8" 1/2" .023" 3/4" 70 PSI 0.83
FXFE6.CONV.10S 1/2" 5/8" .025" 1" 60 PSI 1.64
FXFE6.CONV.12S 5/8" 3/4" .025" 1-1/2" 50 PSI 2.78
FXFE6.CONV.14S 3/4" 7/8" .025" 2" 40 PSI 4.56
FXFE6.CONV.16S 7/8" 1" .025" 2-1/2" 38 PSI 8.20
*Each individual application should be evaluated to determine the degree of safety factor to be used with these values. **Based on a long radius sweep. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
