AE300012 Versilon™ by Saint Gobain | 3/16" I.D. x 5/16" O.D. x 1/16" Wall | Formulation 2001 | Tubing | 50' Package Length

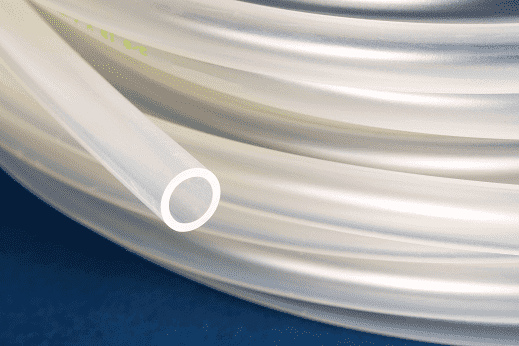

Saint Gobain - Versilon™ Tubing - Formulation 2001
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $95.81 |
| 20–59 | $86.64 |
| 60+ | $76.45 |
Product Data:
22
| Application: | Chemical Transfer, Perstaltic Pumps, Soap and Detergent Dispensing, Ink Transfer, Water Purification Lines, Food and Beverage, Analytical Instruments, Ideal for Condensers, Incubators, Desiccators, Gas and Drain Lines | ||
|---|---|---|---|
| Temperature Range: | -108 deg. F (-78 deg. C) - 135 deg. F (57 deg. C) (Low Temp. Flexibility: -100 deg. F (-73 deg. C)) | Specifications | FDA 21 CFR, 177.2600 |
| Other Features: | |||
|
|||
| Part Number | Inside Diameter (in.) | Outside Diameter (in.) | Wall Thickness (in.) | Bend Radius (in.) | Max. Suggested Working Pressure at 73 deg. F (PSI)* | Vacuum Rating at 73 deg. F (in. Hg) |
|---|---|---|---|---|---|---|
| AE300003 | 1/16" | 3/16" | 1/16" | 1/4" | 45 PSI | 29.9 in. Hg |
| AE300007 | 1/8" | 1/4" | 1/16" | 1/2" | 30 PSI | 29.9 in. Hg |
| AE300012 | 3/16" | 5/16" | 1/16" | 1/2" | 22 PSI | 29.9 in. Hg |
| AE300017 | 1/4" | 3/8" | 1/16" | 1" | 17 PSI | 29.9 in. Hg |
| AE300022 | 5/16" | 7/16" | 1/16" | 1-1/2" | 14 PSI | 25.0 in. Hg |
| AE300027 | 3/8" | 1/2" | 1/16" | 2" | 12 PSI | 15.0 in. Hg |
| AE300038 | 1/2" | 3/4" | 1/8" | 1-1/2" | 16 PSI | 29.9 in. Hg |
| AE300046 | 5/8" | 7/8" | 1/8" | 2-1/2" | 13 PSI | 25.0 in. Hg |
| AE300053 | 3/4" | 1" | 1/8" | 3" | 11 PSI | 15.0 in. Hg |
| AE300064 | 1" | 1-3/8" | 3/16" | 3-3/4" | 13 PSI | 17.0 in. Hg |
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
