VA4002 by Fenner Drives | Powermax V Belt Idler | Belt Size: A | Bearing Type: 6203-2RS | Bore Size: 17mm | Grooves: 1
Fenner Drives - Powermax Pulleys & Idlers - V Belt Idlers
Product Data:
Brand:
Series:
| Overview: | |||
|---|---|---|---|
|
|||
| Description: | |||
|

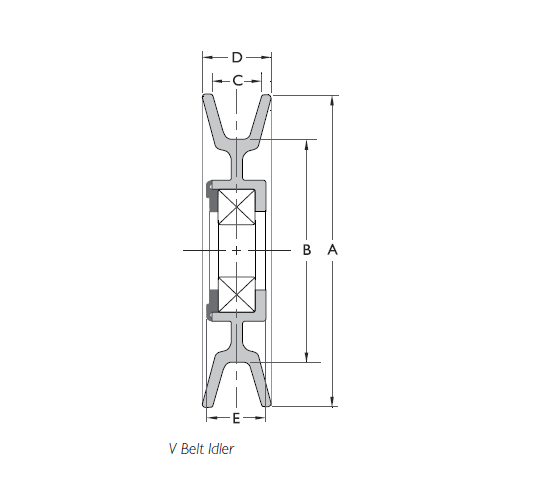

| Part Number | Type | Grooves | A | B | C | D | E | Belt Size | Bearing Type | Bore Sizes |
|---|---|---|---|---|---|---|---|---|---|---|
| VA3001 | 1 | 1 | 3" | 2" | 0.5" | 0.7" | 0.81" | A | 6203-2RS | 17mm |
| VA3002 | 1 | 1 | 3.1" | 1.84" | 0.63" | 0.78" | 0.81" | B | 6203-2RS | 17mm |
| VA4001 | 1 | 1 | 3.98" | 2.99" | 0.5" | 0.7" | 0.81" | A | 6203-2RS | 17mm |
| VA4002 | 1 | 1 | 4" | 2.84" | 0.64" | 0.86" | 0.81" | B | 6203-2RS | 17mm |
| VA5001 | 1 | 1 | 5.04" | 3.84" | 0.65" | 0.8" | 0.82" | B | 6203-2RS | 17mm |
| VA6001 | 1 | 1 | 6.03" | 5.12" | 0.5" | 0.72" | 0.81" | A | 6203-2RS | 17mm |
| VA6250? | 1 | 1 | 6.25" | 5" | 0.61" | 0.95" | 0.72" | A/B | 6203-2RS | 17mm |
| VA7501 | 1 | 1 | 7.5" | 6.6" | 0.54" | 0.72" | 0.75" | A | 6203-2RS | 17mm |
| V2B6280 | 2 | 2 | 6.28" | 5.18" | 0.64" | 1.72" | 1.85" | B/5V | 6203-2RS | .510/.520 |
| V3B6280 | 2 | 3 | 6.28" | 5.18" | 0.64" | 2.44" | 2.58" | B/5V | 6203-2RS | .510/.520 |
| V4B6280 | 2 | 4 | 6.28" | 5.18" | 0.64" | 3.16" | 3.33" | B/5V | 6203-2RS | .510/.520 |
? Insertion molded bearing
* Many idlers are, or can be, made into a driven pulley with a 5/8" or 3/4" bore
