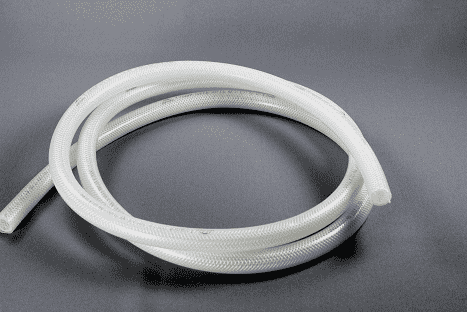

AHJ1725NSF Tygon® by Saint Gobain | 1-1/4" ID x 1.636" OD | SPT-3370 IB | Tubing for Food & Beverage Transfer Under Pressure | 25' Package Length

AHJ1725NSF Tygon® by Saint Gobain | 1-1/4" ID x 1.636" OD | SPT-3370 IB | Tubing for Food & Beverage Transfer Under Pressure | 25' Package Length

Minimum Order Quantity: 12 Units

Sale price$1,502.41

Saint Gobain - Tygon® Tubing for Food & Beverage Transfer Under Pressure - Formulation SPT-3370 IB

No by the foot sales. This is a Packaged Length product. 2-14 Week Lead Times.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,412.27
8–14 $1,352.17
15+ $1,201.93
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tygon
Series:
  • SPT-3370 IB
Color(s):
  • Clear/Semi-Clear
Application: Beverage Dispensing, Food and Dairy Processing Bottle Filling, Hot Fill Lines, Food Handling SAE Rating: N/A
Other Ratings: N/A Tube: Silicone
Reinforcement: Braided Reinforcement Cover: N/A
Temperature Range: -112 deg. F (-80 deg. C) - 320 deg. F (160 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3-A Sanitary Standard No. 18-01, FDA 21 CFR Part 175.300, NSF 51**
Literature: Tygon® Tubing for Food & Beverage Transfer Under Pressure - Formulation SPT-3370 IB (PDF)
Other Features:
  • Consistently smooth inner surface limits particle entrapment
  • Platinum cured to minimize extractable
  • Tough braid reinforcement permits use under elevated working pressures
  • Withstands repeated CIP and SIP cleaning and sterilization
  • Custom color striping available - Please Call for more information
  • Tygon® Tubing for Food & Beverage Transfer Under Pressure - Formulation SPT-3370 IB is not intended as an implant material.
Part Number Inside Diameter (in.) Outside Diameter (in.) Min. Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Max. Working Pressure at 320 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Vacuum Rating at 320 deg. F (in. Hg) Length
AHJ1718NSF 3/16" 0.443" 1/4" 170 PSI 125 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AHJ1719NSF 1/4" 0.515" 1/2" 150 PSI 105 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AHJ1720NSF 3/8" 0.687" 3/4" 130 PSI 95 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AHJ1721NSF 1/2" 0.847" 1-1/4" 125 PSI 90 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AHJ1722NSF 5/8" 0.980" 1-1/2" 110 PSI 80 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AHJ1671NSF 3/4" 1.150" 2-1/4" 100 PSI 75 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AHJ1724NSF 1" 1.390" 3-1/2" 70 PSI 50 PSI 15.0 in. Hg 10.0 in. Hg 50ft
AHJ1725NSF 1-1/4" 1.636" 5-3/4" 55 PSI 40 PSI 10.0 in. Hg 5.0 in. Hg 25ft
AHJ1726NSF 1-1/2" 1.900" 6-3/4" 40 PSI 30 PSI 5.0 in. Hg 0.0 in. Hg 25ft
AHJ1798NSF 2" 2.432" 8-3/4" 20 PSI 12 PSI 0.0 in. Hg 0.0 in. Hg 25ft
* Working pressures are calculated at a 1:4 ratio relative to burst pressure using ASTM D1599 **Only US Manufacturing sites are NSF compliant. For EU manufacturing sites, NSF compliance is in progress. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
