TGK-01 by AdaptAll | BSPP, BSPT, DIN, KOBELCO, KOMATSU, Metric Thread Gauge Kit TGK01 TGK-01-HW

TGK-01 by AdaptAll | BSPP, BSPT, DIN, KOBELCO, KOMATSU, Metric Thread Gauge Kit TGK01 TGK-01-HW

Sale price$38.35

Adaptall Fitting Identification Gauge Kit for: BSPP, BSPT, DIN, KOBELCO, KOMATSU, Metric Threads

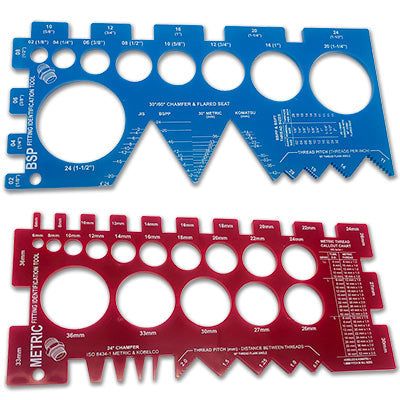

The BSPP & Metric Thread Gauge Kit is a convenient and affordable solution to identifying Metric and British threaded fittings in the field, shop, or store front. Featuring one British (BSPP, BSPT, JIS) tool and one Metric (MM, DIN, Kobelco, Komatsu) tool in a vinyl pouch, this tool allows you to identify internal threads, external threads, thread pitch, as well as chamfer and nose cone angles specific to JIS, BSPP, DIN, Komatsu, Kobelco, and 30/60 degree Metric.

In stock
Buy More, Save More!
Quantity Price Each
10–39 $36.05
40–79 $32.60
80+ $28.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • TGK Series
Sizes Covered
  • BSPP/BSPT/JIS Tool (x1):
    • 02 (1/8") 1/8-28
    • 04 (1/4") 1/4-19
    • 06 (3/8") 3/8-19
    • 08 (1/2") 1/2-14
    • 10 (5/8)" 5/8-14
    • 12 (3/4") 3/4-14
    • 16 (1") 1-11
    • 20 (1 1/4") 1 1/4-11
    • 24 (1 1/2") 1 1/2-11
  • Metric/DIN Tube/Kobelco/Komatsu Tool (x1):
    • M6 x 0.75
    • M6 x 1.0
    • M8 x 0.75
    • M8 x 1.0 / LL04
    • M10 x 1.0 / LL06
    • M10 x 1.25
    • M12 x 1.0 / LL08
    • M12 x 1.5 / L06
    • M14 x 1.0 / LL10
    • M14 x 1.5 / L08 & S06
    • M16 x 1.0 / LL12
    • M16 x 1.5 / L10 & S08
    • M18 x 1.5 / L12 & S10
    • M20 x 1.5 / S12
    • M22 x 1.5 / L15 & S14
    • M24 x 1.5 / S16
    • M26 x 1.5 / L18
    • M27 x 2.0
    • M30 x 2.0 / L22 & S20
    • M33 x 2.0
    • M36 x 2.0 / L28 & S25
Thread Pitches Covered
  • MM Between Threads:
    • 0.75mm
    • 1.0mm
    • 1.25mm
    • 1.5mm
    • 2.0mm
  • Threads Per Inch:
    • 28 TPI
    • 19 TPI
    • 14 TPI
    • 11 TPI
Part Number Description
TGK-01 BSPP, BSPT, DIN, KOBELCO, KOMATSU, Metric Thread Gauge Kit
TGK-02 JIC, NPT, ORB, ORFS Thread Gauge Kit

Adaptall

Adaptall specializes in the conversion of hydraulic adapters and fittings, between International (“Metric”) and American (“Imperial”) thread types. These include British (BSPP, & BSPT), JIS, Kobelco, Komatsu, and Metric on the International side, as well as JIC, NPT, ORFS, and SAE ORB for Imperial thread types. Industries served include construction, mining / aggregates, pulp & paper, agriculture, manufacturing, industrial, marine, aerospace, military, OEM and more.
