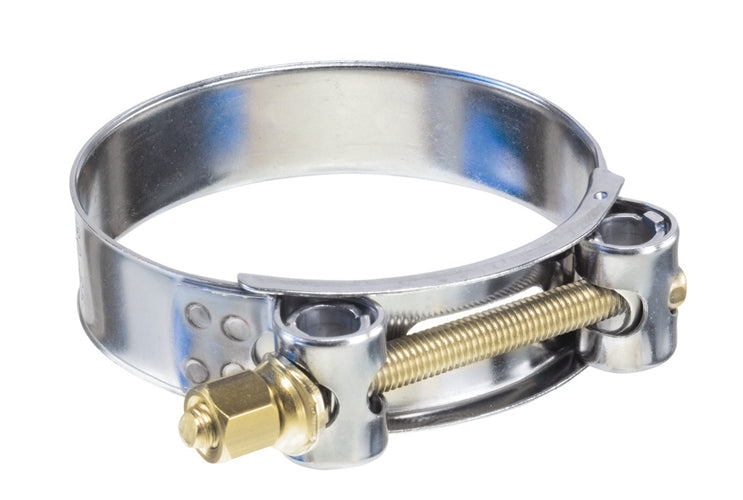

TBC-SSC148 by Kuriyama | Carbon Steel Bolt and Nuts | Heavy Duty T-Bolt Clamp | Size Range: 5-17/32" - 5-13/16" | Band Width: 1-1/32" | Torque | 29ft. Lbs. | 304 Stainless Steel

TBC-SSC148 by Kuriyama | Carbon Steel Bolt and Nuts | Heavy Duty T-Bolt Clamp | Size Range: 5-17/32" - 5-13/16" | Band Width: 1-1/32" | Torque | 29ft. Lbs. | 304 Stainless Steel

Sale price$16.67



Kuriyama Couplings™ - T-Bolt Clamps - Heavy Duty - 304 Stainless Steel Band, Carbon Steel Bolt and Nut

Buy More, Save More!
Quantity Price Each
10–39 $15.67
40–79 $14.17
80+ $12.50
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • 304 Stainless Steel
  • Carbon Steel
Clamp Width:

1.03125"

Minimum Clamp I.D.:

5.53125"
Applications:
  • Agriculture, Construction, Material Handling
  • For use with Kuriyama Hoses
Features:
  • N/A
Materials:
  • 304 Stainless Steel Band, Carbon Steel Bolt and Nuts
Part Number Size Range (in.) Band Width (in.) Torque (ft. lbs.) Weight (Lbs.)
TBC-SSC019 21/32" - 3/4" 23/32" 6 ft. Lbs. 0.064 lbs
TBC-SSC022 25/32" - 7/8" 23/32" 6 ft. Lbs. 0.066 lbs
TBC-SSC025 29/32" - 1" 23/32" 6 ft. Lbs. 0.068 lbs
TBC-SSC028 1-1/32" - 1-3/32" 23/32" 6 ft. Lbs. 0.068 lbs
TBC-SSC031 1-5/32" - 1-15/32" 25/32" 7 ft. Lbs. 0.115 lbs
TBC-SSC035 1-1/4" - 1-3/8" 25/32" 7 ft. Lbs. 0.115 lbs
TBC-SSC039 1-3/8" - 1-9/16" 25/32" 7 ft. Lbs. 0.117 lbs
TBC-SSC043 1-5/8" - 1-13/16" 25/32" 7 ft. Lbs. 0.121 lbs
TBC-SSC047 1-3/4" - 1-15/16" 7/8" 10 ft. Lbs. 0.198 lbs
TBC-SSC051 1-7/8" - 2-1/16" 7/8" 10 ft. Lbs. 0.209 lbs
TBC-SSC055 2-1/8" - 2-5/16" 7/8" 10 ft. Lbs. 0.216 lbs
TBC-SSC059 2-1/4" - 2-7/16" 7/8" 10 ft. Lbs. 0.221 lbs
TBC-SSC063 2-3/8" - 2-9/16" 7/8" 10 ft. Lbs. 0.227 lbs
TBC-SSC067 2-17/32" - 2-13/16" 7/8" 10 ft. Lbs. 0.232 lbs
TBC-SSC073 2-21/32" - 2-15/16" 15/16" 17 ft. Lbs. 0.331 lbs
TBC-SSC079 2-29/32" - 3-3/16" 15/16" 17 ft. Lbs. 0.353 lbs
TBC-SSC085 3-1/32" - 3-5/16" 15/16" 17 ft. Lbs. 0.353 lbs
TBC-SSC091 3-9/32" - 3-9/16" 15/16" 17 ft. Lbs. 0.364 lbs
TBC-SSC097 3-17/32" - 3-13/16" 15/16" 17 ft. Lbs. 0.397 lbs
TBC-SSC103 3-25/32" - 4-1/16" 15/16" 17 ft. Lbs. 0.397 lbs
TBC-SSC112 4-1/32" - 4-5/16" 15/16" 17 ft. Lbs. 0.419 lbs
TBC-SSC121 4-17/32" - 4-13/16" 15/16" 17 ft. Lbs. 0.430 lbs
TBC-SSC130 4-25/32" - 5-1/16" 15/16" 17 ft. Lbs. 0.441 lbs
TBC-SSC139 5-9/32" - 5-9/16" 1-1/32" 29 ft. Lbs. 0.644 lbs
TBC-SSC148 5-17/32" - 5-13/16" 1-1/32" 29 ft. Lbs. 0.679 lbs
TBC-SSC161 5-9/32" - 5-9/16" 1-1/32" 29 ft. Lbs. 0.644 lbs
TBC-SSC174 6-17/32" - 6-13/16" 1-1/32" 29 ft. Lbs. 0.723 lbs
TBC-SSC187 6-7/8" - 7-3/8" 1-1/32" 29 ft. Lbs. 0.750 lbs
TBC-SSC200 7-13/32" - 7-7/8" 1-1/32" 29 ft. Lbs. 0.787 lbs
TBC-SSC213 7-29/32" - 8-3/8" 1-1/32" 29 ft. Lbs. 0.809 lbs
TBC-SSC226 8-21/32" - 8-15/16" 1-1/32" 29 ft. Lbs. 0.844 lbs
TBC-SSC239 8-15/16" - 9-13/32" 1-1/32" 29 ft. Lbs. 0.882 lbs
TBC-SSC252 9-7/16" - 9-29/32" 1-1/32" 29 ft. Lbs. 0.919 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
