T902AA300X100 Alfagomma by Kuriyama | High Quality Hot Air Blower Hose | Black | 3" ID | 3.54" OD | 150 PSI | 100ft Length

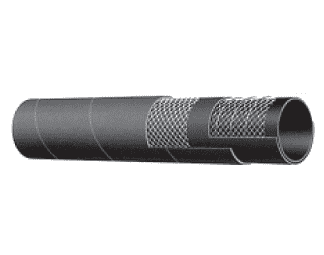

Kuriyama Alfagomma® T902AA Series 150 PSI High Quality Hot Air Blower Hose - Black
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,417.16 |
| 8–14 | $1,356.86 |
| 15+ | $1,206.10 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Hot air transfer between the air compressor and dry bulk tank on bulk material carriers. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black EPDM - heat-resistant. |
| Reinforcement: | Spiralled high tensile textile cords and 4 highly flexible steel helix wires. | Cover: | Black EPDM - heat, abrasion and ozone resistant. |
| Temperature Range: | -40 deg. F (-40 deg. C) to 350 deg. F (+180 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Nominal ID | Nominal OD | Max Rec. Working Pressure | Vacuum | Min. Bend Radius at 68 deg. F | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in. Hg) | (in.) | (ft.) | (lbs./ft.) | |
| T902AA200X100 | 2" | 51mm | 2.48" | 63mm | 150 PSI | 30" | 6" | 100ft | 1.01 lbs |
| T902AA300X100 | 3" | 76mm | 3.54" | 90mm | 150 PSI | 27" | 9" | 100ft | 1.60 lbs |
| T902AA400X100 | 4" | 102mm | 4.65" | 116mm | 150 PSI | 27" | 12" | 100ft | 2.23 lbs |
