T509OE125X100 Alfagomma by Kuriyama | Acid | Chemical S & D | UHMWPE | Blue | 1-1/4" ID | 1.73" OD | 240 PSI | 100ft Length
Kuriyama

T509OE125X100 Alfagomma by Kuriyama | Acid | Chemical S & D | UHMWPE | Blue | 1-1/4" ID | 1.73" OD | 240 PSI | 100ft Length

Sale price$1,362.63

Kuriyama Alfagomma® T509OE Series Acid - Chemical S & D 240 PSI - UHMWPE Meets FDA Requirements Suitable for use with DEF - Blue

Package Quantity: 100 FT

Product Data:

Brand:
  • Alfagomma
Series:
  • T509OE Series
Color(s):
  • Blue

SPECIFICATIONS

Application: Suction and transfer service for a variety of chemicals and acids. Will handle 98% of Existing Chemicals. SAE Rating: N/A

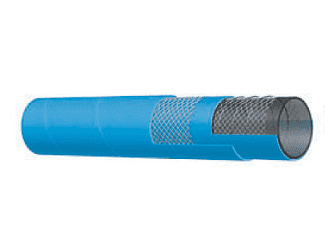

Other Ratings: N/A Tube: Transparent UHMWPE (Ultra High Molecular Weight Polyethylene).
Reinforcement: Synthetic textile cords with 4 highly flexible steel helix wires. Cover: Blue EPDM - abrasion and ozone resistant.
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Literature Chemical Resistance Chart (PDF)
Other Features:
  • Branding:ALFAGOMMA - ITALY T509 16 BAR (240 PSI) - UHMWPE CHEMICAL - S & D (in orange letters)
  • Coupling Suggestions: Quick-Acting and combination nipples, preferably stainless steel, attached with bands.
  • Warning Before using chemical hoses consult chemical resistance chart or consult factory.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Vacuum HG Min. Bending Radius Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (in. at 68 deg. F) (ft.) (lbs./ft.)
T509OE075X100 3/4" 19mm 1.22" 31mm 240 PSI 27" 7-1/2" 100ft 0.41 lbs
T509OE100X100 1" 25mm 1.46" 37mm 240 PSI 27" 9" 100ft 0.50 lbs
T509OE125X100 1-1/4" 32mm 1.73" 44mm 240 PSI 27" 10-1/4" 100ft 0.60 lbs
T509OE150X100 1-1/2" 38mm 1.97" 50mm 240 PSI 27" 13-1/4" 100ft 0.68 lbs
T509OE200X100 2" 51mm 2.48" 63mm 240 PSI 27" 16-1/4" 100ft 0.91 lbs
T509OE250X100 2-1/2" 63mm 3.03" 77mm 240 PSI 27" 17-1/4" 100ft 1.40 lbs
T509OE300X100 3" 76mm 3.62" 92mm 240 PSI 24" 20-3/4" 100ft 1.91 lbs
T509OE400X100 4" 102mm 4.65" 118mm 240 PSI 24" 26-1/2" 100ft 2.61 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
