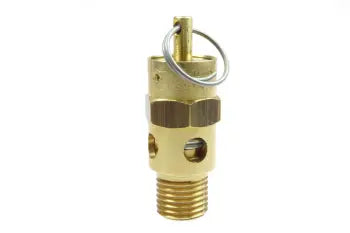

SV200 by Coilhose | ASME-Approved Relief Valve | 200 PSI | 160 SCFM Relief Rate | Brass

SV200 by Coilhose | ASME-Approved Relief Valve | 200 PSI | 160 SCFM Relief Rate | Brass

Sale price$21.01
Coilhose Pneumatics - ASME-Approved Relief Valves
Buy More, Save More!
Quantity Price Each
10–39 $19.75
40–79 $17.86
80+ $15.76
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Brass
Seal Material(s):
  • Silicone
Overview:
  • These ASME-approved Relief Valves help ensure safe operation of your compressor system by guarding against tank over-pressure. Manufactured to rigid quality control guidelines, these Relief Valves are machined from brass bar stock for a long service life and feature a silicon rubber soft seat to ensure a tight, leak free seal. They also meet both ASME/National Board Approval and Canadian Registration.
Features:
  • Protect compressor tanks by quickly releasing excess pressure.
  • Keep pressure relief at a specified setting (particularly important for applications such as air circuitry).
  • Manual pull ring allows for testing and system pressure relief.
  • Each valve is marked with the relief pressure.
  • ASME/National board approval and Canadian Registration.

Body: All brass Spring: Zinc-Plated Steel
Seal: Silicon Rubber Length: 1-3/4"
Hex: 5/8" Thread: 1/4" NPT
Weight: 0.16 lb.

Model Rating Relief Rate (SCFM)
SV070 70 PSI 60 SCFM
SV100 100 PSI 75 SCFM
SV125 125 PSI 105 SCFM
SV200 200 PSI 160 SCFM

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
