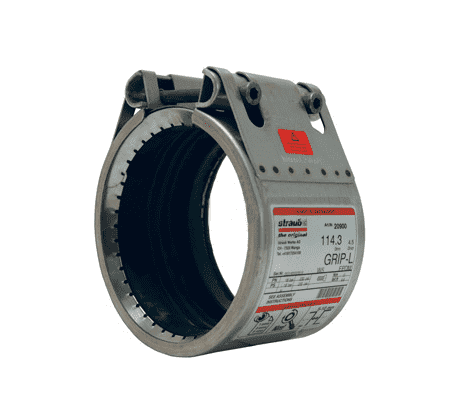

STR20300 Dixon Valve 1-1/2" Stainless Steel Straub Grip-L Axial Restraint Pipe Coupling - 1.90" Actual Pipe OD - 1.88" to 1.92" Pipe OD Range - 440 PSI
Dixon

STR20300 Dixon Valve 1-1/2" Stainless Steel Straub Grip-L Axial Restraint Pipe Coupling - 1.90" Actual Pipe OD - 1.88" to 1.92" Pipe OD Range - 440 PSI

Sale price$284.67

Dixon Pipe & Welding Fittings - Straub Grip-L Axial Restraint Pipe Couplings - Stainless Steel

Product Data:

Material(s):
  • 316Ti Stainless Steel
Seal Material(s):
  • EPDM
Application:
  • Straub Grip-L couplings are suitable particularly for pipes within the lower pressure range.
  • Applications include, but are not limited to: ship building, water and waste water treatment plants and industrial process pipe work.
Features:
  • Joins like or dissimilar pipe materials: steel, galvanized, painted, stainless steel, thin-wall stainless steel, PVC, copper.
  • Requires no special tools or pipe-end preparation; only a torque wrench is required for a secure and safe pipe connection that seldom needs retightening.
  • Highest quality 316 Ti stainless steel construction.
  • Accommodates up to 5 deg. of pipe misalignment.
  • Vary gap between pipe ends.
  • Absorbs vibration, water hammer, and sound.
  • Special patented grip ring for superior holding power on hard-surfaced pipes.
  • 5 year limited warranty.
  • Reusable.
  • Built to ASTM 1476, Type 2, Class 2 specifications.
Specifications:
  • Casing: AISI 316Ti.
  • Screws: AISI 316 L.
  • Bolts: AISI 316 Ti.
  • Anchoring ring: AISI 301.
  • Sealing sleeve: EPDM standard.
  • EPDM sealing sleeve: temperature range - 4 deg. F to 176 deg. F (-20 deg. F to 212 deg. F)
Approvals:
  • American Bureau of Shipping (ABS) up to 232 PSI on 3/4" - 5"; 188 PSI on 6"; 145 PSI on 8"
  • Underwriter's Laboratories (UL).
  • National Sanitation Foundation (NSF).
Safety Notes:
  • All Straub couplings require the correct use of a torque wrench for a safe and proper installation.
  • Straub couplings must be torqued to the specified value as printed on each individual coupling. Failure to do so can result in serious injury or death.
  • Not for steam or refrigerant service.
Dimensions:
Part Number Size Pipe OD Working Pressure Coupling Dimensions Assembled Dimensions Maximum DistanceBetween Pipe EndR Weight(Lbs.)
Actual RangeMin to Max B C DV KV
STR20000 3/4" 1.05" 1.04" to 1.08" 670 PSI 1.8" 0.7" 1.7" 2.8" 0.2" 0.4000
STR20100 1" 1.31" 1.31" to 1.35" 550 PSI 1.8" 0.7" 2" 3" 0.2" 0.4000
STR20300 1-1/2" 1.90" 1.88" to 1.92" 440 PSI 2.4" 1.0" 2.6" 3.9" 0.2" 0.9000
STR20450 2" 2.37" 2.35" to 2.40" 320 PSI 3.0" 1.5" 3.1" 4.3" 0.4" 1.2000
STR20500 2-1/2" 2.87" 2.85" to 2.90" 450 PSI 3.7" 1.6" 3.9" 5.3" 0.4" 2.7000
STR20650 3" 3.50" 3.46" to 3.54" 320 PSI 3.7" 1.6" 4.4" 5.9" 0.4" 2.7000
STR20900 4" 4.50" 4.46" to 4.54" 232 PSI 3.7" 1.6" 5.4" 6.7" 0.4" 3.2000
