SHD2M1 by Dixon Valve | Pneumatic Quick Disconnect Coupling | SHD-Series | 1/8" Male NPT x 1/4" Twist-Lock Interchange | Plug | Steel

Minimum Order Quantity: 5 Units

Sale price$4.87

Dixon Valve & Coupling

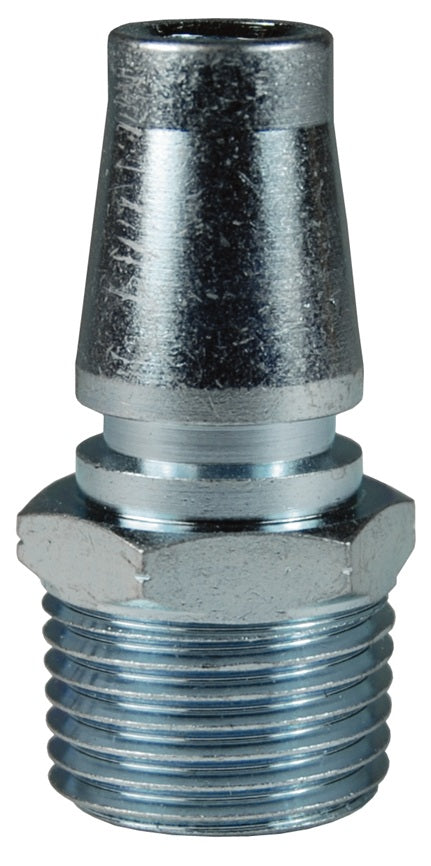

Pneumatic Coupling: SHD-Series Twist-Lock Interchange Plug (Male Threads)

Product Data:

Series:
  • SHD-Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male Schrader QD Interchange
  • 1/8in Male NPTF
Compatibility & Interchange:
  • Schrader Twist-Lock Interchange
  • Parker Twist-Lock, Tomco Series-TL, Foster SHD
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:

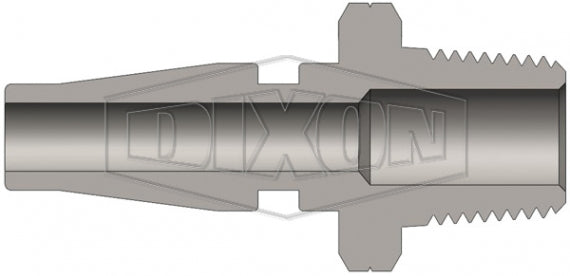

SHD-Series | Twist-Lock Interchange Plug (Male Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Max. Operating
Pressure		 Burst Pressure
SHD2M1 Plug/Male 1/4" 1/8" - 27 Male NPT Steel 1.54"
(39.1mm)		 0.79"
(20.1mm)		 11/16" 300 PSI
(20 bar)		 6500 PSI
(448 bar)
SHD2M2 Plug/Male 1/4" 1/4" - 18 Male NPT Steel 1.72"
(43.7mm)		 0.79"
(20.1mm)		 11/16" 300 PSI
(20 bar)		 6500 PSI
(448 bar)
SHD4M3 Plug/Male 1/2" 3/8" - 18 Male NPT Steel 1.81"
(46.0mm)		 1.01"
(25.7mm)		 7/8" 300 PSI
(20 bar)		 13400 PSI
(924 bar)
SHD4M4 Plug/Male 1/2" 1/2" - 14 Male NPT Steel 1.87"
(47.5mm)		 1.01"
(25.7mm)		 7/8" 300 PSI
(20 bar)		 13400 PSI
(924 bar)
SHD-Series | Twist-Lock Interchange Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Burst
Pressure
2SHDM2 Socket/Female 1/4" 1/4" - 18 Male NPT Aluminium 2.22"
(56.4mm)		 1.12"
(28.4mm)		 11/16" 300 PSI
(20 bar)		 6500 PSI
(448 bar)
2SHDM3 Socket/Female 1/4" 3/8" - 18 Male NPT Aluminium 2.28"
(57.9mm)		 1.12"
(28.4mm)		 11/16" 300 PSI
(20 bar)		 6500 PSI
(448 bar)
4SHDM3 Socket/Female 1/2" 3/8" - 18 Male NPT Aluminium 2.55"
(64.8mm)		 1.50"
(38.1mm)		 1-1/8" 300 PSI
(20 bar)		 13400 PSI
(924 bar)
4SHDM4 Socket/Female 1/2" 1/2" - 14 Male NPT Aluminium 2.61"
(66.3mm)		 1.50"
(38.1mm)		 1-1/8" 300 PSI
(20 bar)		 13400 PSI
(924 bar)
