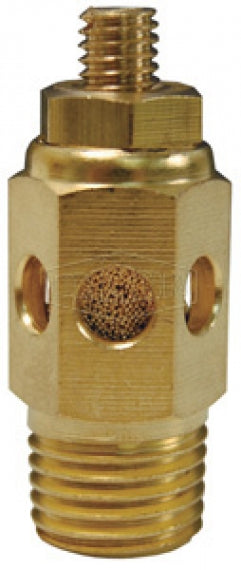

SCM48 by Dixon Valve | Pneumatic Speed Control Muffler | 1/2" Male NPT | 103 SCFM Max. Adjusted Flow | Brass

SCM48 by Dixon Valve | Pneumatic Speed Control Muffler | 1/2" Male NPT | 103 SCFM Max. Adjusted Flow | Brass

Sale price$24.07



Speed Control Mufflers provide an infinite variation of metering air flow at an acceptable sound level on exhaust ports of air valves with complete safety. The speed of an operating cylinder or air tool may be increased or decreased with the adjusting screw. The final position is then locked in place by the lock nut. Objectionable exhaust air noise is eliminated by the surrounding sleeve of sintered bronze. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

In stock
Buy More, Save More!
Quantity Price Each
10–39 $22.63
40–79 $20.46
80+ $18.05
Discounts applied in cart/checkout.

Product Data:
Features:
  • Safe and infinite variations of metering air flow at acceptable sound levels on exhaust ports of air valves.
  • Speed of operating cylinder or air tool may be increased or decreased with adjusting screw; the final position is locked in place by the lock nut.
  • Exhaust air noise is eliminated by a surrounding sleeve of sintered bronze.
  • Element: 40 micron sintered bronze.
Specifications:
  • Maximum operating pressure: 300 PSI
  • Temperature range: 35 °F to 300 °F (2 °C to 149 °C)
Brass
Part Number		 NPT Thread Approximate
Full Operating
Height		 Maximum
Adjusted
SCFM
SCM18 1/8" 1-5/16" 30 SCFM
SCM28 1/4" 1-9/16" 40 SCFM
SCM38 3/8" 1-5/8" 62 SCFM
SCM48 1/2" 2" 103 SCFM
SCM68 3/4" 2-3/8" 110 SCFM
SCM88 1" 2-1/2" 140 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
