S1004SI by ZSi-Foster | Weld Mount Beta Clamp | Standard Series | For 1/4" Tube | Cap Screw Assembly | Polypropylene/Steel

S1004SI by ZSi-Foster | Weld Mount Beta Clamp | Standard Series | For 1/4" Tube | Cap Screw Assembly | Polypropylene/Steel

Minimum Order Quantity: 5 Units

Sale price$7.27

ZSI-Foster
Beta Hydraulic Clamps - Standard Series - Weld Mount - Cap Screw Assembly - Polypropylene / Steel

- Cushions are Polypropylene (Green Color).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Buy More, Save More!
Quantity Price Each
20–39 $6.83
40–79 $6.18
80+ $5.45
Discounts applied in cart/checkout.

Product Data:

Series:
  • Standard Series
Maximum Clamp I.D.:

0.25"
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:

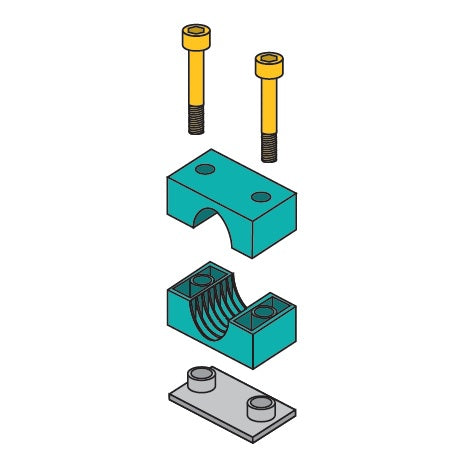

Assembly Includes:
Quantity Description
2 Each Cap Screws
1 Set Cushions
1 Each Weld Plate
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
- S1007SI 1/8" 1-1/4"
S1004SI S2009SI 1/4" Tube: 1-1/4"
Pipe: 1-3/8"
S1006SI S2011SI 3/8" Tube: 1-1/4"
Pipe: 1-3/8"
S2008SI S3014SI 1/2" Tube: 1-3/8"
Pipe: 1-1/2"
S2010SI - 5/8" 1-3/8"
S3012SI S4017SI 3/4" Tube: 1-1/2"
Pipe: 1-3/4"
S3015SI - 7/8" 1-1/2"
S3016SI S5021SI 1" Tube: 1-1/2"
Pipe: 2-1/2"
S4018SI - 1-1/8" 1-3/4"
S5020SI S5027SI 1-1/4" 2-1/2"
S5024SI S6030SI 1-1/2" Tube: 2-1/2"
Pipe: 2-3/4"
S6028SI - 1-3/4" 2-3/4"
S6032SI S7038SI 2" Tube: 2-3/4"
Pipe: 4"
S7036SI - 2-1/4" 4"
S7040SI - 2-1/2" 4"
