S1004C-AL by ZSi-Foster | Beta Clamp | Standard Series | For 1/4" Tube | Cushion Body ONLY | Aluminum

S1004C-AL by ZSi-Foster | Beta Clamp | Standard Series | For 1/4" Tube | Cushion Body ONLY | Aluminum

Sale price$9.85

ZSI-Foster

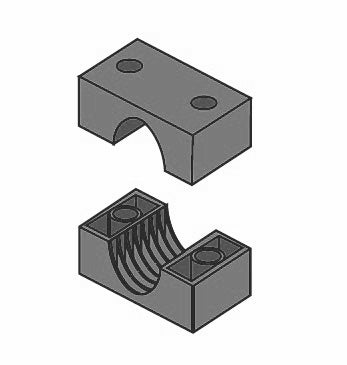

Beta Hydraulic Clamps - Standard Series - Cushion Body Only - Aluminum

- Aluminum cushions and are used in higher heat applications up to 500°F (260°C).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Buy More, Save More!
Quantity Price Each
10–39 $9.26
40–79 $8.37
80+ $7.39
Discounts applied in cart/checkout.

Product Data:

Series:
  • Standard Series
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Cushion: Aluminum
Installation:
Cushion Body for:
Tube
Part Number		 Pipe
Part Number		 Size
- S1007C-AL 1/8"
S1004C-AL S2009C-AL 1/4"
S1006C-AL S2011C-AL 3/8"
S2008C-AL S3014C-AL 1/2"
S2010C-AL - 5/8"
S3012C-AL S4017C-AL 3/4"
S3015C-AL - 7/8"
S3016C-AL S5021C-AL 1"
S4018C-AL - 1-1/8"
S5020C-AL S5027C-AL 1-1/4"
S5024C-AL S6030C-AL 1-1/2"
S6028C-AL - 1-3/4"
S6032C-AL S7038C-AL 2"
S7036C-AL - 2-1/4"
