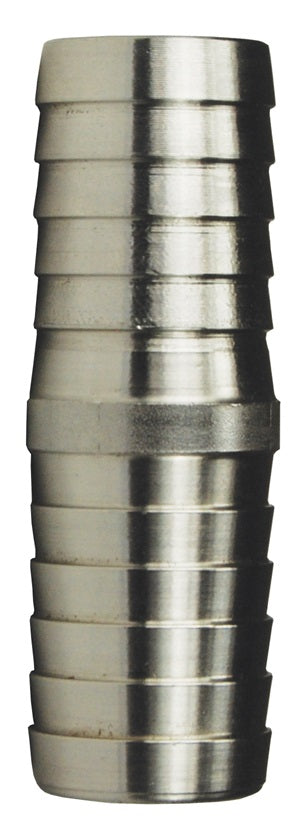

RM6 by Dixon Valve | Short Shank Mender/Splicer | 3/4" Hose ID x 3/4" Hose ID | 2-1/2" Length | 316 Stainless Steel

RM6 by Dixon Valve | Short Shank Mender/Splicer | 3/4" Hose ID x 3/4" Hose ID | 2-1/2" Length | 316 Stainless Steel

Sale price$34.12

Dixon Valve
Short Shank Mender/Splicer | Hose Barb x Hose Barb
Buy More, Save More!
Quantity Price Each
10–39 $32.07
40–79 $29.00
80+ $25.59
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Hose Barb
  • 3/4in Hose Barb
  • Some Ends Match
Material(s):
  • 316 Stainless Steel
Safety Notes:
  • Menders are not for compressible products such as air, nitrogen or steam.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instructions on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
316 Stainless Steel
Part Number		 Previous
Part Number		 Size Length
RM2 1780404SS 1/4" 2-1/32"
RM3 1780606SS 3/8" 2-1/16"
RM4 1780808SS 1/2" 2-1/16"
RM6 1781212SS 3/4" 2-1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
