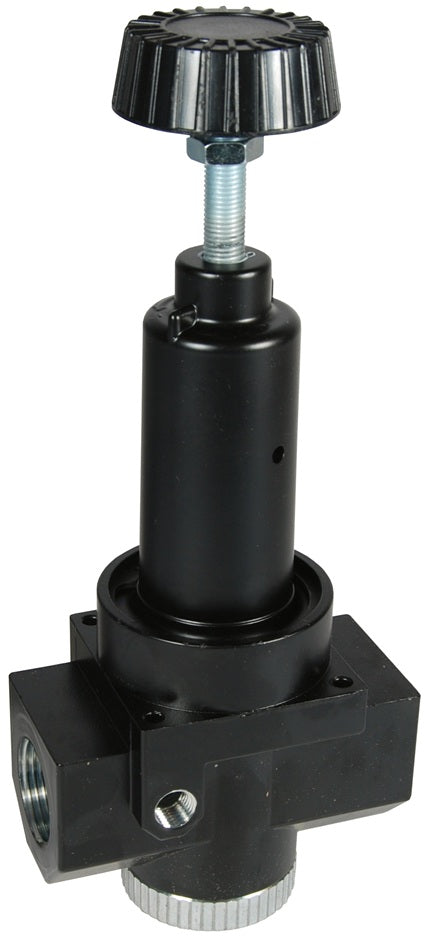

R30-08RH Wilkerson by Dixon Valve | R30-Series | High Pressure High Flow Regulator | 1" Size | 500 SCFM | without Gauge | 0-180 PSI Adjusting Range

R30-08RH Wilkerson by Dixon Valve | R30-Series | High Pressure High Flow Regulator | 1" Size | 500 SCFM | without Gauge | 0-180 PSI Adjusting Range

Sale price$276.72

Dixon Valve
Wilkerson | R30-Series | High Pressure High Flow Regulators

0-180 PSI adjusting range.
Buy More, Save More!
Quantity Price Each
5–14 $260.12
15–29 $235.21
30+ $207.54
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Wilkerson
Series:
  • R30-Series
Features:
  • Self-relieving standard.
  • Piston operated.
  • Can be installed with the adjusting knob in any position.
  • To increase regulated pressure, pull adjusting knob up and turn clockwise, to reduce pressure, turn knob counter clockwise.
  • Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports.
  • Models supplied without gauge use a GC240 gauge.
Specifications:
  • FRL's are designed for air service only, unless otherwise indicated.
  • Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°C to 66°C)
  • SCFM ratings at 100 PSIG inlet pressure
Dimensions:
Part Number
With Gauge		 Part Number
Without Gauge		 Size Flow (SCFM)
R30-06RHG R30-06RH 3/4" 481 SCFM
R30-08RHG R30-08RH 1" 500 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
