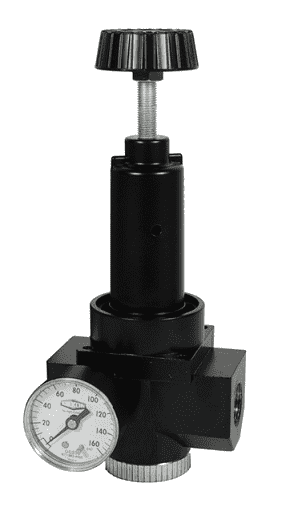

R30-06RG Dixon Valve Wilkerson 3/4" High Flow Regulator with Gauge - 480 SCFM
Dixon

R30-06RG Dixon Valve Wilkerson 3/4" High Flow Regulator with Gauge - 480 SCFM

Sale price$363.25

Wilkerson High Flow Regulators On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Product Data:
Features:
  • 0-125 PSI adjusting range.
  • Self-relieving standard.
  • Piston operated.
  • Can be installed with the adjusting knob in any position
  • To increase regulated pressure, pull adjusting knob up and turn clockwise. To reduce pressure, turn knob counter clockwise.
  • Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports.
  • Models supplied without gauge use a GC230 gauge.
Part Number Size SCFM PSI Min/Max Temp Weight (Lbs.)
With Gauge
R30-06RG 3/4" 480 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 5.9700
R30-08RG 1" 5000 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 5.7400
R30-0ARG 1-1/4" 800 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 5.3000
Without Gauge
R30-06R 3/4" 480 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 5.9500
R30-08R 1" 500 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 5.7200
R30-0AR 1-1/4" 800 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 5.2800

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
