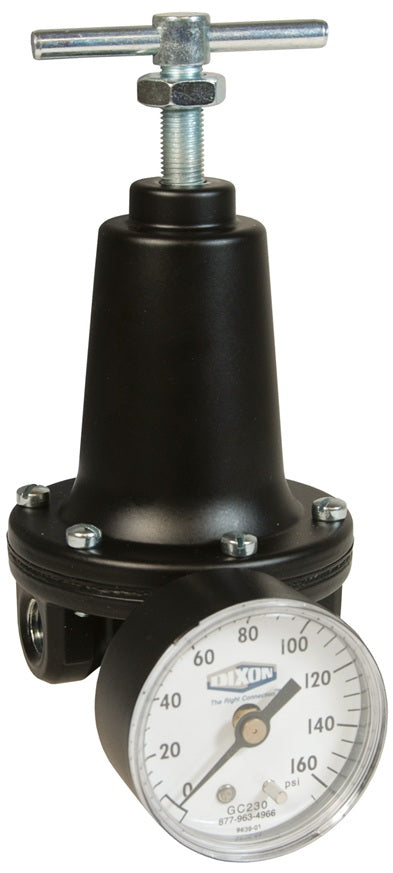

R119-04CG Watts by Dixon Valve | R119-Series | Standard Regulator | 1/2" Size | 150 SCFM | with Gauge | 2 - 125 PSIG Pressure Range

R119-04CG Watts by Dixon Valve | R119-Series | Standard Regulator | 1/2" Size | 150 SCFM | with Gauge | 2 - 125 PSIG Pressure Range

Sale price$169.06

Dixon Valve
Watts | R119-Series | Standard Regulator

Pressure Range: 2 - 125 PSIG (.15 - 8.5 bar)

For air service only.
Buy More, Save More!
Quantity Price Each
5–19 $158.92
20–59 $143.70
60+ $126.80
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Watts
Series:
  • R119-Series
Features:
  • Zinc body
  • Relieving type
  • Diaphragm operated
  • Spring adjustment mechanism
  • T-handle design
  • Brass bottom plug
  • Aluminum spring cage
  • Uses a GC230 gauge
Specifications:
  • Pressure range 2 - 125 PSIG (.15 - 8.5 bar)
  • Inlet pressure: 300 PSIG (20.4 bar) maximum
  • Temperature range: 40°F (4°C) to 120°F (49°C)
  • SCFM ratings given at 100 PSIG inlet pressure.
  • FRL's are designed for air service only, unless otherwise indicated.
Dimensions:
Part Number
With Gauge		 Part Number
Without Gauge		 Size Flow (SCFM)
R119-02CG R119-02C 1/4" 100 SCFM
R119-03CG R119-03C 3/8" 110 SCFM
R119-04CG R119-04C 1/2" 150 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
