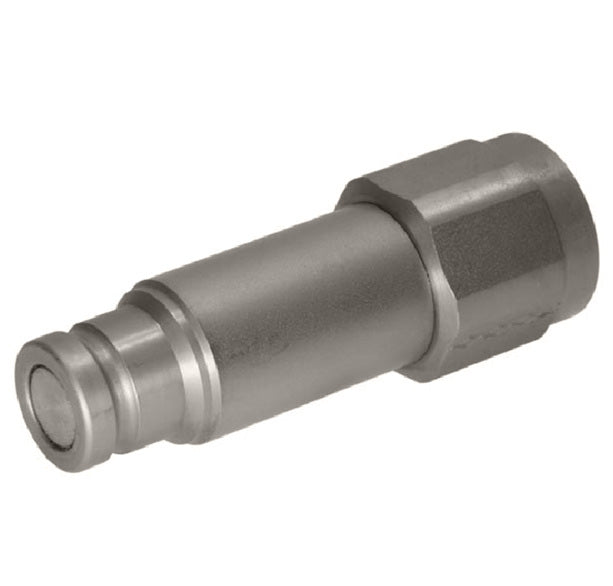

QC-CPFF12-M-12S by Couplamatic | Hydraulic Quick Coupler | CPFF Series | Connect Under Pressure Flat Face | 1/2" Body Size x 1-1/16x12 Female SAE | Plug | Zinc Nickel Plated
Couplamatic

QC-CPFF12-M-12S by Couplamatic | Hydraulic Quick Coupler | CPFF Series | Connect Under Pressure Flat Face | 1/2" Body Size x 1-1/16x12 Female SAE | Plug | Zinc Nickel Plated

Sale price$83.30

Couplamatic Inc
Hydraulic Quick Couplers - CPFF Series - Connect Under Pressure Flat Face Couplers

Product Data:

Series:
  • CPFF Series
Shape:

Straight
Features:
  • CPFF Series Flat Face Couplers are designed to connect under pressure (male half) by hand up to 5075 PSI (350 bar).
  • Connect to the FF Series Female couplers.
  • Prevents fluid loss during disconnection and allows minimal inclusion of contaminants during connection.
  • Couplers have nitrile seals and are zinc nickel plated for higher corrosion resistance.
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Industrial
  • Agriculture
  • Mining
  • Leak Free Environments
  • High Pressure Pulse
  • Hammer Circuits
Part Number Body Size Body Size (ISO) Coupler Gender Thread Size Working Pressure Coupled Burst Male Burst "A" Length
QC-CPFF12-M-08N 1/2" 12 Male 1/2-14 NPT 5075 PSI 17400 PSI 21750 PSI 4.1"
QC-CPFF12-M-12N 1/2" 12 Male 3/4-14 NPT 5075 PSI 17400 PSI 21750 PSI 4.1"
QC-CPFF12-M-08S 1/2" 12 Male 3/4x16 SAE 5075 PSI 17400 PSI 21750 PSI 4.1"
QC-CPFF12-M-10S 1/2" 12 Male 7/8x14 SAE 5075 PSI 17400 PSI 21750 PSI 4.1"
QC-CPFF12-M-12S 1/2" 12 Male 1-1/16x12 SAE 5075 PSI 17400 PSI 21750 PSI 4.1"
