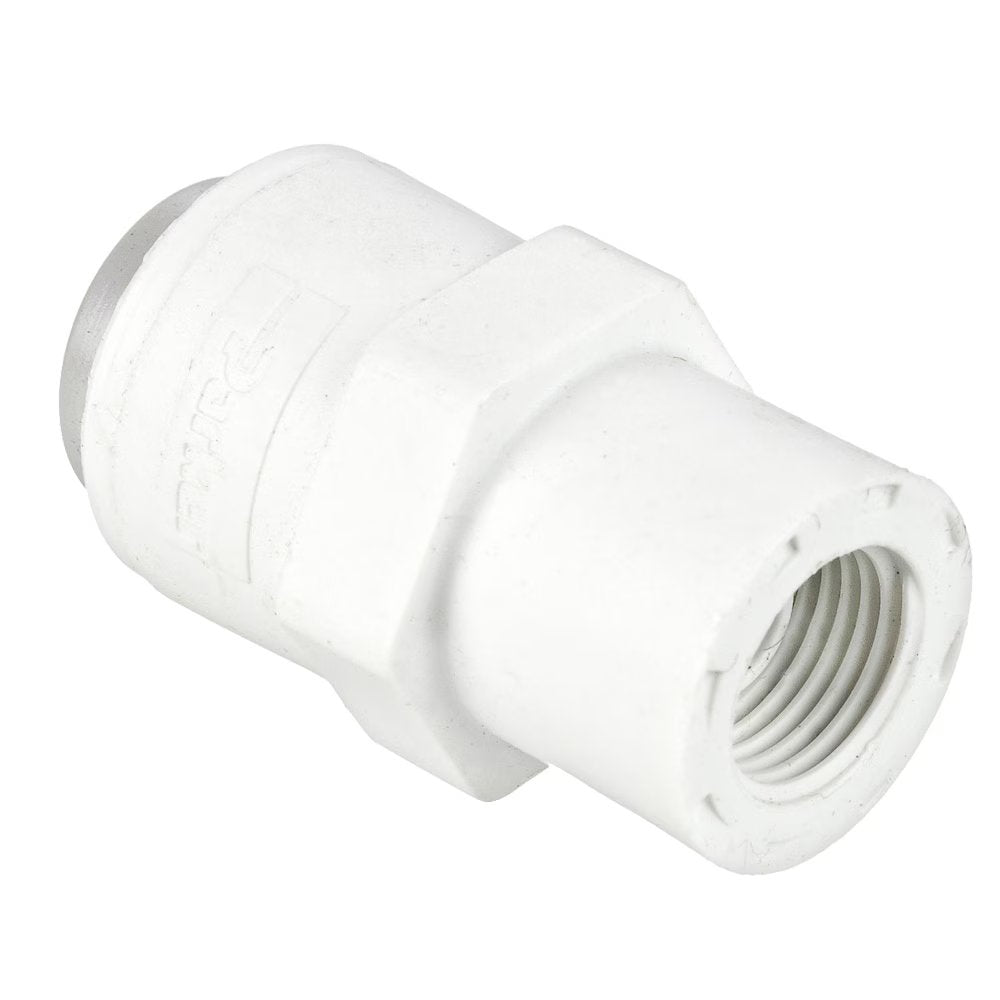

PP4FA7 by Parker | TrueSeal™ Threaded Fittings | 1/4" Faucet Adapter x 7/16-24" UNS-2B Thread | 1.32" Length | Straight | White | Polypropylene

PP4FA7 by Parker | TrueSeal™ Threaded Fittings | 1/4" Faucet Adapter x 7/16-24" UNS-2B Thread | 1.32" Length | Straight | White | Polypropylene

Sale price$7.67

by Parker Hannifin
TrueSeal™ Fittings:FA - Faucet Adapter
Buy More, Save More!
Quantity Price Each
20–39 $7.21
40–79 $6.52
80+ $5.75
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TrueSeal™
Series:
  • FA Series
Shape:

Straight
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. UNS-2B Thread Size Hex (C) Overall Length (L) Flow Diameter (D)
    A4FA7-MG PPB4FA7-MG PP4FA7 FB4FA7-HBLK 1/4" 7/16-24" 23/32" 1.32" .190"
    A5FA7-MG - - - 5/16" 7/16-24" 13/16" 1.41" .190"
    A6FA7-MG PPB6FA7-MG PP6FA7 FB6FA7-HBLK 3/8" 7/16-24" 13/16" 1.41" .190"
