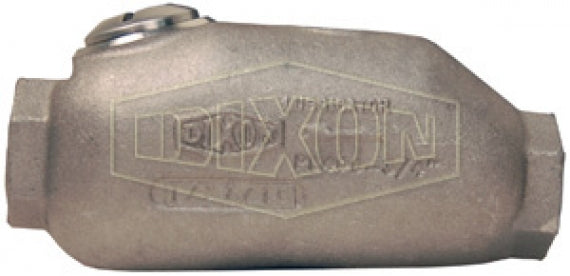

PL400 by Dixon Valve | Pneumatic In-Line Lubricator | 3/4" Female NPT | 200 PSI | 70 SCFM Air Flow | 3.7 fluid ozs. | Aluminum
Dixon

PL400 by Dixon Valve | Pneumatic In-Line Lubricator | 3/4" Female NPT | 200 PSI | 70 SCFM Air Flow | 3.7 fluid ozs. | Aluminum

Sale price$120.01

In-Line Lubricators On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F.

Product Data:
Use:
  • Type of oil to use: any petroleum-based, non-detergent lightweight oil (SAE 10/150SSU) which will readily break up into a mist, i.e., Mobil DTE light or comparable oil.
  • Do not use any synthetic oil or oils containing additives or solvents.
Features:
  • Transparent sight disc allows visual inspection of oil level.
  • Oil flow regulated by screwdriver screw adjustment.
  • Minimum flow rate is 30 SCFM.
Material:
  • Aluminum
Installation:
  • Installation is recommended within 25 feet of the tool to be lubricated.
  • Refer to the arrow for proper air flow direction.
Safety Notes:
  • For reciprocating tools only.
  • Not recommended for constant flow applications.
Aluminum
Part Number		 NPT Size Oil Capacity Maximum Working
Pressure at Ambient
Temperature (70 °F)		 Air Flow at
70 PSI
PL300 1/2" 1.4 fluid ozs. 500 PSI 30 SCFM
PL400 3/4" 3.7 fluid ozs. 200 PSI 70 SCFM
PL400L 3/4" 11.0 fluid ozs. 300 PSI 70 SCFM
PL500 1" 16.0 fluid ozs. 250 PSI 100 SCFM
Replacement Parts
Part Number Diagram Part Description
851661 A Oil Adjustment Valve Assembly
452531 B Valve Gasket
452525 C Fill Plug
700013-214 D Fill Plug O-Ring
452532 E Sight Disk
700013-016 F Sight Disk Seal
452533 G Sight Disk Lock Nut
