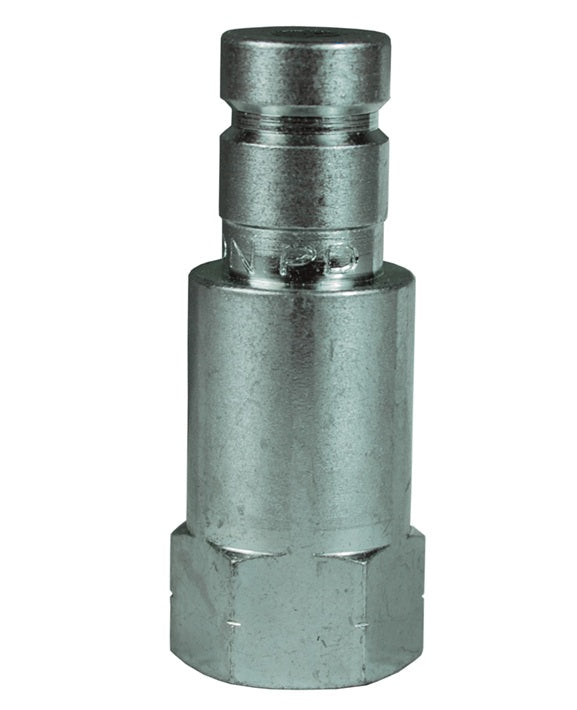

Hydraulic Coupling: PD-Series ISO15171-1 Diagnostic Plug (Female Threads)
Buy More, Save More!
Quantity Price Each
10–39 $10.73
40–79 $9.71
80+ $8.57
Discounts applied in cart/checkout.

Product Data:

Series:
  • PD Series
Shape:

Straight

Ends Configuration:
  • 1/8in Male ISO-15171 Diagnostic QD Interchange
  • 1/4in Female NPTF
Compatibility & Interchange:
  • Interchangeable to ISO15171-1
  • Parker PD-Series, Danfoss/Eaton/Aeroquip FD90
Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Steel plugs are machined from solid steel bar stock and hardened.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • PTFE anti-extrusion ring protects main coupler O-ring from dynamic impulse pressure damage.
Additional Information:
PD-Series | ISO15171-1 Diagnostic Interchange Rated Pressure Chart
Body Size Steel Coupler/Plug Coupled Steel Plug Disconnected
Max.
Working		 Burst Max.
Working		 Burst
1/8" 6,000 PSI
400 Bar		 18,700 PSI
1,300 Bar		 6,000 PSI
400 Bar		 24,000 PSI
1,600 Bar
PD-Series | ISO15171-1 Diagnostic Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
PD1F1 Plug/Male 1/8" 1/8" - 27 Female NPT Steel 1.88"
(47.7mm)		 0.76"
(19.3mm)		 17"
PD1F2 Plug/Male 1/8" 1/4" - 18 Female NPT Steel 1.88"
(47.7mm)		 0.76"
(19.3mm)		 17"
PD-Series | ISO15171-1 Diagnostic Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex
1PDF1 Socket/Female 1/8" 1/8" - 27 Female NPT Steel 2.13"
(54.1mm)		 0.98"
(24.8mm)		 21"
1PDF2 Socket/Female 1/8" 1/4" - 18 Female NPT Steel 2.13"
(54.1mm)		 0.98"
(24.8mm)		 21"
