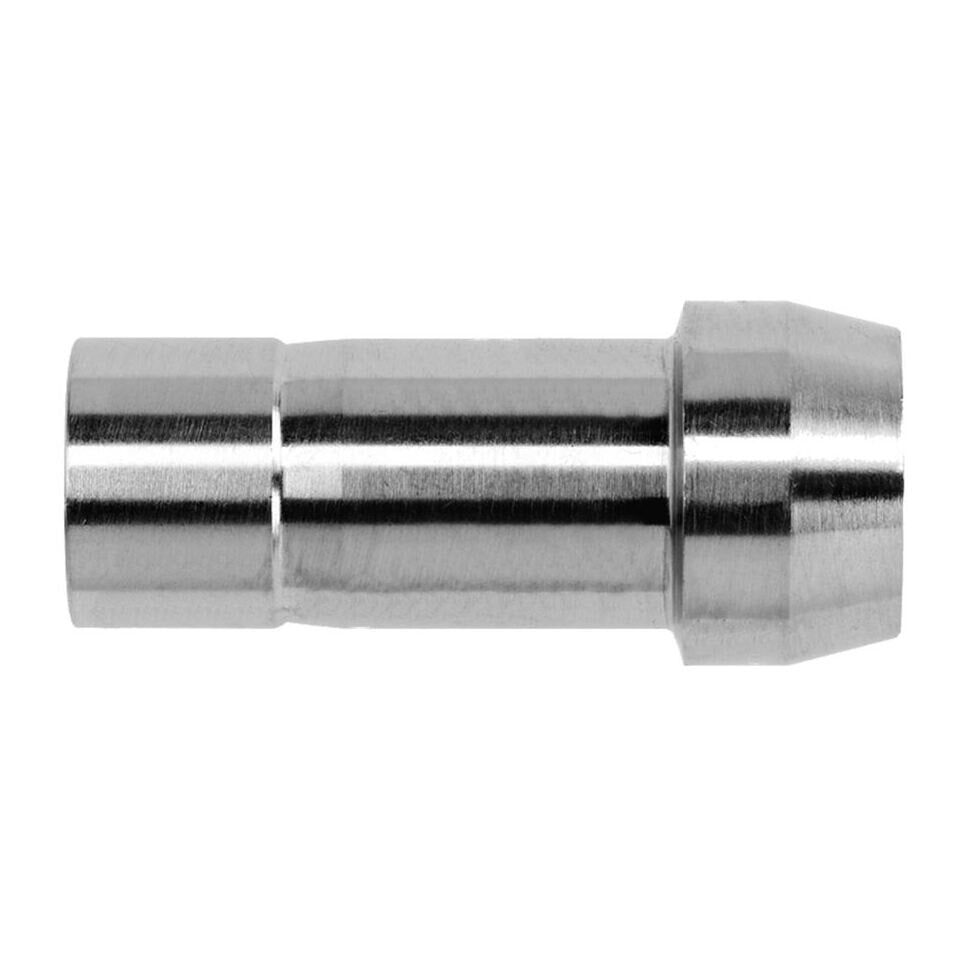

N2440-06-04-SS by Brennan Inc. | -06 Stand Pipe x -04 Ferrule Port Connector | Straight | Stainless Steel

N2440-06-04-SS by Brennan Inc. | -06 Stand Pipe x -04 Ferrule Port Connector | Straight | Stainless Steel

Sale price$23.87

Brennan Inc.
Double Ferrule Tube Fittings: N2440 - Stand Pipe x Ferrule Port Connector Straight
Buy More, Save More!
Quantity Price Each
10–39 $22.44
40–79 $20.29
80+ $17.90
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Stainless Steel
Part Number Material T Tube OD Tx Reduced Tube OD B BX E Min. H J
N2440-04-02-B Brass 1/4" 1/8" 13.5mm 3.3 2.3mm 22.6mm 9.5mm
N2440-04-04-B Brass 1/4" - 18.90mm - 4.8mm 24.7mm 9.5mm
N2440-06-06-B Brass 3/8" - 20.40mm - 7.1mm 26.2mm 12.5mm
N2440-02-02-SS Stainless Steel 1/8" - 15.70mm - 2.3mm 22.3mm 6.0mm
N2440-04-02-SS Stainless Steel 1/4" 1/8" 13.5mm 3.3mm 2.3mm 22.6mm 9.5mm
N2440-04-04-SS Stainless Steel 1/4" - 18.90mm - 4.8mm 24.7mm 9.5mm
N2440-06-02-SS Stainless Steel 3/8" 1/8" 13.5mm 3.8mm 2.3mm 23.1mm 12.5mm
N2440-06-04-SS Stainless Steel 3/8" 1/4" 15.7mm 3.3mm 4.8mm 24.8mm 12.5mm
N2440-06-06-SS Stainless Steel 3/8" - 20.40mm - 7.1mm 26.2mm 12.5mm
N2440-08-04-SS Stainless Steel 1/2" 1/4" 15.7mm 3.8mm 4.8mm 29.4mm 15.8mm
N2440-08-08-SS Stainless Steel 1/2" - 26.00mm - 9.9mm 35.9mm 15.8mm
N2440-12-08-SS Stainless Steel 3/4" 1/2" 23.1mm 3.8mm 9.9mm 36.6mm 22.0mm
N2440-12-12-SS Stainless Steel 3/4" - 27.70mm - 15.0mm 37.4mm 22.0mm
N2440-16-08-SS Stainless Steel 1" 1/2" 24.4mm 4.8mm 9.9mm 42.6mm 28.2mm
N2440-16-12-SS Stainless Steel 1" 3/4" 25.9mm 4.1mm 15.0mm 43.4mm 28.2mm
N2440-16-16-SS Stainless Steel 1" - 34.50mm - 20.3mm 47.9mm 28.2mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
